Yamaha 255XE 2021 - Screen Tab Bar

Instrument operation
45
If the multi-function display unit is turned on while the engines are stopped, the display unit
will enter the float mode.
When the multi-function display unit is in the float mode, the following items are different than
they are in the running mode.

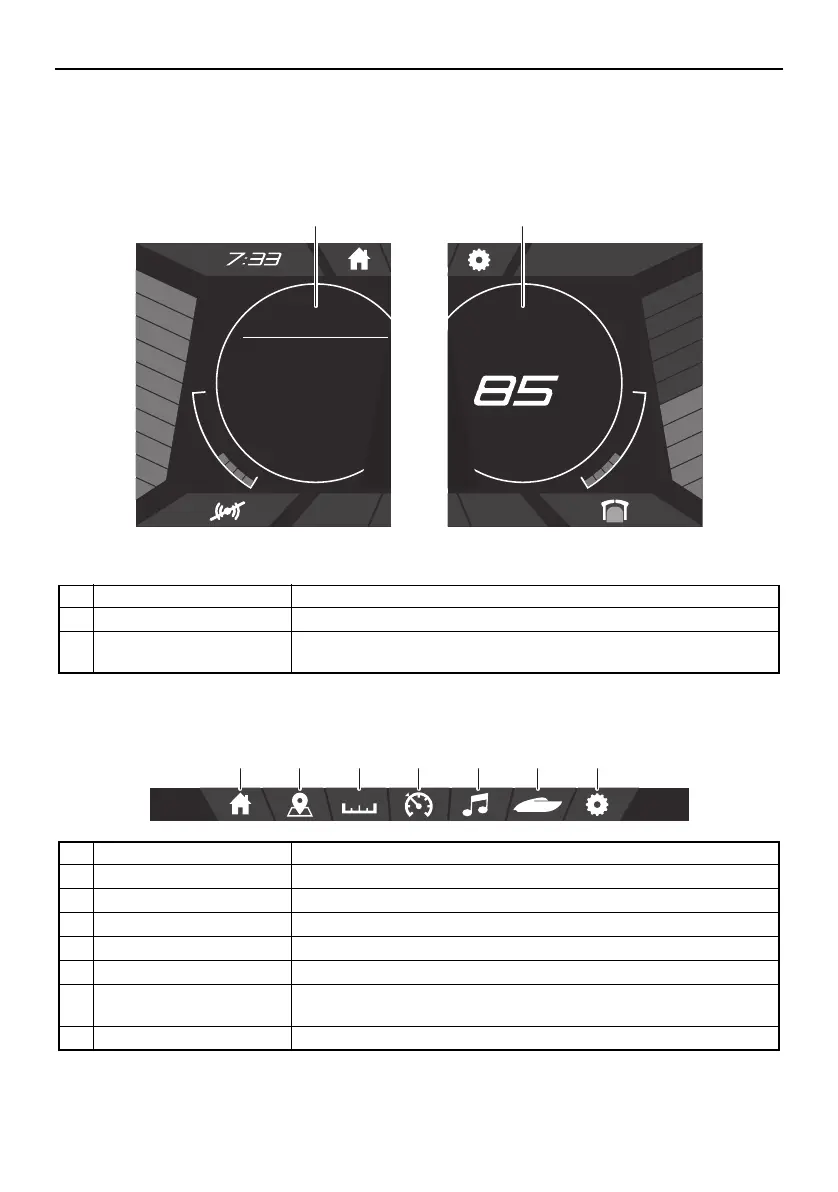

Screen tab bar
Name Function
1 Audio system function Shows the selected function of the audio system.
2 Water temperature Shows the ambient water temperature in degrees Fahrenheit or
degrees Celsius.
Bilge
B
FM Radio
Her By
107.7 MHz
9
19
START
V 13.0
FUEL
% 100
Anchor
FLOAT MODE
DEPTH
ft .8 9
Water Temp
°F
9
19
HOUSE
V 13.0
1 2
Name Function
1 Home screen tab Displays the home screen. (See page 48.)
2 Map screen tab Displays the map screen. (See page 48.)
3 Trip screen tab Displays the trip screen. (See page 52.)
4 Drive control screen tab Displays the drive control screen. (See page 53.)
5 Media screen tab Displays the media screen. (See page 54.)
6 System control screen
tab
Displays the system control screen. (See page 57.)
7 Setting screen tab Displays the setting screen. (See page 58.)
4321 5 6 7
