Basic components
EMU25795
Main components
NOTE:
* May not be exactly as shown; also may not be included as standard equipment on all mod-
els.
40VMHO, 40YMHO, 50HMHO
1
2
3
4
5
6
7
16
8
9
10
11
12
13
14
15

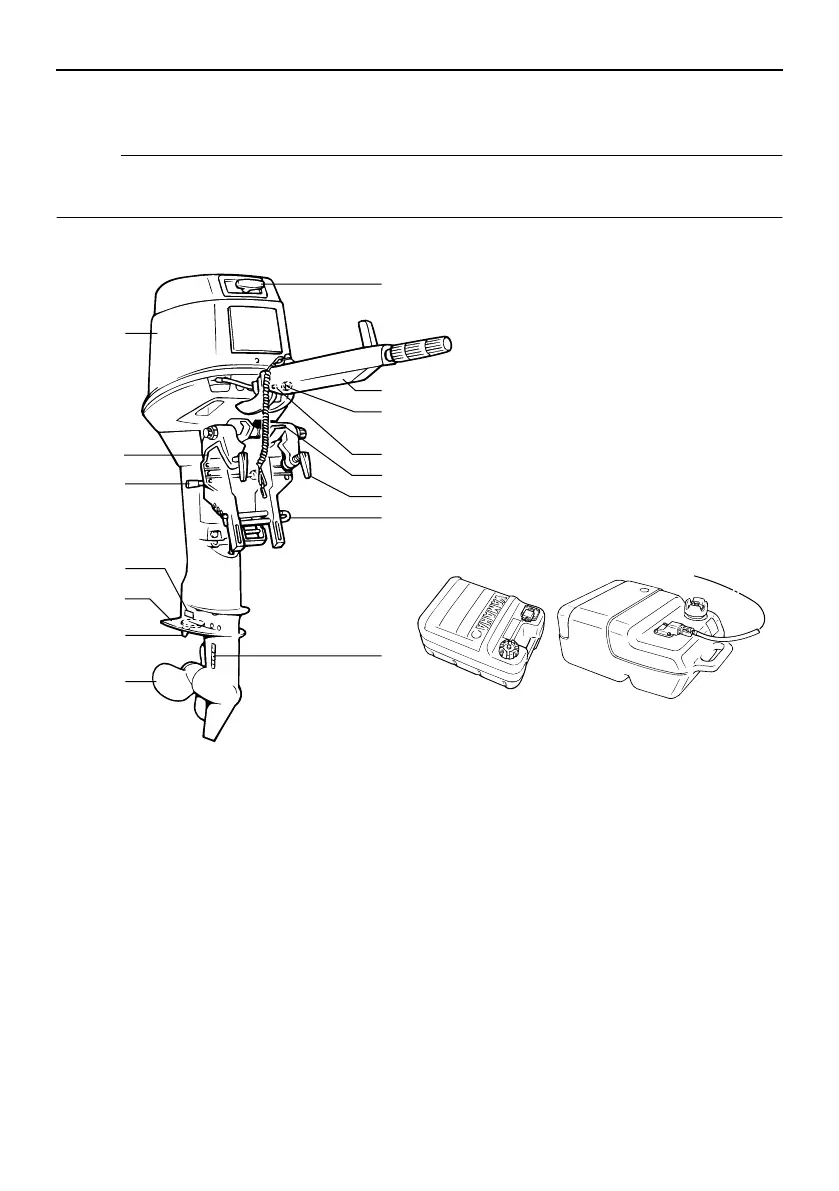

ZMU03344
1. Manual starter handle
2. Tiller handle
3. Choke knob
4. Warning indicator
5. Tilt lock lever
6. Clamp screw
7. Trim rod
8. Cooling water inlet
9. Propeller
10. Trim tab (anode)
11. Anti-cavitation plate
12. Anode
13. Tilt support lever
14. Clamp bracket
15. Top cowling
16. Fuel tank*
