Operation
42

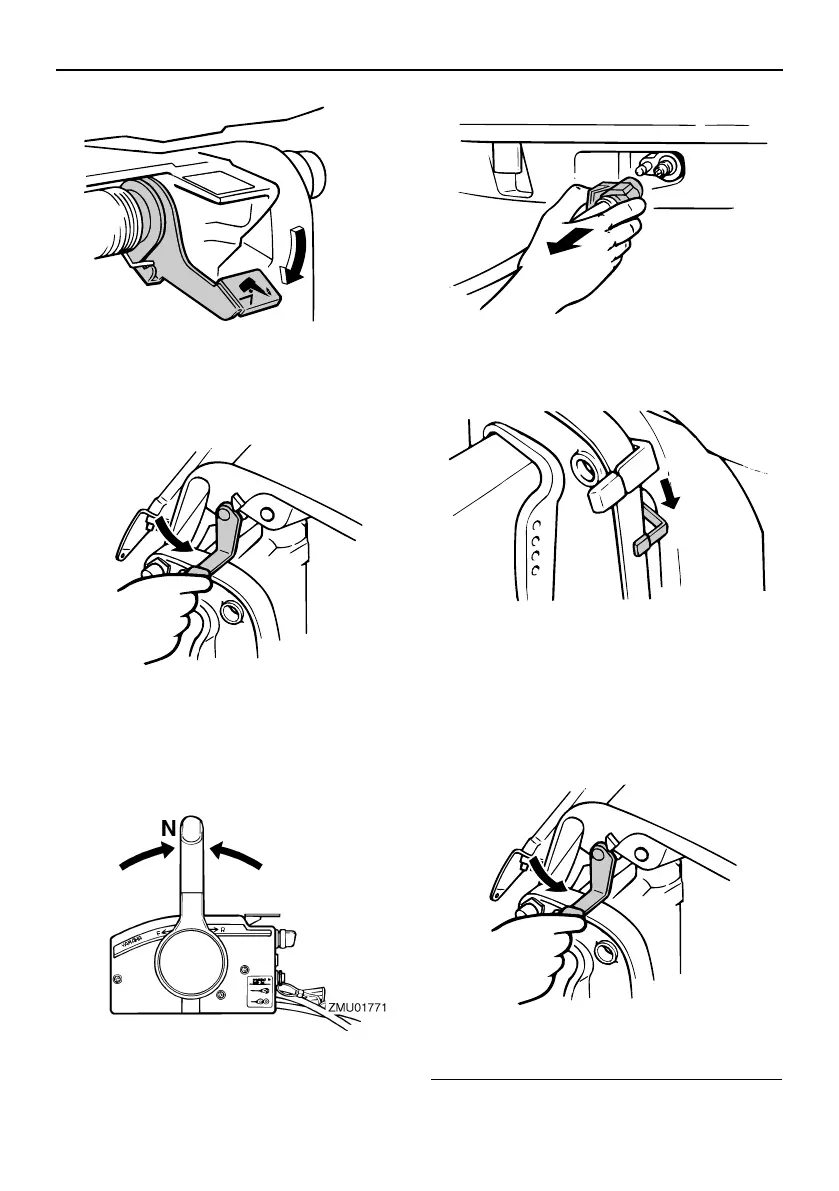

4. Hold the rear of the top cowling with one
hand, tilt the engine up, and turn the tilt
support lever to the lock position and
support the engine.
EMU27995
Procedure for tilting up (hydro tilt
models)
1. Place the remote control lever / gear
shift lever in neutral.
2. Disconnect the fuel line from the out-
board motor.
3. Place the tilt lock lever in the release po-
sition.
4. Hold the rear of the top cowling with one
hand, tilt the engine up, and turn the tilt
support lever toward you or tilt support
knob into the clamp bracket, and then
place the tilt lock lever back into the lock
position to support the outboard motor.
EMU28005
Procedure for tilting up
Power trim and tilt models / power tilt models
ZMU03405
ZMU03114
ZMU03108
ZMU03118
ZMU03114
To Next Page
