Basic components
17
EMU26290

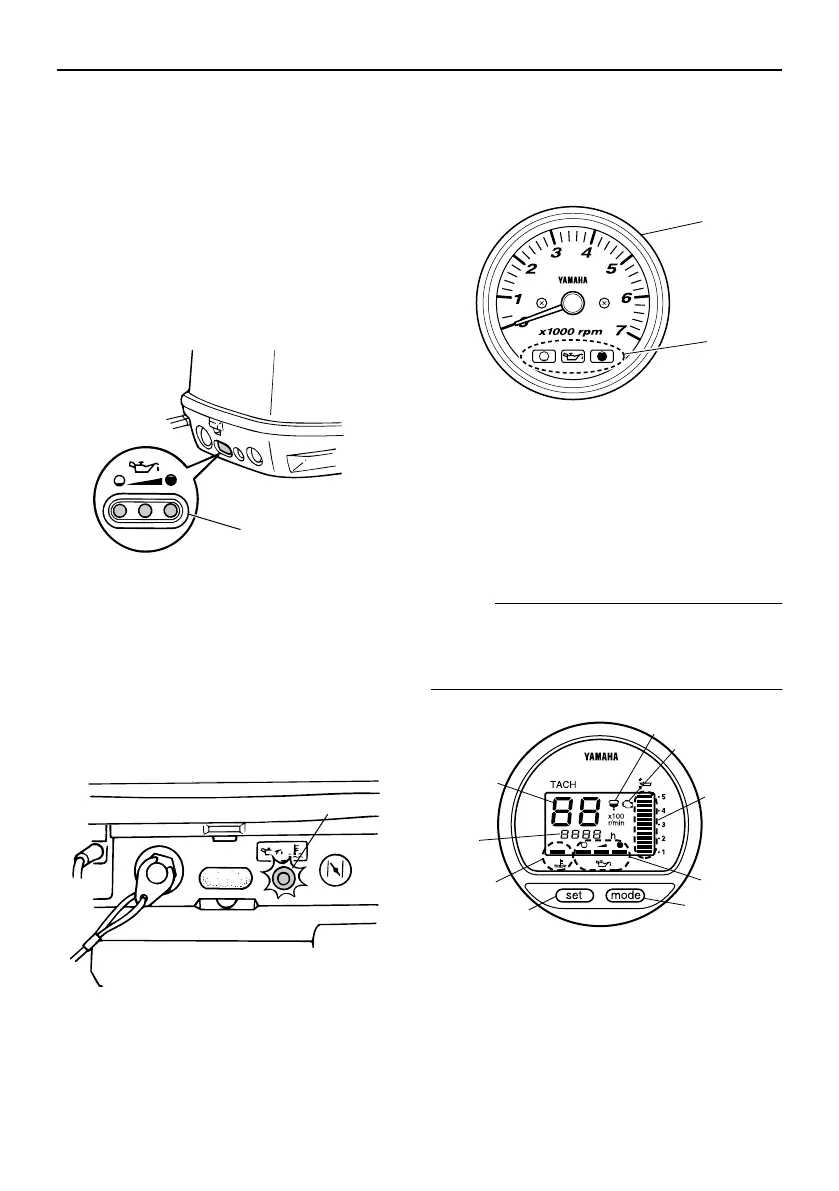

Warning indicator for three
indicators
If the engine develops a condition which is
cause for warning, the indicator on the front
of the bottom cowling lights up. The three in-
dicators mounted on the bottom cowling also
indicate the engine oil level. For details on
how to read the warning indicators, see page
20.
EMU26300
Warning indicator
If the engine develops a condition which is
cause for warning, the indicator lights up. For
details on how to read the warning indicator,
see page 20.
EMU26470
Tachometer
This gauge shows the engine speed and has
the following functions.
EMU26491
Digital tachometer
The tachometer shows the engine speed
and has the following functions.
NOTE:
All segments of the display will light momen-
tarily after the main switch is turned on and
will return to normal thereafter.
1. Warning indicator(s)
1. Warning indicator
1
ZMU03360
ZMU03361
1
1. Tachometer
2. Oil level indicator
1. Tachometer
2. Trim meter
3. Hour meter
4. Oil level indicator
5. Overheat warning indicator
6. Water separator warning indicator
ZMU04577
1
2
6
7
2
4
9
8
5
3
1
ZMU01958
