Operation
27
CAUTION:
ECM01260
Be sure to take the above steps when op-
erating the engine after a long period of
storage. Otherwise engine seizure could
occur.
EMU27233

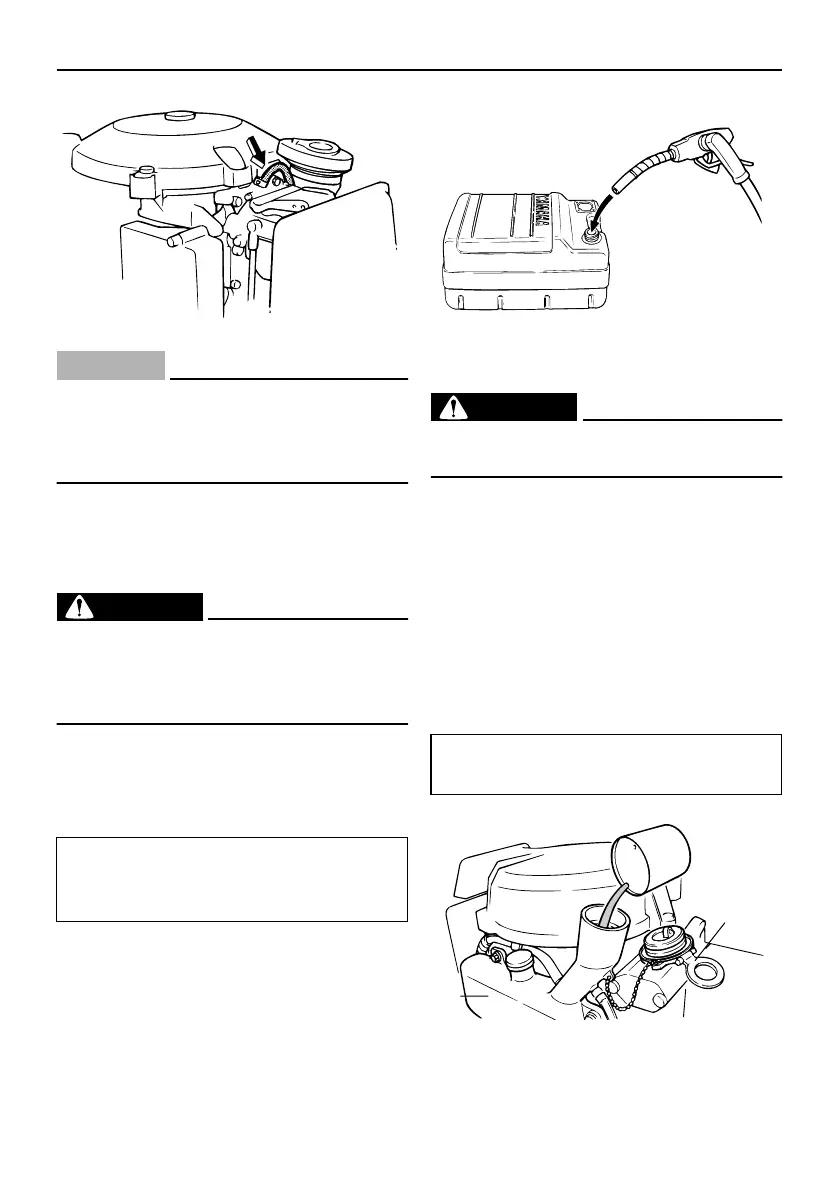

Filling fuel and engine oil
EMU27242
Filling fuel for portable tank
WARNING
EWM00060
Gasoline and its vapors are highly flam-
mable and explosive. Keep away from
sparks, cigarettes, flames, or other
sources of ignition.
1. Remove the fuel tank cap.
2. Fill the fuel tank carefully.
3. Close the cap securely after refueling.
Wipe up any spilled fuel.
EMU27300
Filling oil for manual starter model
WARNING
EWM00530
Do not add gasoline into the oil tank. Fire
or explosion could result.
This engine uses the Yamaha oil injection
system, which provides superior lubrication
by ensuring the proper oil ratio for all operat-
ing conditions. No fuel premixing is needed.
Simply pour gasoline into the fuel tank and
oil into the oil tank. Convenient indicator seg-
ments indicate the status of the oil supply.
For details on reading the indicator seg-
ments, see page 29.
To fill the engine oil tank, proceed as follows:
Fuel tank capacity (if equipped with a
Yamaha fuel tank):
24L, 25L
ZMU03367
Engine oil tank capacity:
1.5 L (1.59 US qt) (1.32 Imp.qt)
1. Engine oil tank
ZMU02834
1
2
ZMU03368
