7-6
E
BRKT
BRACKET UNIT

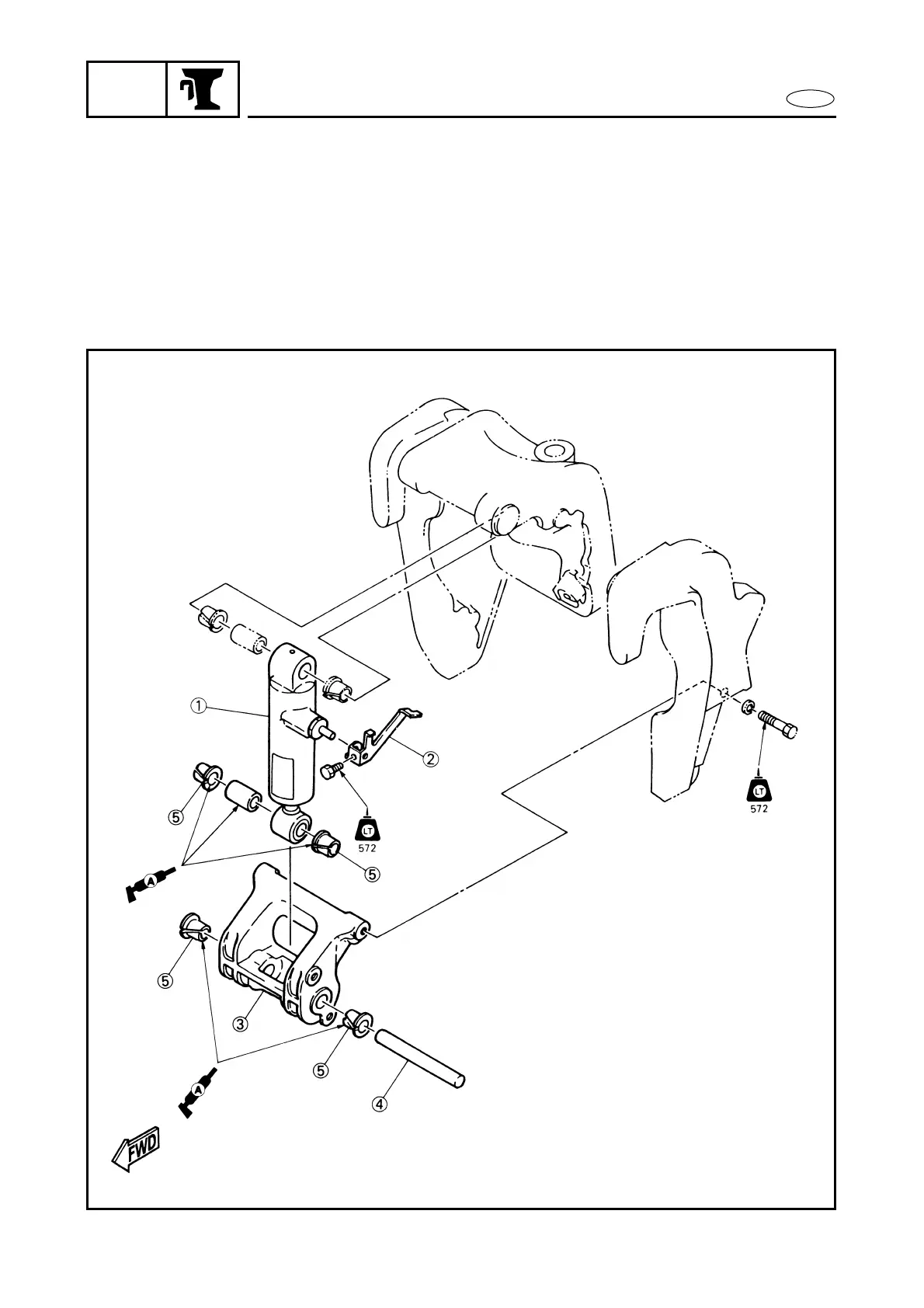

BRACKET UNIT (Manual tilt model)
1 Tilt unit
2 Tilt lever
3 Clamp bracket spacer
4 Lower shock mount pin
5 Bushing
