Yamaha 90A - Page 172

8-11
–+
ELEC
E

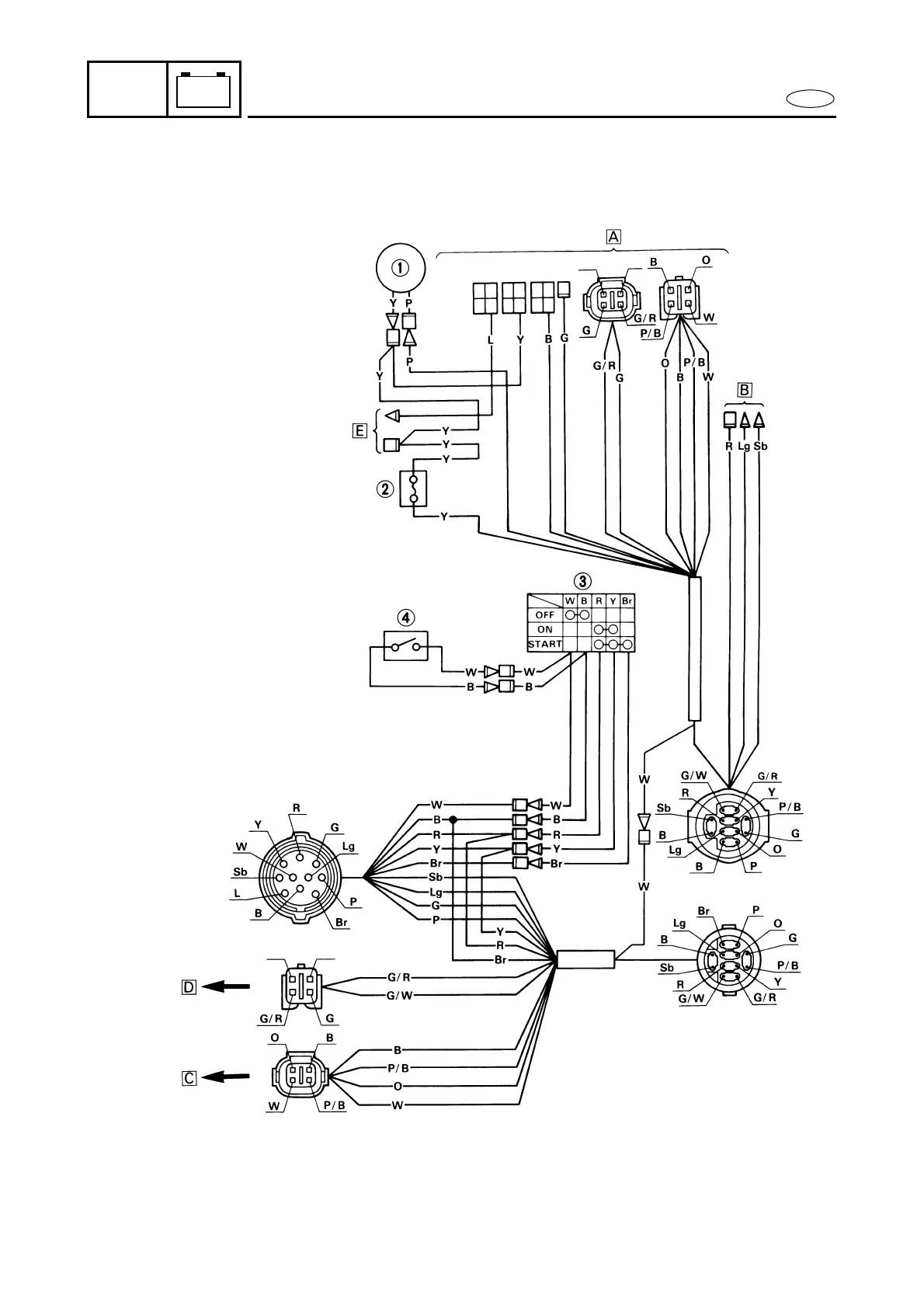

WIRING DIAGRAM
P60TH/60FEHTO
1 Buzzer
2 Fuse (10A)
3 Main switch
4 Engine stop switch
Å To tachometer
ı To power trim and tilt switch
(option)
Ç To trim sensor
Î To oil level sensor
‰ To lamp switch (option)
B .........Black
Br........Brown
G.........Green
Gy.......Gray
G/R .....Green/Red
L .........Blue
O.........Orange
P .........Pink
R .........Red
Sb.......Sky blue
W........White
Y .........Yellow
Lg .......Light green
G/W ....Green/White
P/B......Pink/Black
