Yamaha Bolt XVS95CH - Controls and instruments

Description
3-5
3
EAU10431

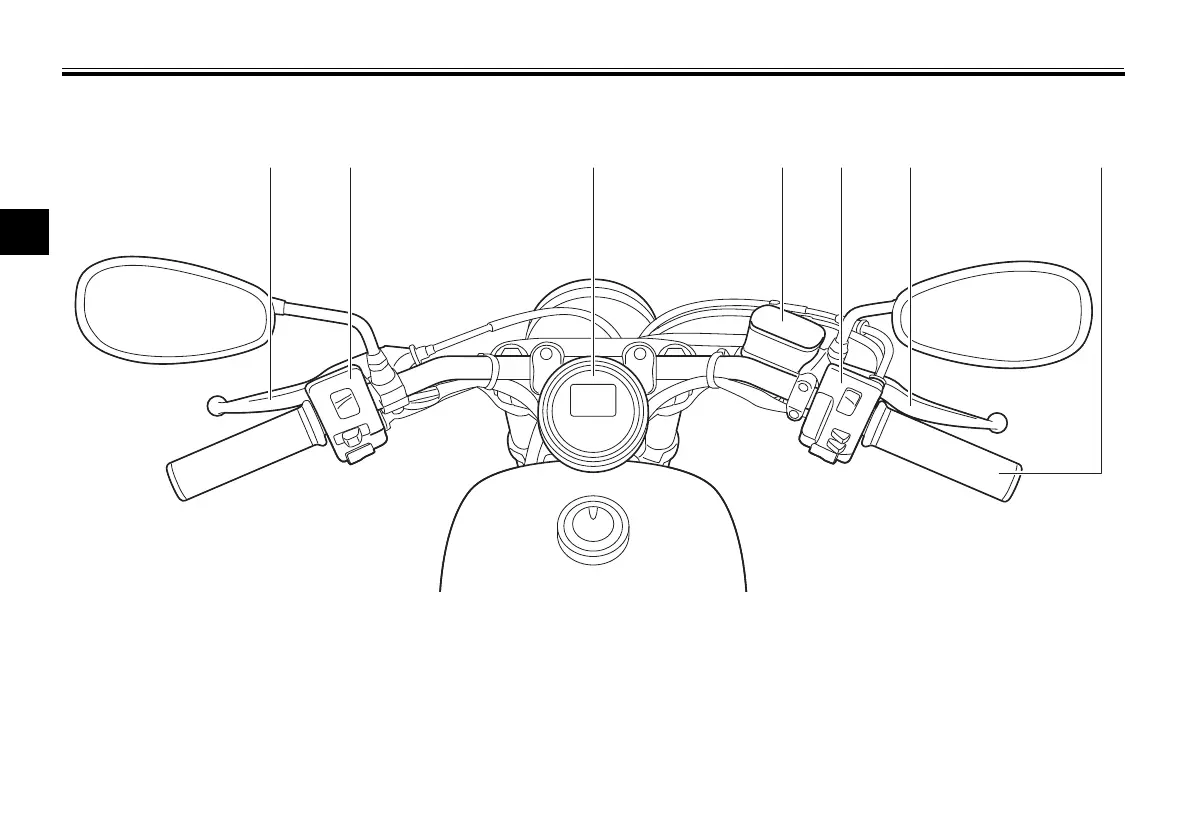

Controls and instruments
1 2 3 4 5 6 7
1. Clutch lever (page 4-7)
2. Left handlebar switches (page 4-5)
3. Multi-function meter unit (page 4-3)
4. Front brake fluid reservoir (page 7-21)
5. Right handlebar switches (page 4-5)
6. Brake lever (page 4-7)
7. Throttle grip (page 7-15)
UBP670E0.book Page 5 Monday, July 11, 2016 11:29 AM
