Periodic maintenance and adjustment
7-29
7
EAU55673
Replacing the fuses
The main fuse, the fuel injection sys-
tem fuse, and the fuse box, which con-
tains the fuses for the individual
circuits, are located under the owner’s
tool box behind panel A. (See page
7-9.)
To access the fuel injection system
fuse, remove the starter relay cover by
pulling it upward.
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15132]

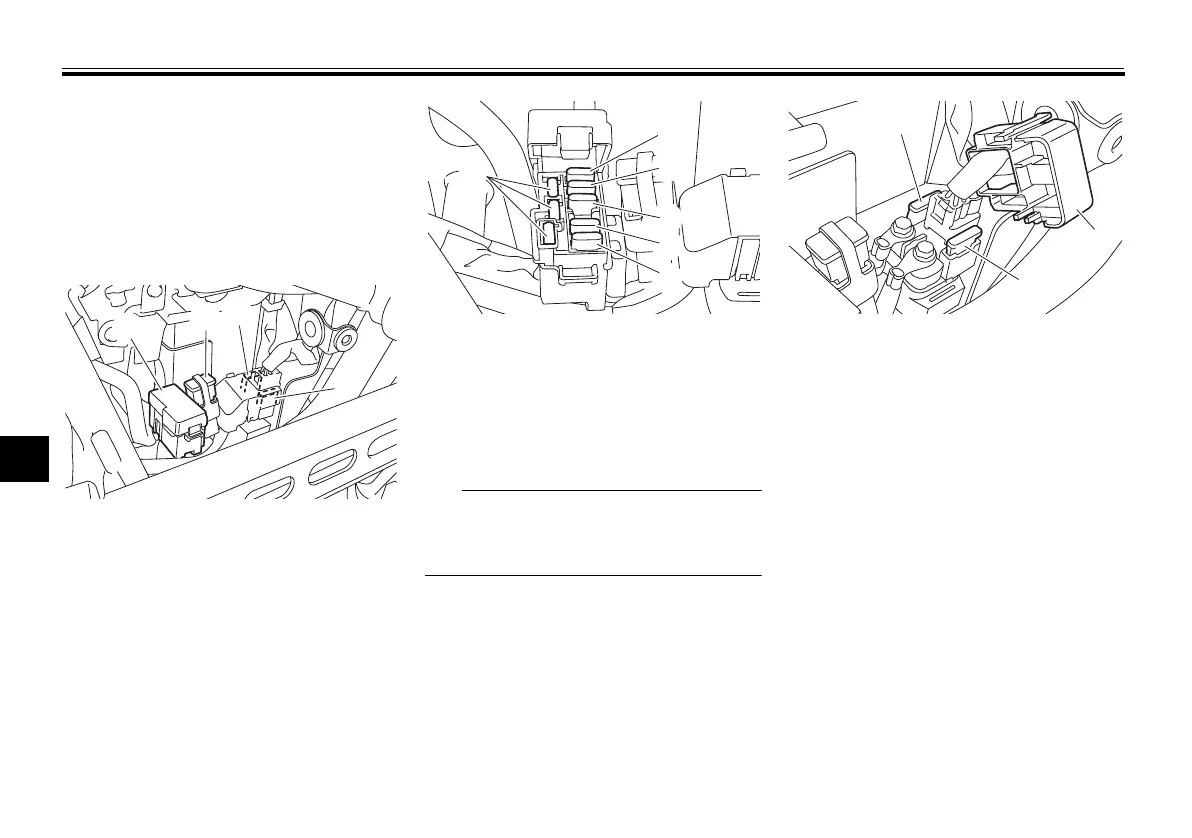

1. Fuse box
2. Main fuse
3. Fuel injection system fuse
4. Fuel injection system spare fuse
1. Ignition fuse
2. Signaling system fuse
3. Taillight fuse
4. Backup fuse (for clock)
5. Headlight fuse
6. Spare fuse
1. Starter relay cover
2. Fuel injection system fuse
3. Fuel injection system spare fuse
