Instrument and control functions
4-3
4
This warning light will come on when
the key is turned to “ON” and the start
switch is pushed, but this does not in-
dicate a malfunction.
EAU55815
Multi-function meter unit
EWA12423
Be sure to stop the vehicle before
making any setting changes to the
multi-function meter unit. Changing
settings while riding can distract the
operator and increase the risk of an
accident.
The multi-function meter unit is
equipped with the following:
a speedometer
an odometer
two tripmeters
a fuel reserve tripmeter
a clock
a self-diagnosis device
The key must be turned to “ON” before
you can use the “SELECT” and “RE-
SET” switches.
Speedometer
The speedometer shows the vehicle’s
traveling speed.

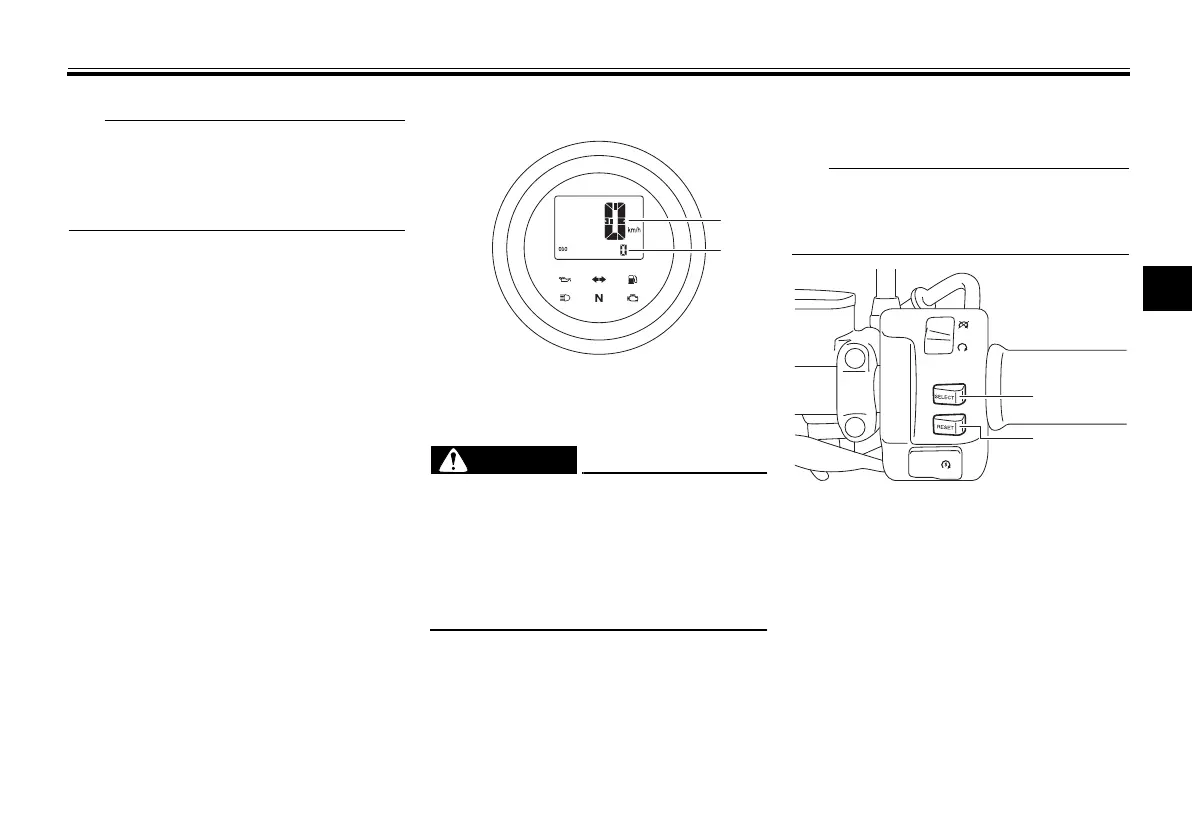

1. Speedometer
2. Odometer/tripmeters/fuel reserve tripme-
ter/clock
1. “SELECT” switch
2. “RESET” switch
