Instrument and control functions
4-1
4
EAU55831

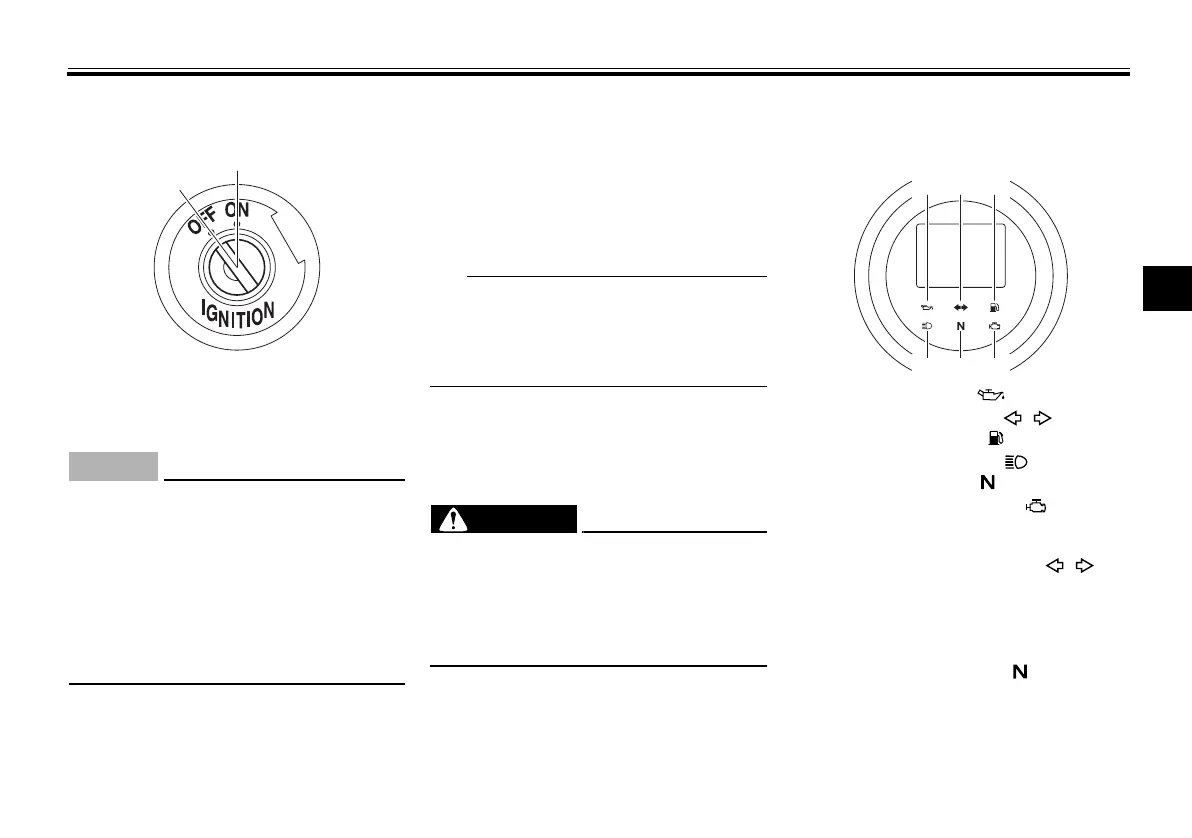

Main switch
The main switch controls the ignition
and lighting systems. The various main
switch positions are described below.
ECA17961
Do not use metal key chains or keep
more than one key on the same key
ring. While the vehicle is in motion, a
metal key chain, metallic key rings,
or additional keys could contact sur-
rounding components and scratch
them. Therefore, it is recommended
to use a cloth or leather key chain.
EAU10542
ON
All electrical circuits are supplied with
power; the meter lighting, taillight, li-
cense plate light and position lights
come on, and the engine can be start-
ed. The key cannot be removed.
The headlight comes on automatically
when the engine is started and stays
on until the key is turned to “OFF”,
even if the engine stalls.
EAU45752
OFF
All electrical systems are off. The key
can be removed.
EWA10073
Never turn the key to “OFF” while
the vehicle is moving, otherwise the
electrical systems will be switched
off, which may result in loss of con-
trol or an accident.
EAU49399
Indicator lights and warning
lights
EAU11022
Turn signal indicator light “ ”
This indicator light flashes when a turn
signal light is flashing.
EAU11061
Neutral indicator light “ ”
This indicator light comes on when the
transmission is in the neutral position.
1. Oil level warning light “ ”
2. Turn signal indicator light “ ”
3. Fuel level warning light “ ”
4. High beam indicator light “ ”
5. Neutral indicator light “ ”
6. Engine trouble warning light “ ”
