EAU23041
Drive belt slack
The drive belt slack should be checked
and adjusted at the intervals specified
in the periodic maintenance and lubri-
cation chart.
EAU55773
To check the drive belt slack
1. Place the vehicle on the side-
stand.
2. Note the current position of the
drive belt using the marks near the
drive belt check hole.
3. Note the position of the drive belt
with a force of 45 N (4.5 kgf, 10 lbf)
applied to the belt with a belt ten-
sion gauge as shown.
A belt tension gauge is available at a
Yamaha dealer.
4. Calculate the drive belt slack by
subtracting the measurement not-
ed in step 2 from the measure-
ment noted in step 3.
5. If the drive belt slack is incorrect,
have a Yamaha dealer adjust it.
EAU23098
Checking and lubricating the
cables
The operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubri-
cated if necessary. If a cable is
damaged or does not move smoothly,
have a Yamaha dealer check or re-
place it. WARNING! Damage to the
outer housing of cables may result
in internal rusting and cause inter-
ference with cable movement. Re-
place damaged cables as soon as
possible to prevent unsafe condi-
tions.
[EWA10712]

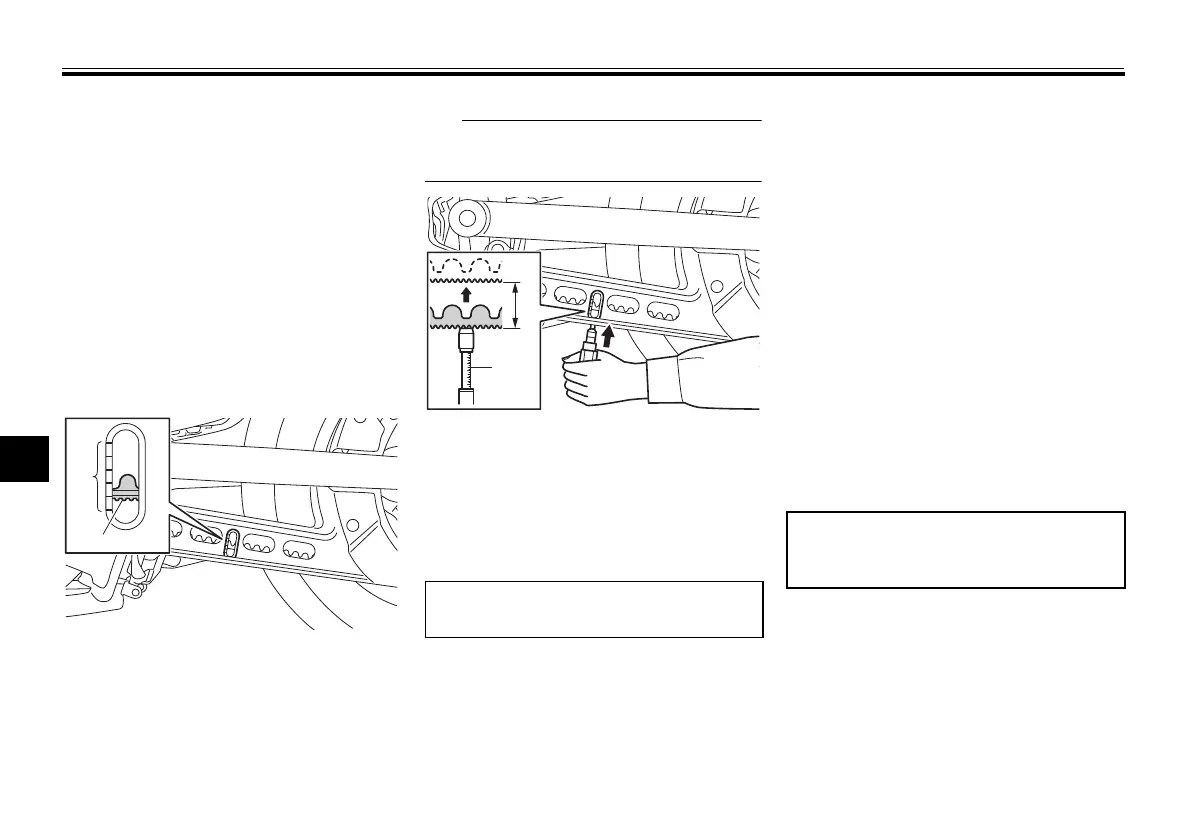

1. Drive belt
2. Marks
1. Belt tension gauge
2. Drive belt slack
Drive belt slack:
6.0–8.0 mm (0.24–0.31 in)
6 8 10 12 14
Recommended lubricant:
Yamaha cable lubricant or other
suitable cable lubricant
