Instrument and control functions
4-6
4
Right
EAU12401
Dimmer switch “ / ”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
EAU12431
Turn signal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When
released, the switch returns to the cen-
ter position.
Since this model is equipped with a
self-canceling system, the turn signal
lights will self-cancel after the vehicle
has traveled both about 150 m (490 ft)
and for approximately 15 seconds.
However, the turn signal lights can also
be canceled manually by pushing the
switch in after it has returned to the
center position.
The self-canceling system only oper-
ates when the vehicle is moving, so
that the turn signal lights will not self-
cancel while you are stopped at an in-
tersection.
EAU12501
Horn switch “ ”
Press this switch to sound the horn.
EAU12662
Engine stop switch “ / ”
Set this switch to “ ” before starting
the engine. Set this switch to “ ” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12713
Start switch “ ”
Push this switch to crank the engine
with the starter. See page 6-1 for start-
ing instructions prior to starting the en-
gine.
EAU41701
The engine trouble warning light will
come on when the key is turned to
“ON” and the start switch is pushed,
but this does not indicate a malfunc-
tion.
EAU55701
“SELECT” switch
This switch is used to perform selec-
tions in the odometer and tripmeters
and to set the clock of the multi-func-
tion meter unit.
See “Multi-function meter unit” on
page 4-3 for detailed information.
EAU55711
“RESET” switch
This switch is used to reset the tripme-
ters and to set the clock of the multi-
function meter unit.
See “Multi-function meter unit” on
page 4-3 for detailed information.

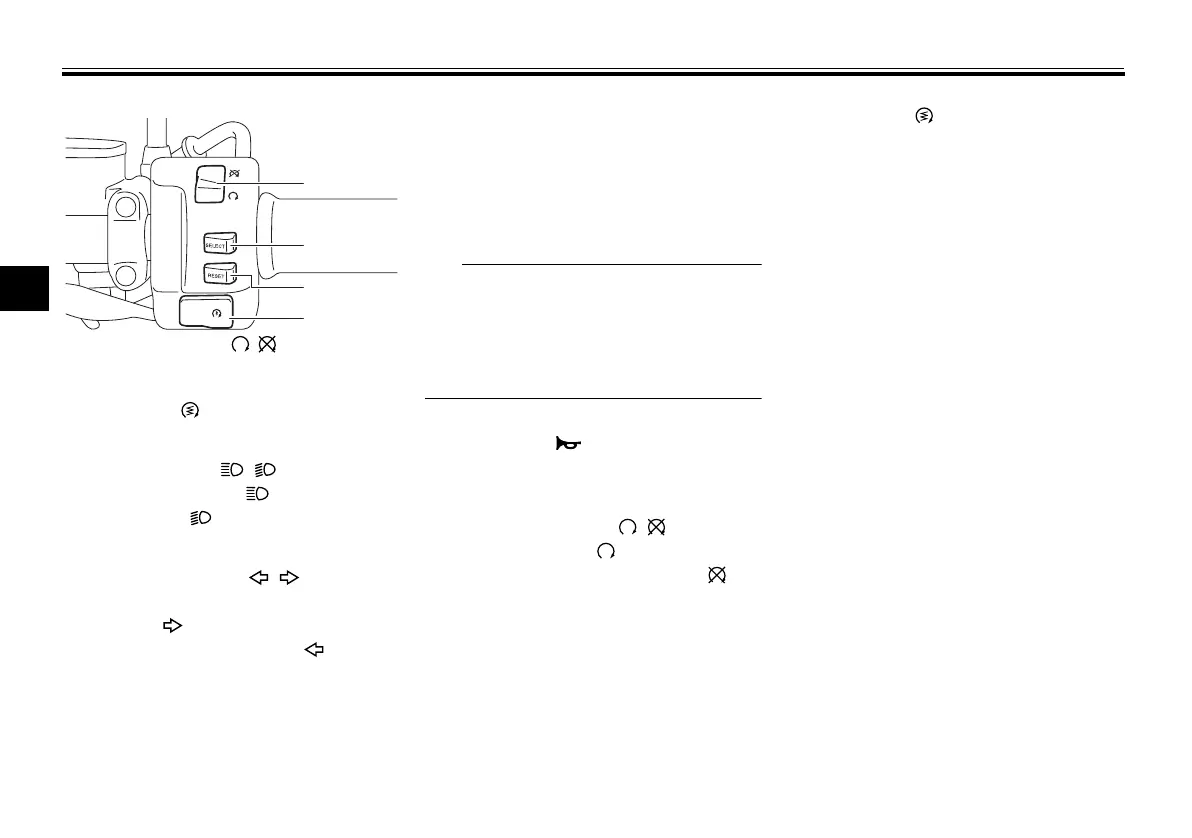

1. Engine stop switch “ / ”
2. “SELECT” switch
3. “RESET” switch
4. Start switch “ ”
