Yamaha CD-C600 - PU UNIT ASSEMBLY and Grease Diagram

ABCDEFGH I J
1
2
3
4
5
6
7
CD-C600
61
PG-663
PG-663
PG-663

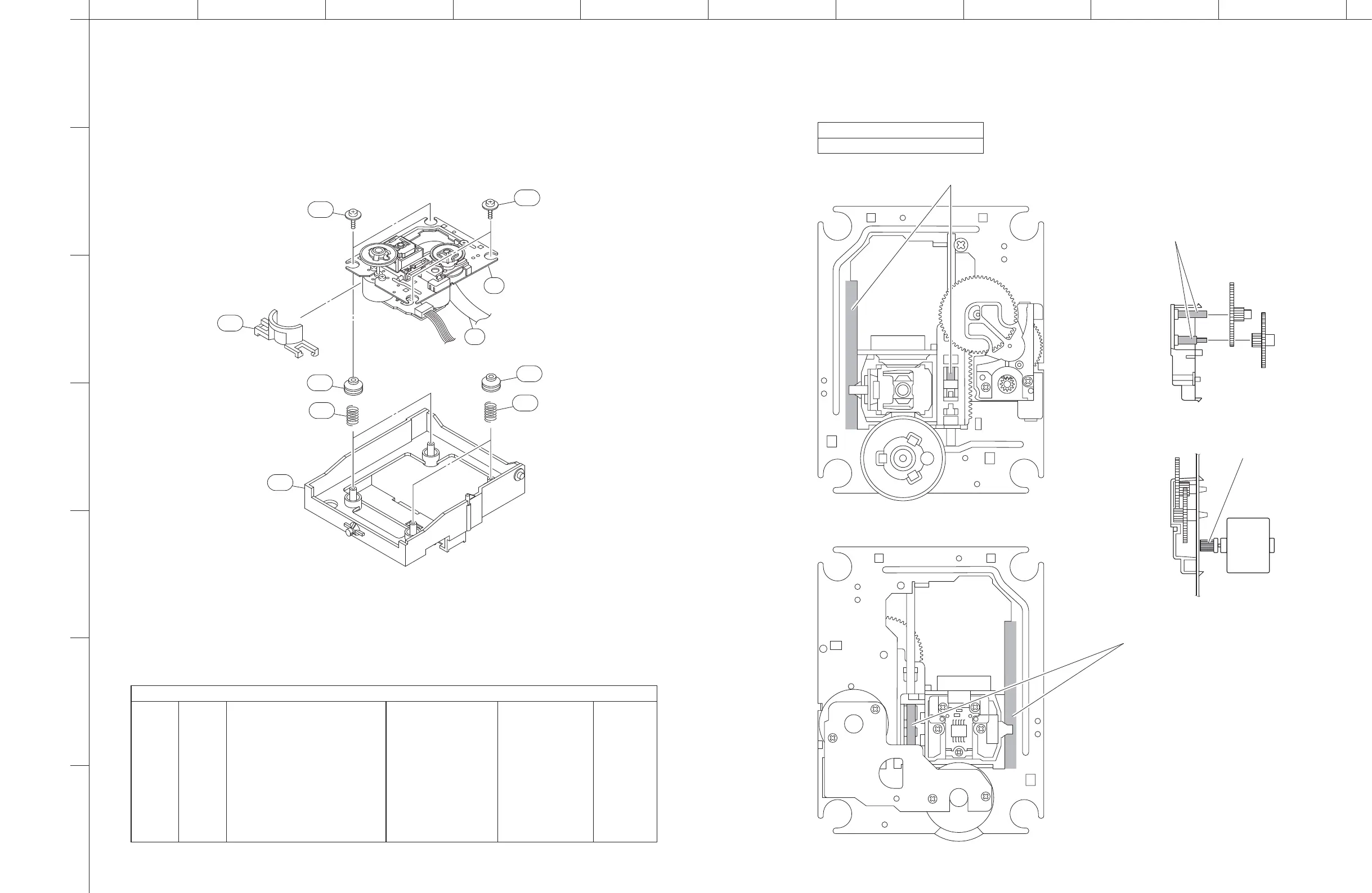

PU MECHANISM UNIT
PG-663
Apply the grease
Molykote PG-663 (Part No. AAX01170)
* 7-1 WS067600 PU MECHANISM UNIT
7-3 WS676100 FLEXIBLE FLAT CABLE 16P 320mm P=1.0
7-10 V2430600 HOLDER PU/C
7-11 V2430800 DAMPER CDC
7-12 VQ386500 SPRING
7-13 V2480800 BARRIER PU
7-20 WH292300 PW HEAD P-TIGHT SCREW 2.6x8-12 MFZN2W3
7-1
7-3
7-20
7- 11
7- 12
7-20
7- 13
7- 11
7- 12
7- 10
✻ New Parts
Ref No. Part No. Description Remarks Markets
• PU UNIT ASS'Y • GREASE APPLICATION DIAGRAM
