Yamaha CDX-E410 - HOW TO MANUALLY EJECT THE TRAY

CDX-E410
6
CDX-E410
None of the components of the following units can be supplied separately.
Each unit must be replaced as a whole in case of a failure.
• CD Mechanism
• MAIN P.C.B.
• FRONT P.C.B.
■ REPAIR NOTES

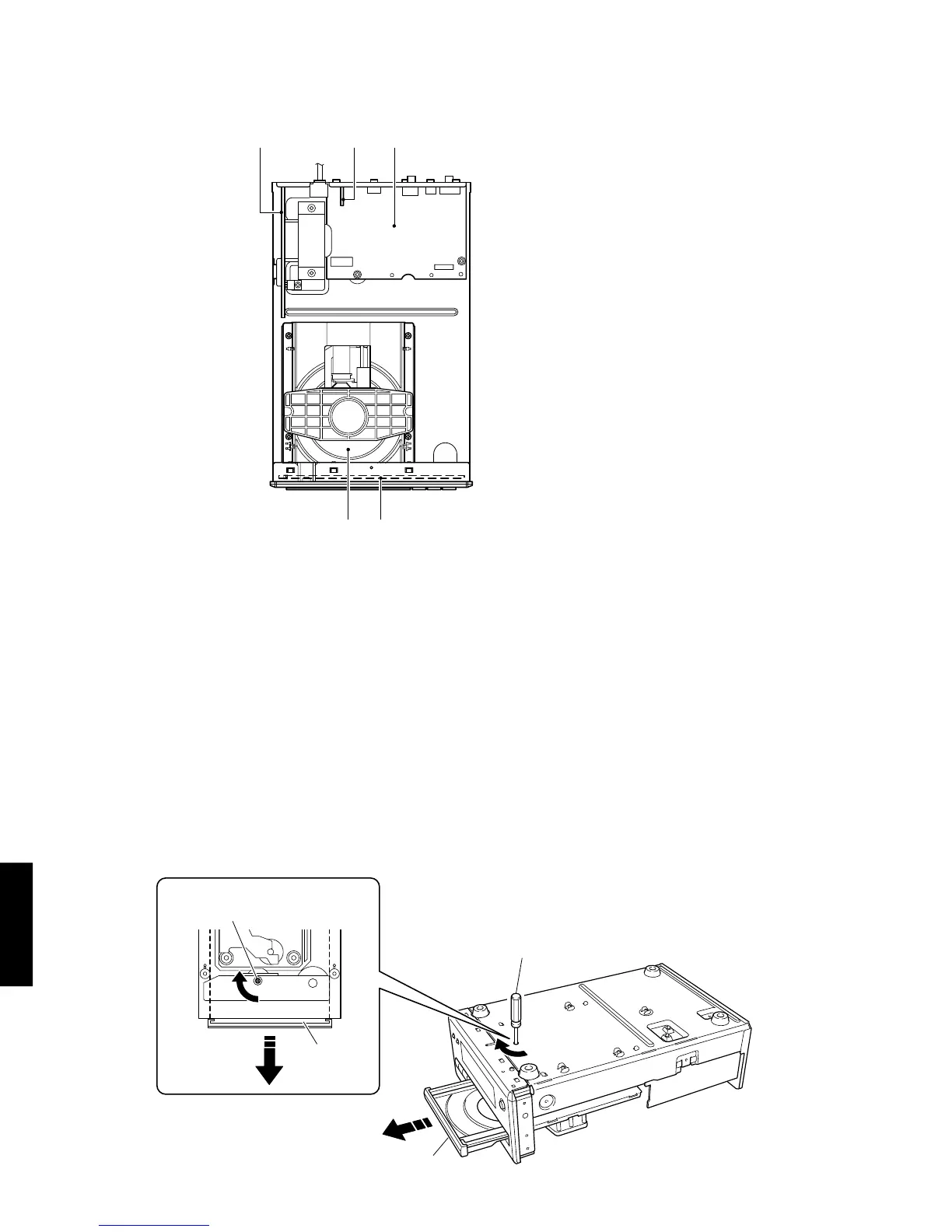

■ INTERNAL VIEW
FRONT (2) P.C.B.
MAIN (2) P.C.B.
MAIN (1) P.C.B.
CD Mechanism
FRONT (1) P.C.B.
5
2
4
1 3
1
2
3
4
5
■ HOW TO MANUALLY EJECT THE TRAY
a. Turn the unit bottom up.
b. Using a flatblade screwdriver, turn the loading cam 90 degrees in the direction indicated by an arrow in the figure.
c. Gently pull the tray out.
Tray
Loading Cam
Tray
Flatblade Screwdriver
