[100]: Bonding Tapping Screw-B 3.0X10 MFZN2BL (VQ049800)
[110B]: Bind Head Tapping Screw-B 3.0X6 MFZN2BL (EP600190)
[30]: Bind Head Tapping Screw-P 3.0X8 MFZN2BL (EP630220)
[40]: Bind Head Tapping Screw-B 3.0X8 MFZN2BL (EP600190)
[60A]: Bind Head Tapping Screw-B 3.0X20 MFZN2BL (VJ999700)
[80]: Bind Head Tapping Screw-B 3.0X20 MFZN2BL (VJ999700)
[110A]:Bind Head Tapping Screw-B 3.0X8 MFZN2BL (EP600190)
Shield box

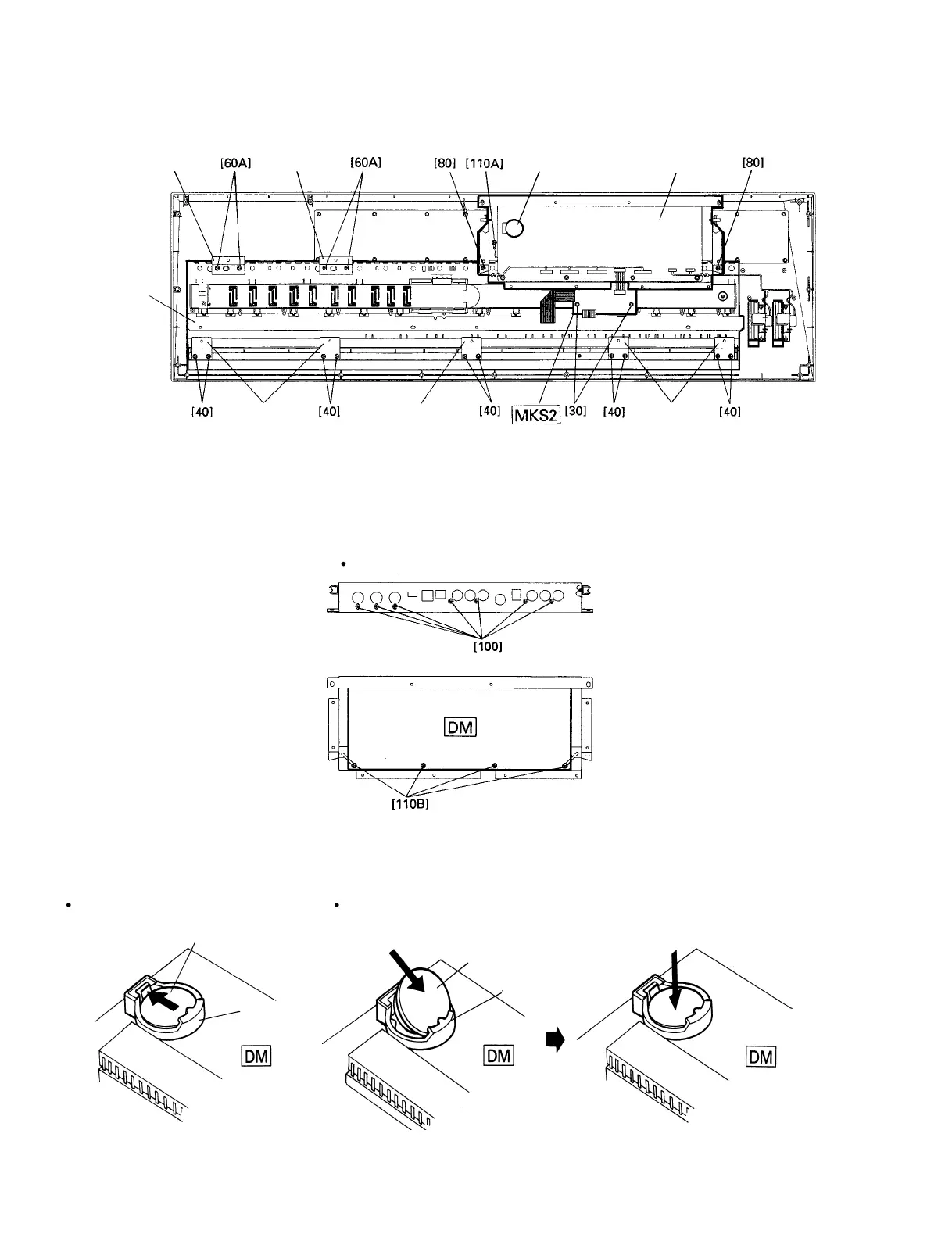

Fig.2
Lithium batteryMKR angleMKR angle
MKF angle
Keyboard assembly
MKF angle MKF angle
Fig.3
Fig.4
Shield box
Lithium battery
When removing;
Holder
Push
When installing;
Lithium battery
Holder
