RIVAGE PM7 System Setup Guide
17

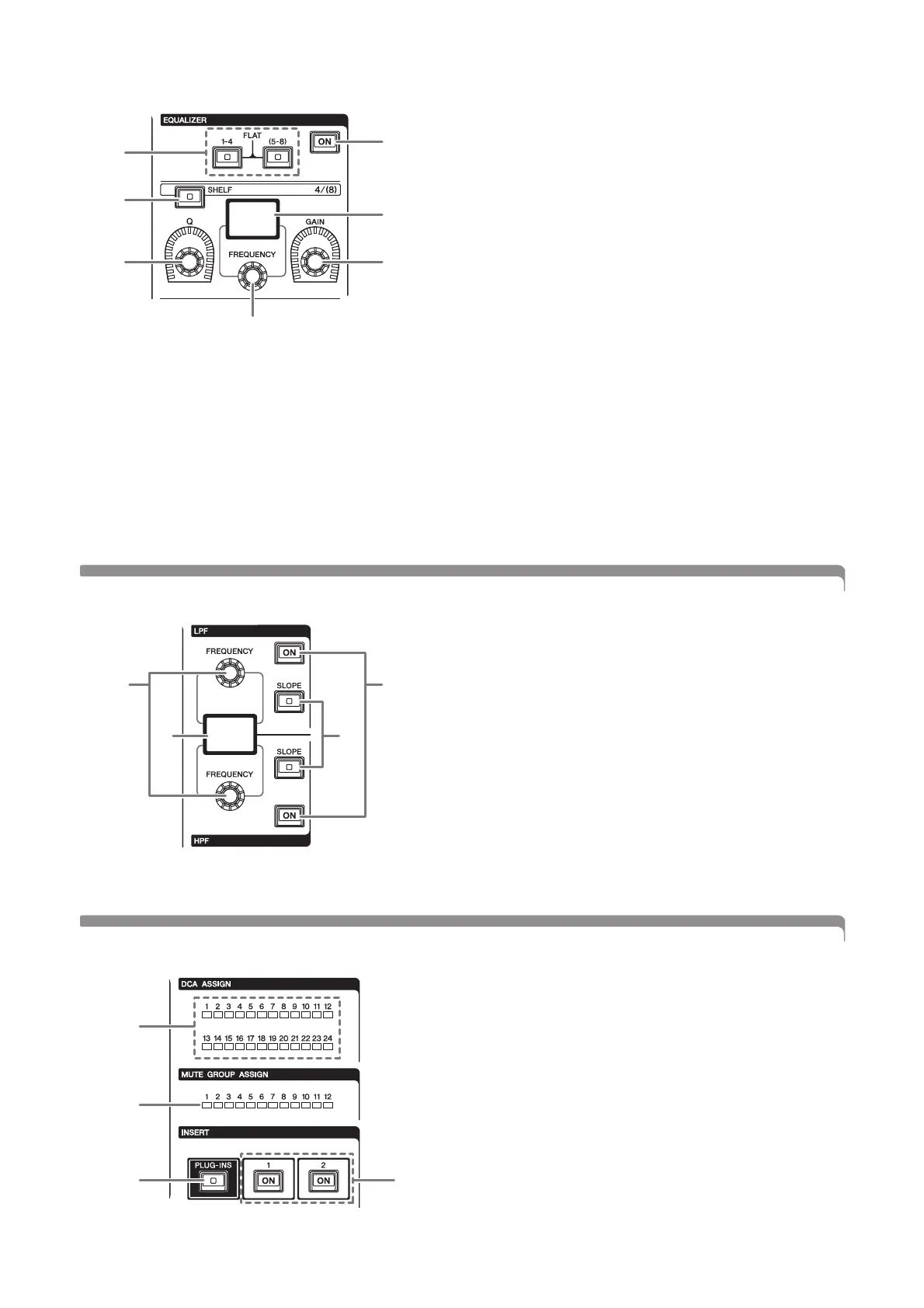

EQUALIZER
1 EQUALIZER [1-4]/[(5-8)] keys
Switch the EQ bands for which you want to make
settings.
Pressing both [1-4] and [5-8] keys simultaneously
will set the gain for all bands to 0 (FLAT).
2 EQUALIZER [ON] key
Switches EQ on or off.
3 EQUALIZER [SHELF] key
Switches peaking filter to shelving filter.
4 EQUALIZER display
Indicates parameters for each EQ band.
5 EQUALIZER [Q] knob
Specifies the Q value.
6 EQUALIZER [FREQUENCY] knob
Sets the frequency.
7 EQUALIZER [GAIN] knob
Sets the gain.
LPF/HPF
1 LPF/HPF [FREQUENCY] knobs
Specify the cutoff frequency of LPF and HPF
respectively.
2 LPF/HPF display
Indicates the LPF and HPF settings.
3 LPF/HPF [ON] keys
Switch the LPF and HPF on or off respectively.
4 LPF/HPF [SLOPE] keys
Switch the LPF and HPF slope settings respectively.
DCA/MUTE/INSERT
1 DCA ASSIGN LEDs
Indicate the assigned DCAs.
2 MUTE GROUP ASSIGN LEDs
Indicate the assigned Mute Groups.
3 INSERT [PLUG-INS] key
Enables you to recall a parameter setting screen for
the inserted plug-ins.
4 INSERT 1/2 [ON] keys
Switch the INSERT1 and INSERT2 on or off
respectively.
