RIVAGE PM7 System Setup Guide
22

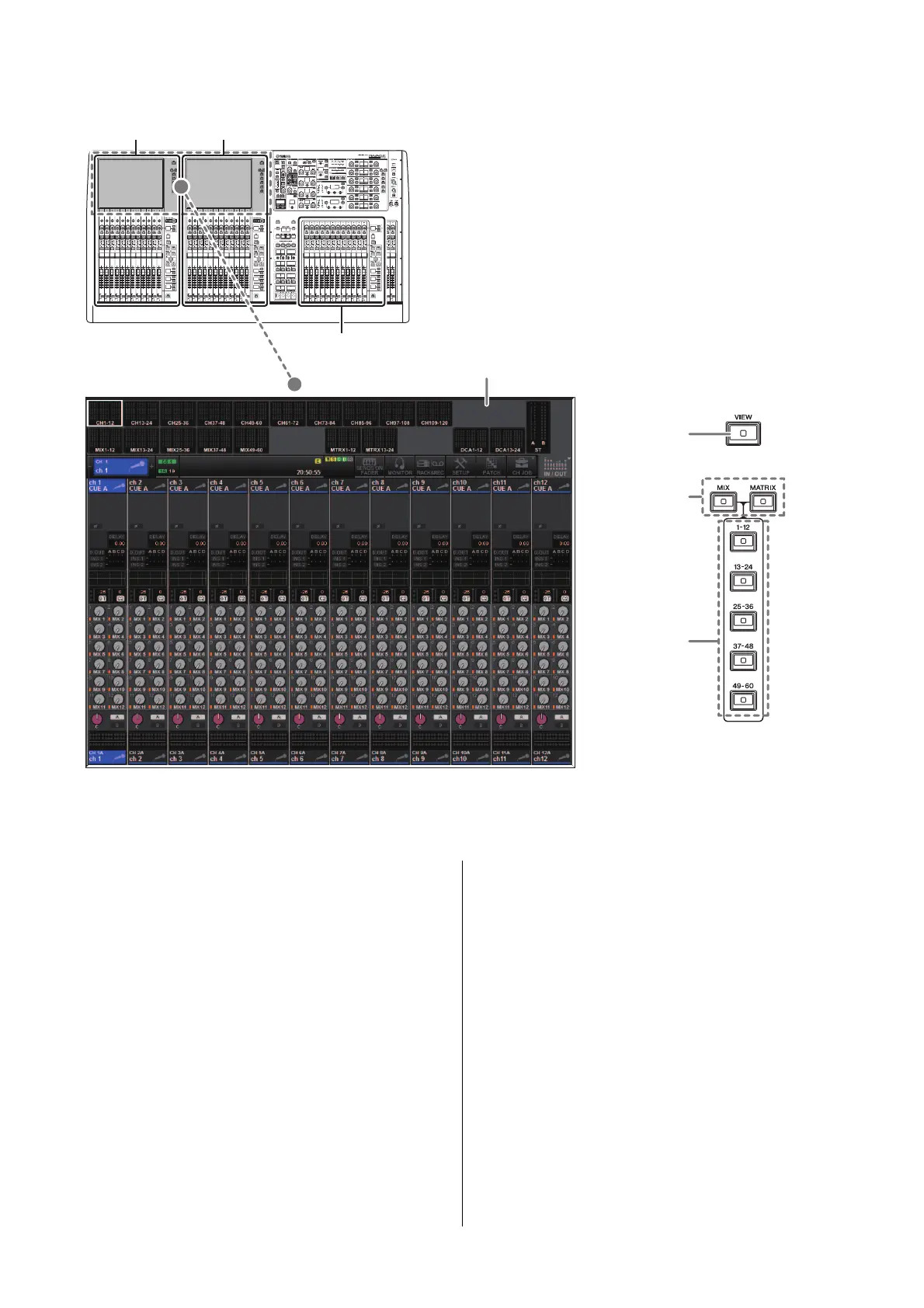

Touch Screen section (Bay L, Bay C)
1 Touch screen
This is a touch screen that you can operate by
touching it with your finger to select menus or set
parameters. Please note that you cannot operate the
unit by touching multiple points simultaneously.
NOTE
• If the touch screens become dirty, wipe them with a soft
dry cloth.
• Before use, be sure to remove the transparent film
applied to the touch screens to protect them during
transport.
NOTICE
Never use a sharp or pointed object such as your fingernail
to operate the touch screens. Doing so may scratch the
screens and render the touch screens inoperable.
2 [VIEW] key
Recalls and toggles between the OVERVIEW and
SELECTED CHANNEL VIEW screens.
3 [MIX]/[MATRIX] keys
Specify the type of the send destination buses
displayed on the OVERVIEW screen.
4 [1-12]/[13-24]/[25-36]/[37-48]/[49-60] keys
Enable you to select a bank for the send destination
bus displayed on screen.
Bay
A “bay” consists of a group of 12 faders located across
the Touch Screen section and the Channel Strip section.
The CSD-R7 contains three bays. You can control these
bays independently.
