Yamaha DS55 - Rear Panel

W AUTO PERFORMANCE Buttons
The AUTO PERFORMANCE SELECT and START/
STOP buttons provide access to the DS55's most
remarkable feature — the auto accompaniment
function.
Details on page 17
Y STORE Button
The STORE button accesses both the DS55's
memory protection and data storage functions, al-
lowing voices you have edited to be stored in any
of the 99 available user memory locations.
Details on page 16
® TUNE Button
The TUNE button accesses the MASTER TUNE
function, allowing you to tune the DS55 to match
other instruments or recorded material.
Details on page 10
6 BREATH Jack
The BREATH jack accepts one of VAMAHA's origi-
nal breath controllers (BC1 or BC2), allowing wind-
instrument breath and tongueing techniques to be
used for the application of various effects.
Details on page 14
6 PHONE Jack
A standard pair of stereo headphones can be
plugged in here for private practice or late-night
playing.

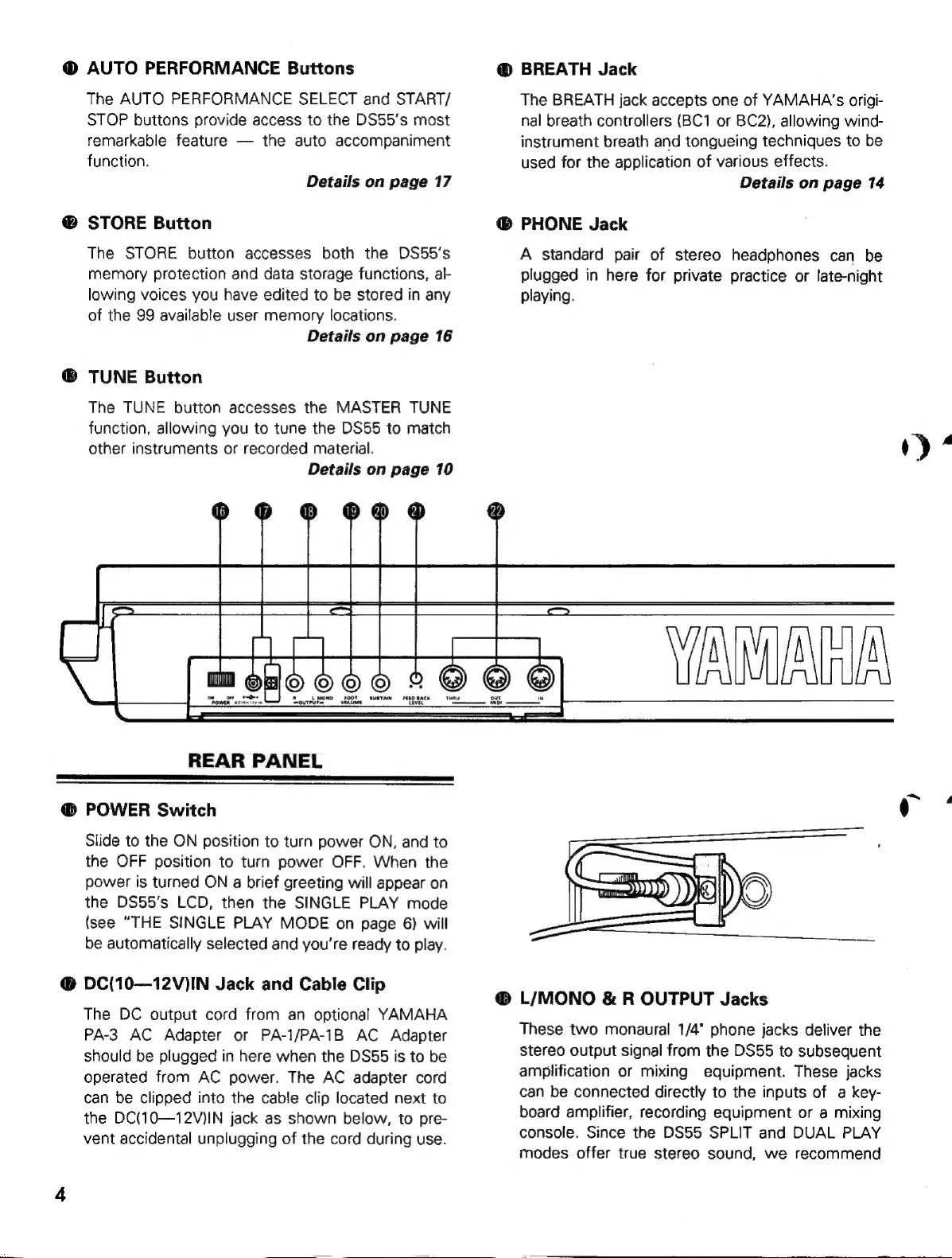

REAR PANEL
G POWER Switch
Slide to the ON position to turn power ON, and to
the OFF position to turn power OFF. When the
power is turned ON a brief greeting will appear on
the DS55's LCD, then the SINGLE PLAY mode
(see “THE SINGLE PLAY MODE on page 6) will
be automatically selected and you're ready to play.
O DC(10—12V)IN Jack and Cable Clip
The DC output cord from an optional YAMAHA
PA-3 AC Adapter or PA-1/PA-1B AC Adapter
should be plugged in here when the DS55 is to be
operated from AC power. The AC adapter cord
can be clipped into the cable clip located next to
the DC(10—12W)IN jack as shown below, to pre-
vent accidental unplugging of the cord during use.
Gm
6 L/MONO & R OUTPUT Jacks
These two monaural 1/4* phone jacks deliver the
stereo output signal from the DS55 to subsequent
amplification or mixing equipment. These jacks
can be connected directly to the inputs of a key-
board amplifier, recording equipment or a mixing
console. Since the DS55 SPLIT and DUAL PLAY
modes offer true stereo sound, we recommend
