DSP-A5
No.3 AC-3/DTS THROUGH
The input is digital signal only. AC-3 (DOLBY DIGITAL) or DTS Digital Surround decoding operation is executed,
according to the input source.
1. STATUS(BINARY FORM)
AC-3 (DOLBY DIGITAL) decoded signals are output to each channel via AC3D2av.
The AC-3 (DOLBY DIGITAL) signal status data will be displayed in the FL display using a binary number.
AC-3 Status Info. : bit 7 6 5 4 3 2 1 0
(Invalid in DTS) 1 0 0 01001
IEC958 digital data bit
IEC958 commercial-use device bit
IEC958 digital format error
Demodulator muting (without RF signal)
1 for audio other than PCM linear audio
1 during red DTS lock
1 during DTS decode OK
1 during AC-3 decode OK
No.4 PRO LOGIC
The submenu is switched between PRO LOGIC (AUTO BALANCE OFF) and EFFECT OFF.
1. CENTER LARGE
The input is automatically discriminated by signal detection and switched with priorities Coaxial>Optical>Analog.
DTS Digital Surround is disabled. The input signals are PRO LOGIC decoded and output.
(Remote control code 7A-8A: "3" key [DSP mode])
2. EFFECT OFF
The input is only for analog signal. The L/R signals bypass the digital circuit and are output to the MAIN L/R.

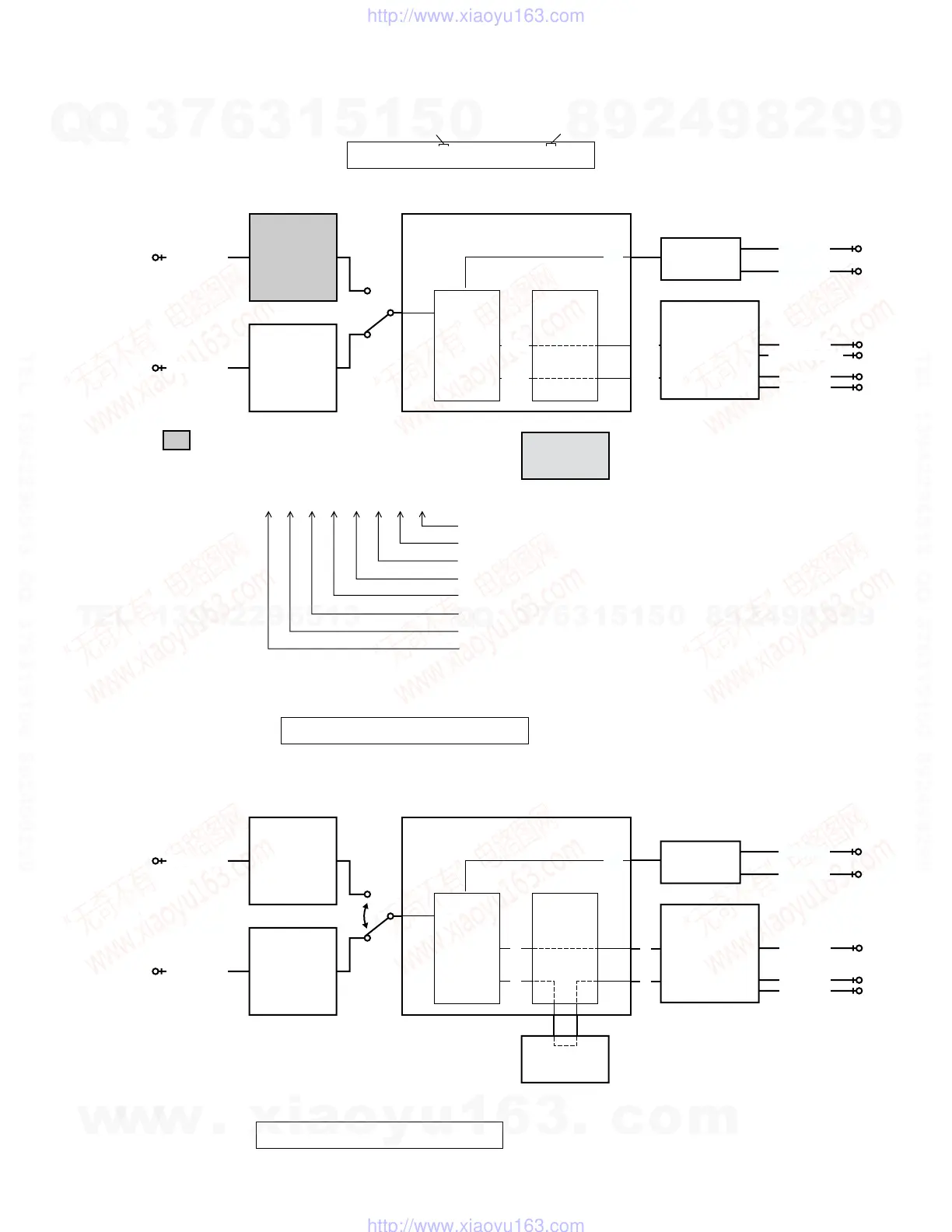

AC3D2av(YSS918)
DECODER
DOLBY DIGITAL
or
PRO LOGIC
or
DTS
or
DTS
1M SRAM
DSP
ANALOG IN
REAR L
REAR R
CENTER
SUBWOOFER
DIGITAL IN
LS/RSLS/RS
C/LFEC/LFE
AC3D2av(YSS918)
DECODER
DOLBY DIGITAL
or
PRO LOGIC
1M SRAM
DSP
ANALOG IN
C
S
C
S
REAR L
REAR R
CENTER
DIGITAL IN
: This shows that the device is not operating.
• INPUT : DVD/LD (Analog signal)
(Lch and Rch, or Lch only, 1KHz, –20dBV)
• OUTPUT : SPEAKERS
(INPUT : Lch and Rch ) (INPUT : Lch only)
MAIN L : –12.5 dBV MAIN L : 24.0 dBV
MAIN R : –12.5 dBV MAIN R : –19.0 dBV
CENTER: 27.0 dBV CENTER : –10.0 dBV
REAR L : –9.0 dBV REAR L : –9.0 dBV
REAR R : –9.0 dBV REAR R : –9.0 dBV
3 ST:10001001
4PROCNTR:LRG
4PRO EFCT:OFF
DIR5
CODEC.DAC
AK4526A
YSD917
CODEC.ADC
AK4526A
DIR5
CODEC.DAC
AK4526A
YSD917
CODEC.ADC
AK4526A
DAC
AK4324
MAIN R
MAIN L
L/R
DAC
AK4324
MAIN R
MAIN L
L/R
