4. CONTENTS OF DIAGNOSIS FUNCTION
This section describes the contents of the self diagnosis function in detail.

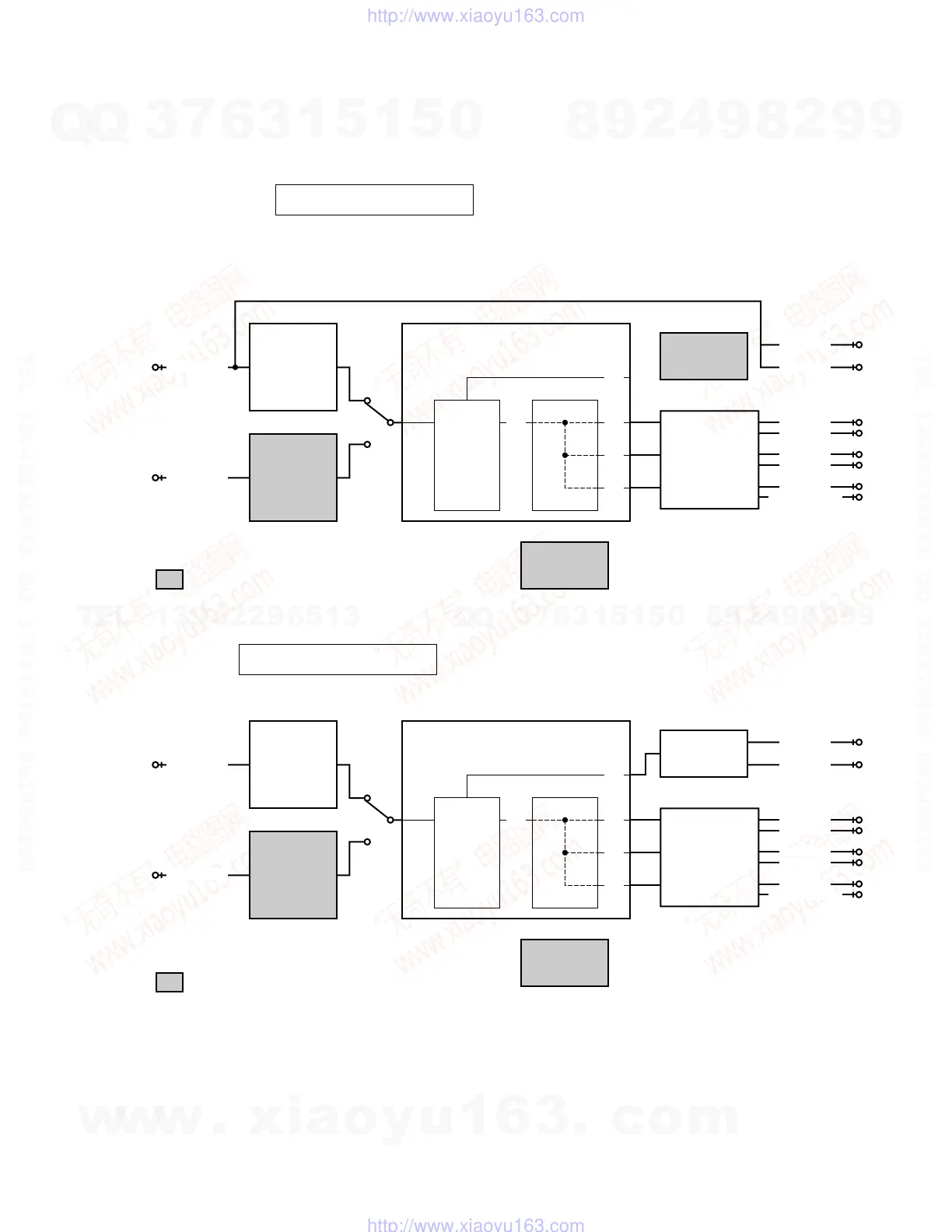

No.1 ANALOG THROUGH
The input is fixed to analog (A/D). There are two submenus.
1. MAIN BYPASS
The MAIN L/R signals bypass the analog circuits to be output.
For CENTER/SUBWOOFER, FRONT L/R and REAR L/R, the MAIN L/R signals via the DSP are output without
being processed (through). (Remote control code 7A-88)
: This shows that the device is not operating.
2. DSP 0dB
MAIN L/R, CENTER/SUBWOOFER/LFE, FRONT L/R and REAR L/R pass through the DSP without being
processed.
: This shows that the device is not operating.
DIR2
CODEC.DA
AK4526
YM3436
CODEC.AD
AC3Dav(YSS908)
AK4526
DECODER
DA
AK4320
1M SRAM
DSP
ANALOG IN
L/R L/R
FRONT R
REAR L
REAR R
CENTER
SUBWOOFER
L/R
L/R
L/R
DIGITAL IN
FRONT L
MAIN R
MAIN L
DIR2
CODEC.DA
AK4526
YM3436
CODEC.AD
AC3Dav(YSS908)
AK4526
DECODER
DA
AK4320
1M SRAM
DSP
ANALOG IN
L/R L/R
FRONT R
REAR L
REAR R
CENTER
SUBWOOFER
L/R
L/R
L/R
DIGITAL IN
FRONT L
MAIN R
MAIN L
1 DVD/LD DSP 0DB
1 DVD/LD MAIN BYPAS
• INPUT : DVD/LD (Analog signal)
(Lch and Rch, 1KHz, -20dBV)
• OUTPUT : SPEAKERS
MAIN L : 23.8 dBV REAR L : 23.7 dBV
MAIN R : 23.8 dBV REAR R : 23.7 dBV
CENTER: 23.7 dBV
• INPUT : DVD/LD (Analog signal)
(Lch and Rch, 1KHz, -20dBV)
• OUTPUT : SPEAKERS
MAIN L : 23.7 dBV REAR L : 23.6 dBV
MAIN R : 23.7 dBV REAR R : 23.6 dBV
CENTER: 23.6 dBV
