DSP-A595
No.2 DSP THROUGH
The input is automatically discriminated by signal detection and switched with priorities AC3>PCM
AUDIO>analog. There are the following three submenus.

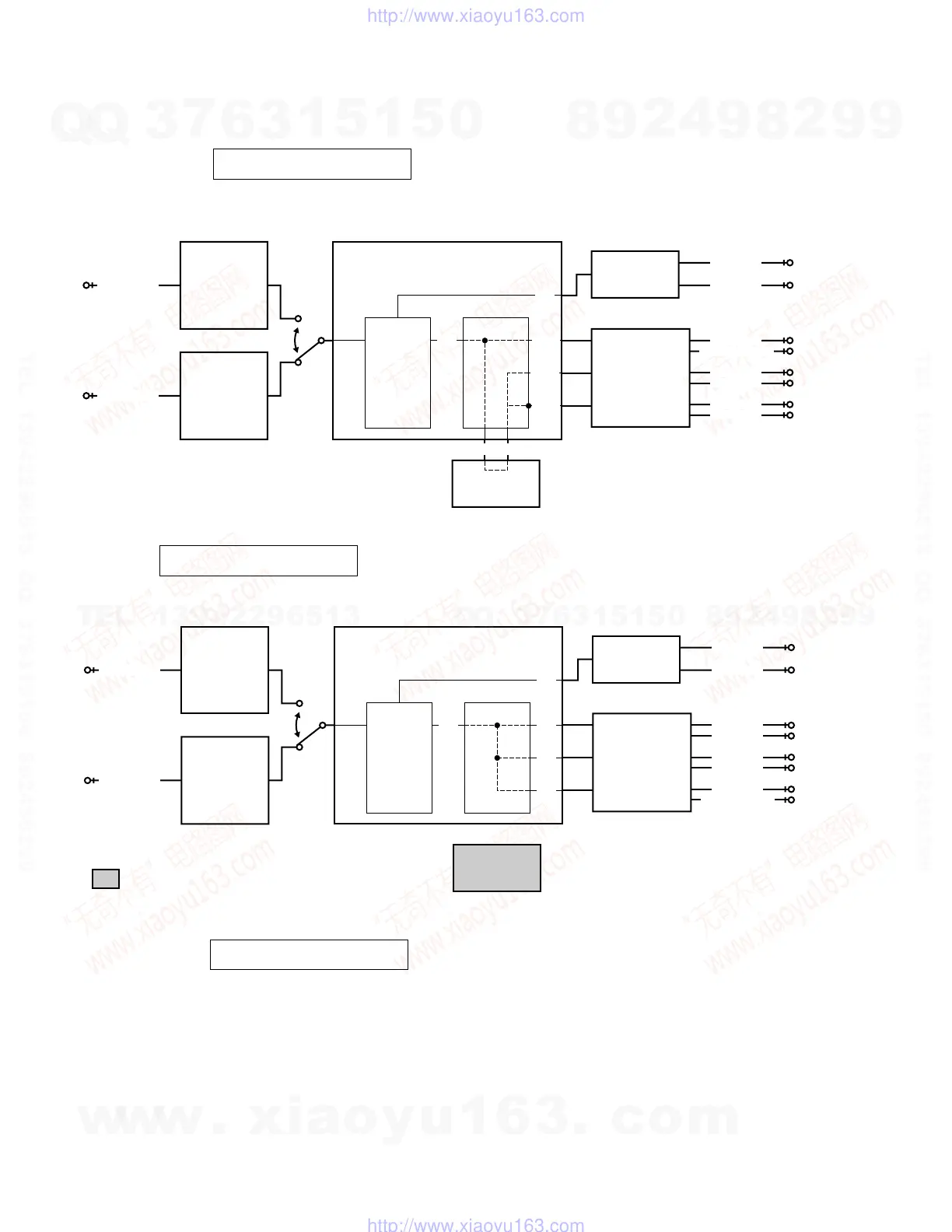

1. YSS908-SRAM
MAIN L/R are input to the DSP via AC3Dav, pass through SRAM, and are then output to all channels without
being processed. (Remote control code 7A-89)
2. YSS908
MAIN L/R are input to the DSP via AC3Dav, and then output to all channels without being processed.
3. DSP FULL BIT
MAIN L/R are input to the DSP via AC3Dav, and then output to all channels without being processed.
The head margin is abolished, and DSP outputs digital full-bit signals.
Same as the above menu, except that the digital data is output to DA with full bits.
DIR2
CODEC.DA
AK4526
YM3436
CODEC.AD
AC3Dav(YSS908)
AK4526
DECODER
DA
AK4320
1M SRAM
DSP
ANALOG IN
L/R
REAR L
REAR R
CENTER
SUBWOOFER
L/R
DIGITAL IN
FRONT R
FRONT L
MAIN R
MAIN L
L/R L/R
DIR2
CODEC.DA
AK4526
YM3436
CODEC.AD
AC3Dav(YSS908)
AK4526
DECODER
DA
AK4320
1M SRAM
DSP
ANALOG IN
L/R
FRONT R
REAR L
REAR R
CENTER
SUBWOOFER
L/R
L/R
L/R
L/R
DIGITAL IN
FRONT L
MAIN R
MAIN L
: This shows that the device is not operating.
2 DVD/LD YSS908SRAM
2 DVD/LD YSS908
2 DVD/LD DSP FULL
L/R
L/R
L/R
• INPUT : DVD/LD (Analog signal)
(Lch and Rch, 1KHz, -20dBV)
• OUTPUT : SPEAKERS
MAIN L : 23.7 dBV REAR L : 23.5 dBV
MAIN R : 23.7 dBV REAR R : 23.5 dBV
CENTER: 23.6 dBV
• INPUT : DVD/LD (Analog signal)
(Lch and Rch, 1KHz, -20dBV)
• OUTPUT : SPEAKERS
MAIN L : 23.8 dBV REAR L : 23.8 dBV
MAIN R : 23.8 dBV REAR R : 23.8 dBV
CENTER: 23.8 dBV
• INPUT : DVD/LD (Analog signal)
(Lch and Rch, 1KHz, -20dBV)
• OUTPUT : SPEAKERS
MAIN L : 13.8 dBV REAR L : 22.8 dBV
MAIN R : 13.8 dBV REAR R : 22.8 dBV
CENTER: 16.8 dBV
