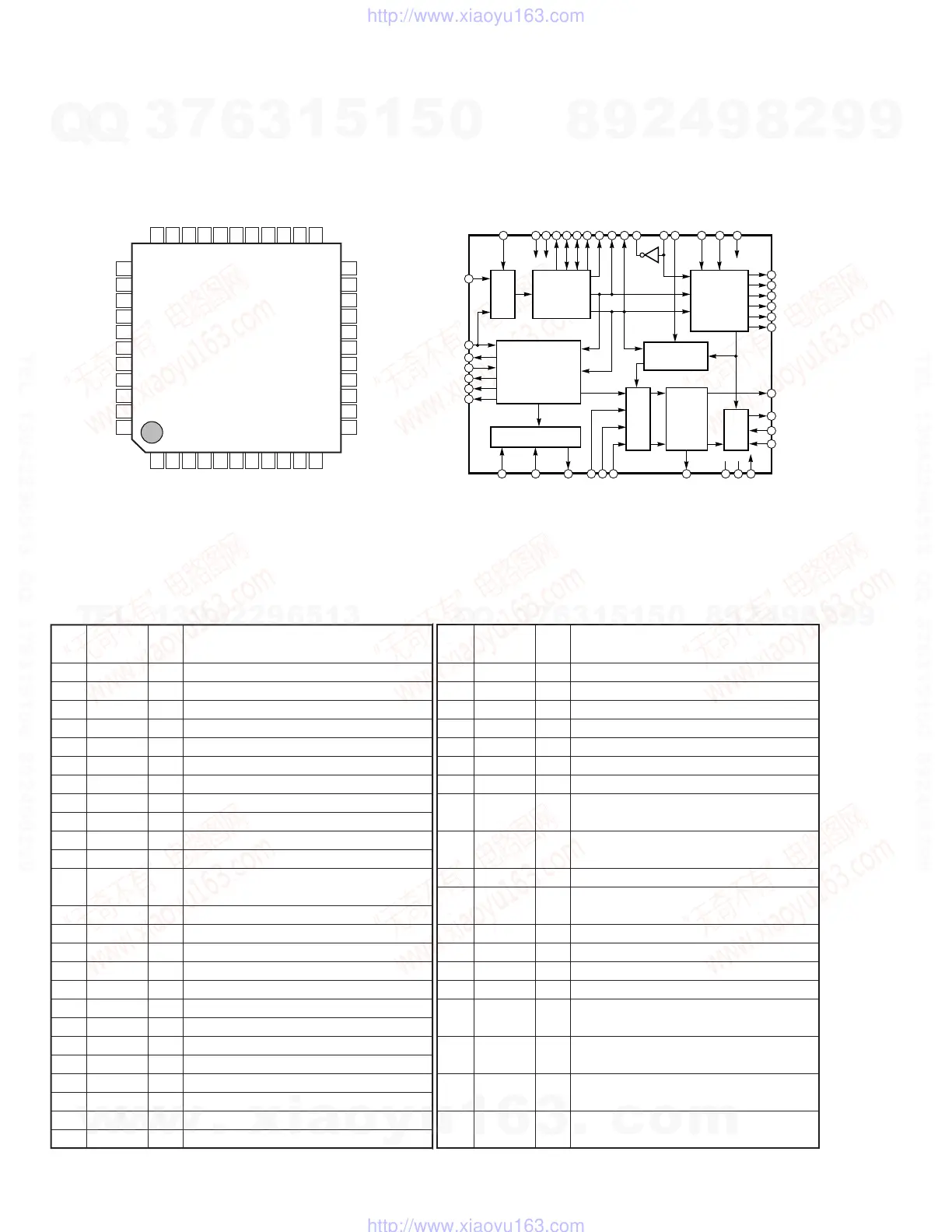

DSP-A595
IC3 : YM3436DK (DIR2)
Digital Format Interface Receiver
Pin Pin
I/O Function
No. Name
1 DAUX I Auxiliary input for audio data
2 HDLT O Asynchronous buffer operation flag
3 DOUT O Audio data output
4 VFL O Parity flag output
5 OPT O Fs x 1 Synchronous output signal for DAC
6 SYNC O Fs x 1 Synchronous output signal for DSP
7 MCC O Fs x 64Bit clock output
8 WC O Fs x 1Word clock output
9 MCB O Fs x 128Bit clock output
10 MCA O Fs x 256Bit clock output
11 SKSY I Clock synchronization control input
12 XI I
Crystal oscillator connection or external
clock input
13 XO O Crystal oscillator connection
14 P256 O VCO oscillator clock connection
15 LOCKN O PLL lock flag
16 VSS Logic section power (GND)
17 TC O PLL time constant switching output
18 DIM1 I Data input mode selection
19 DIM0 I Data input mode selection
20 DOM1 I Data output mode selection
21 DOM0 I Data output mode selection
22 KM1 I Clock mode switching input 1
23 RSTN I System reset input
24 VDDa VCO section power (+5V)
25 CTLN I VCO control input N
Pin Pin
I/O Function
No. Name
26 PCO O PLL phase comparison output
27 (NC)
28 CTLP I VCO control input P
29 VSSa VCO section power (GND)
30 TSTN I Test terminal. Open for normal use
31 KM2 I Clock mode switching input 2
32 KM0 I Clock mode switching input 0
33 FS1 O
Channel status sampling frequency display
output 1
34 FS0 O
Channel status sampling frequency display
output 0
35 CSM I Channel status output method selection
36 EXTW I
External synchronous auxiliary input word
clock
37 DDIN I EIAJ (AES/EBU) data input
38 LR O PLL word clock output
39 VDD Logic section power (+5V)
40 ERR O Data error flag output
41 EMP O
Channel status emphasis control code
output
42 CDO O
3-wire type microcomputer interface data
output
43 CCK I
3-wire type microcomputer interface clock
output
44 CLD I
3-wire type microcomputer interface load
input
