6
Controls and Functions
OPTICAL
MD/TAPE
R
L
R
L
R
L
CENTER
R
L
R
L
R
L
R
L
CAUTION SEE INSTRUCTION MANUAL FOR CORRECT SETTING.
IMPEDANCE SELECTOR
SET BEFORE POWER ON
FRONT
REAR
REAR CENTER
CENTER
MAIN A OR B
A + B
: 6 Ω MIN./SPEAKER
: 4 Ω MIN./SPEAKER
: 4 Ω MIN./SPEAKER
: 4 Ω MIN./SPEAKER
: 4 Ω MIN./SPEAKER
: 8 Ω MIN./SPEAKER
FRONT
REAR
REAR CENTER
CENTER
MAIN A OR B
A + B
: 8 Ω MIN./SPEAKER
: 8 Ω MIN./SPEAKER
: 8 Ω MIN./SPEAKER
: 8 Ω MIN./SPEAKER
: 8 Ω MIN./SPEAKER
: 16 Ω MIN./SPEAKER
TUNER
VOLTAGE SELECTOR
q
w9
4
6
0
7
1
25
8
e

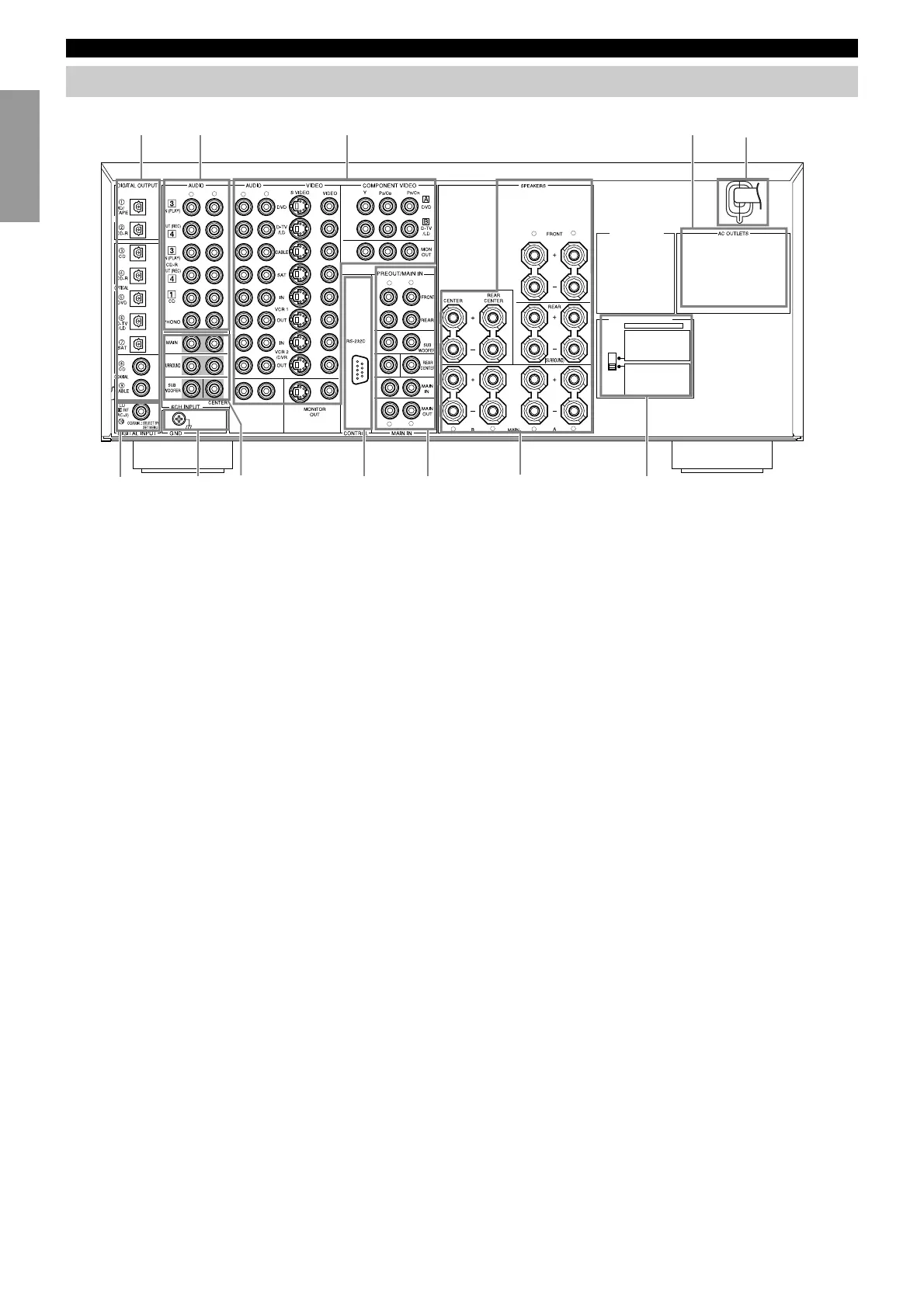

Rear panel
1 Audio component jacks
2 Video component jacks
4 Speaker terminals
5 AC OUTLETS
Use these outlets to supply power to your other audio/video
component.
6 IMPEDANCE SELECTOR
7 DIGITAL OPTICAL/COAXIAL jacks
8 6CH INPUT jacks
9 PRE OUT/MAIN IN jacks
0 AC power cord
Connect to a power outlet.
General, China, and U.K. models cannot disconnect the AC
power cord from the unit.
q GROUND terminal
w RS232C/CTRL OUT
These are control expansion terminals for Substitute Custom
Installation use. Consult your dealer for details.
e q RF (AC-3) input jack
General and China models only.
(General and China models)
