CONTROLS AND FUNCTIONS
8
1 Decoder indicators
When any of this unit’s decoders function, the respective
indicator lights up.
2 VIRTUAL indicator
Lights up when Virtual CINEMA DSP is active (see
page 36).
3 SILENT CINEMA indicator
Lights up when headphones are connected and a sound
field program is selected (see page 31).
4 Input source indicators
A cursor lights to show the current input source.
5 Sound field indicators
Light to indicate the active DSP sound fields.
6 CINEMA DSP indicator
Lights up when you select a CINEMA DSP sound field
program.
7 YPAO indicator
Lights up during the auto setup procedure and when the
auto setup speaker settings are used without any
modifications.
8 AUTO indicator
(RX-V757 only)
Lights up when this unit is in automatic tuning mode.
9 TUNED indicator
(RX-V757 only)
Lights up when this unit is tuned into a station.
0 STEREO indicator
(RX-V757 only)
Lights up when this unit is receiving a strong signal for an
FM stereo broadcast while the AUTO indicator is lit.
A MEMORY indicator
(RX-V757 only)
Flashes to show that a station can be stored.
B MUTE indicator
Flashes while the MUTE function is on.
C VOLUME level indication
Indicates the current volume level.
D PCM indicator
Lights up when this unit is reproducing PCM (Pulse Code
Modulation) digital audio signals.
E STANDARD indicator
Lights up when a decoder is selected (see page 34).
F NIGHT indicator
Lights up when you select night listening mode.
G SP A B indicators
Light up according to the set of front speakers selected.
Both indicators light up when both sets of speakers are
selected.
H Headphones indicator
Lights up when headphones are connected.
I HiFi DSP indicator
Lights up when you select a HiFi DSP sound field
program.
J Multi-information display
Shows the current sound field program name and other
information when adjusting or changing settings.

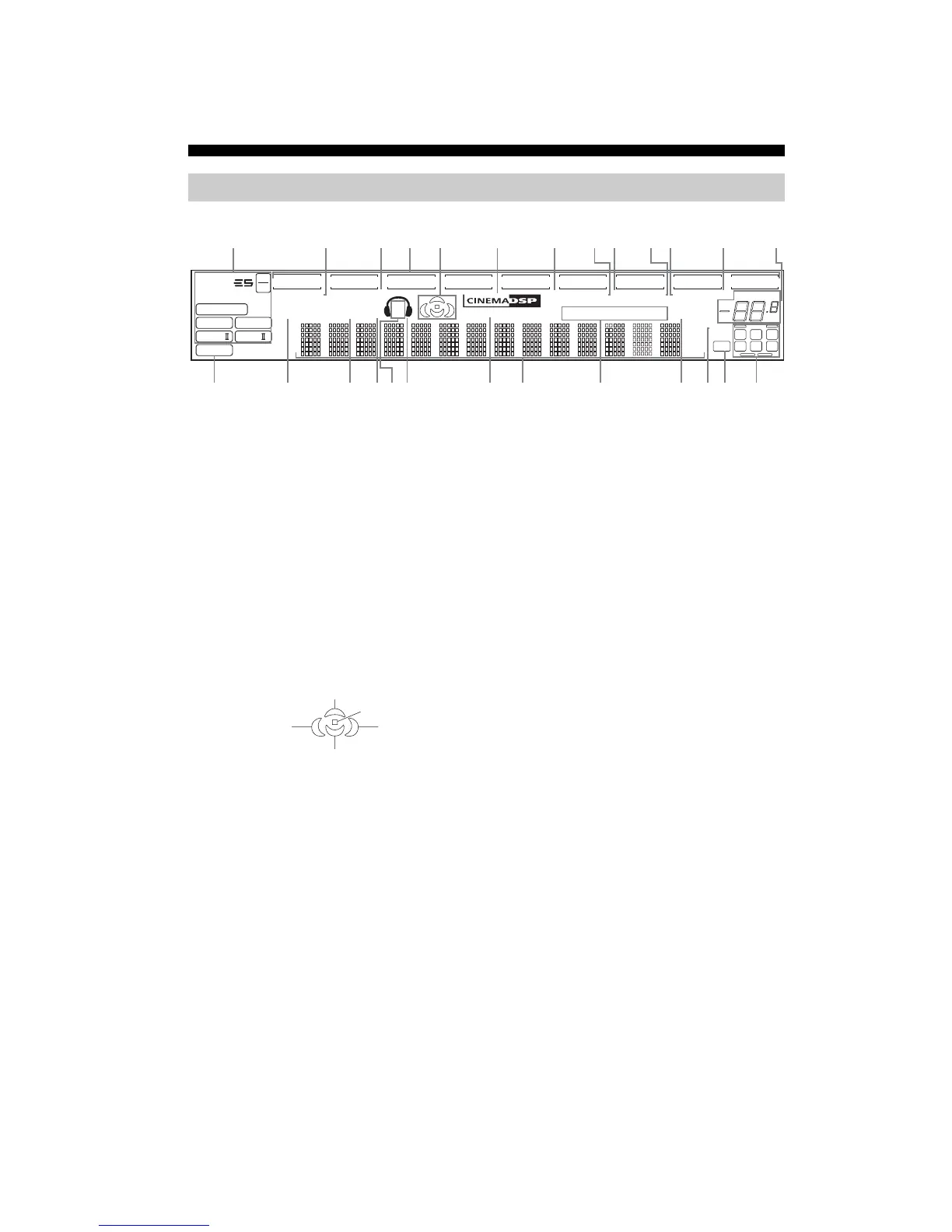

Front panel display
PHONOCDTUNER MD/CD-R DVD DTV/CBL V-AUX VCR1 DVR/VCR2
96
24
q PL q EX
q PL
MATRIX DISCRETE
SILENT CINEMA
NIGHT
ZONE2STANDARD
AUTO
YPAO
PS
HOLD
RT CT EONPTYPTY
TUNED STEREO MUTE
VOLUME MEMORY
SLEEP
VIRTUAL
PCM
q PL x
A B
SP
mS
dB
ft
dB
96/24
HiFi DSP
LFE
LCR
SL SB SR
q DIGITAL
t
12345678*9* A* BC0*
O*
IJ M
KNLED
FH
G
P*
* RX-V757 only
Presence DSP sound field
Listening position
Left surround
DSP sound field
Right surround
DSP sound field
Surround back DSP sound field
