19
CONNECTIONS
PREPARATION
English
■ Connections for audio components
■ Connecting a turntable
PHONO jacks are for connecting a turntable with an MM
or high-output MC cartridge. If you have a turntable with
a low-output MC cartridge, use an in-line boosting
transformer or MC-head amplifier when connecting to
these jacks.
y
Connect your turntable to the GND terminal to reduce noise in
the signal. However you may hear less noise without the
connection to the GND terminal for some record players.

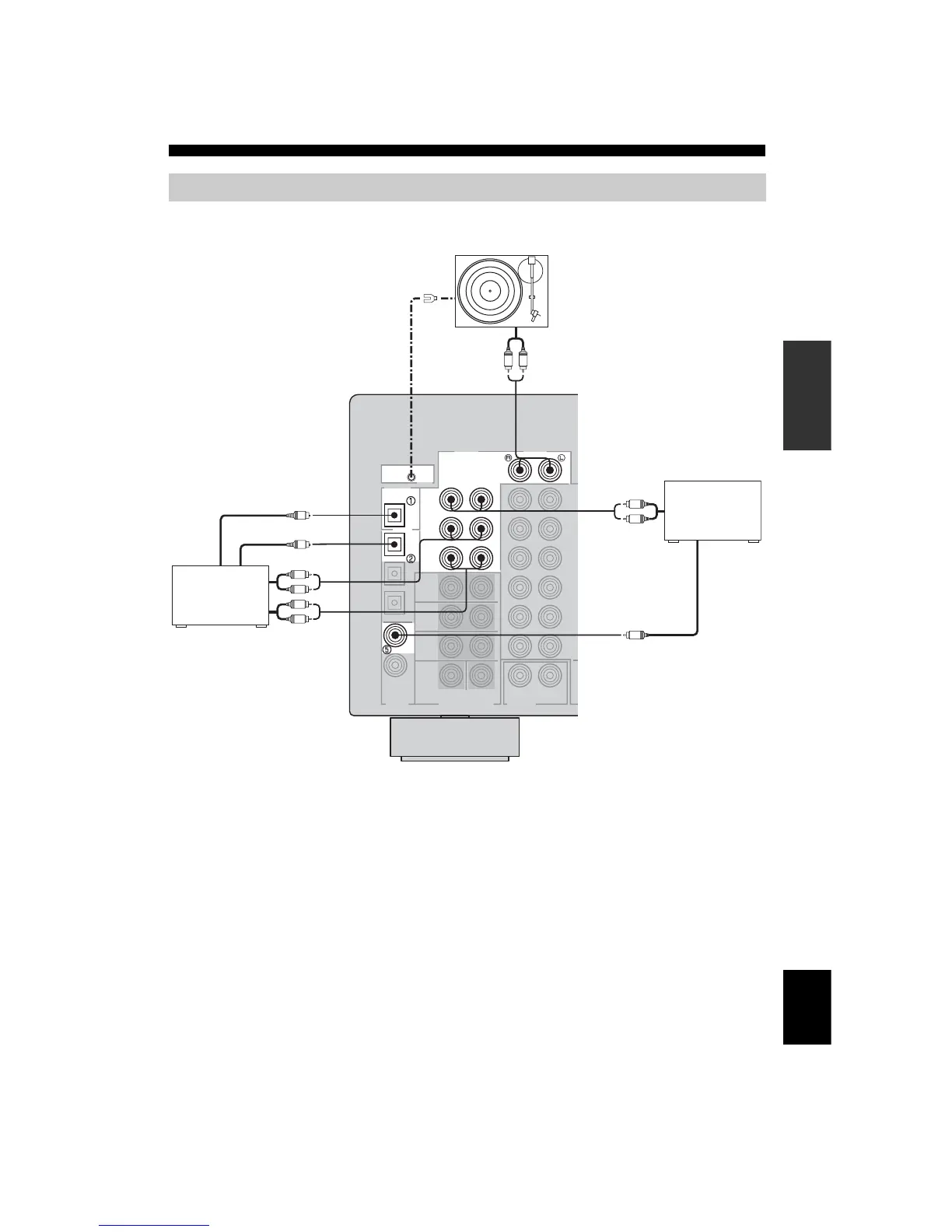

Connecting audio components
GND
AUDIO AUDIO
DIGITAL
INPUT
CD
COAXIAL
MD/CD-R
MD/CD-R
OUT
(REC)
IN
(PLAY)
MD/
CD-R
CD
PHONO
DIGITAL
OUTPUT
OPTICAL
L
R
L
R
O
L
R
O
LR
C
CD player
MD recorder or
tape deck
Coaxial out
Audio out
Audio in
Optical in
Audio out
Turntable
GND
Audio out
Optical out
To Next Page
