21
CONNECTIONS
PREPARATION
English
Both FM and AM indoor antennas are included with this
unit. In general, these antennas should provide sufficient
signal strength. Connect each antenna correctly to the
designated terminals.
■ Connecting the AM loop antenna
1 Set up the AM loop antenna.
2 Press and hold the tab to
insert the AM loop antenna
lead wires into the AM ANT
and GND terminals.
3 Orient the AM loop antenna
for the best reception.
• The AM loop antenna should be placed away from this unit.
• The AM loop antenna should always be connected, even if an
outdoor AM antenna is connected to this unit.
• A properly installed outdoor antenna provides clearer reception
than an indoor one. If you experience poor reception quality, an
outdoor antenna may improve the quality. Consult the nearest
authorized YAMAHA dealer or service center about outdoor
antennas.

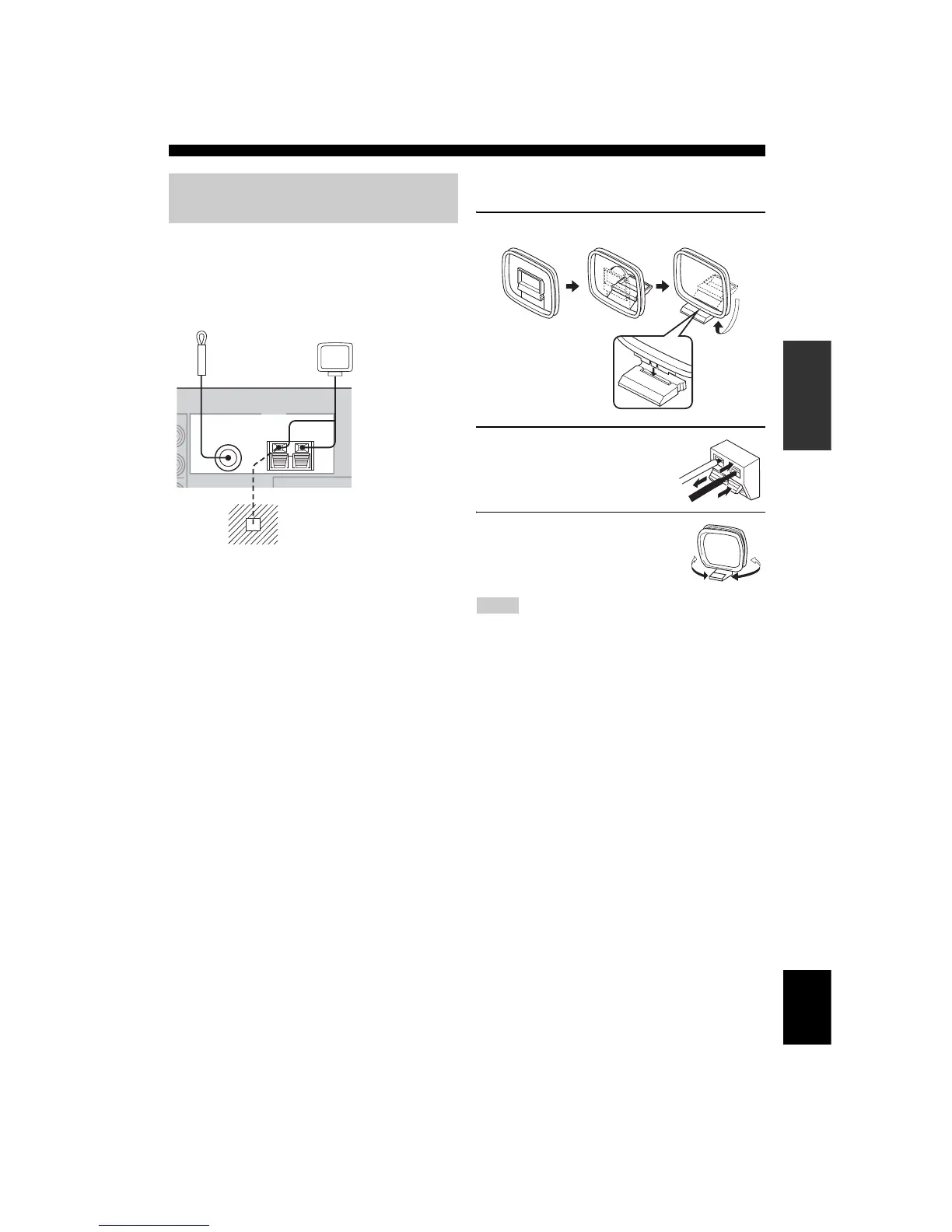

Connecting the FM and AM
antennas (RX-V757 only)
75Ω UNBAL.
FM
ANT
TUNER
AM loop antenna
(included)
Ground (GND terminal)
For maximum safety and minimum
interference, connect the antenna
GND
terminal to a good earth ground. A good
earth ground is a metal stake driven into
moist earth.
Indoor FM antenna
(included)
Notes
To Next Page
