CONNECTIONS
■ Connections for DVD playback
Be sure to connect your video source components in the same way you connect your video monitor to this unit if VIDEO CONV. (see
page 64) is set to OFF. For example, if you connect your video monitor to this unit using a VIDEO connection, connect your video
source components to this unit using the VIDEO connections. (Even when VIDEO CONV. is set to OFF, S-video signals input from
your video source component are automatically converted to composite signals in this unit.)

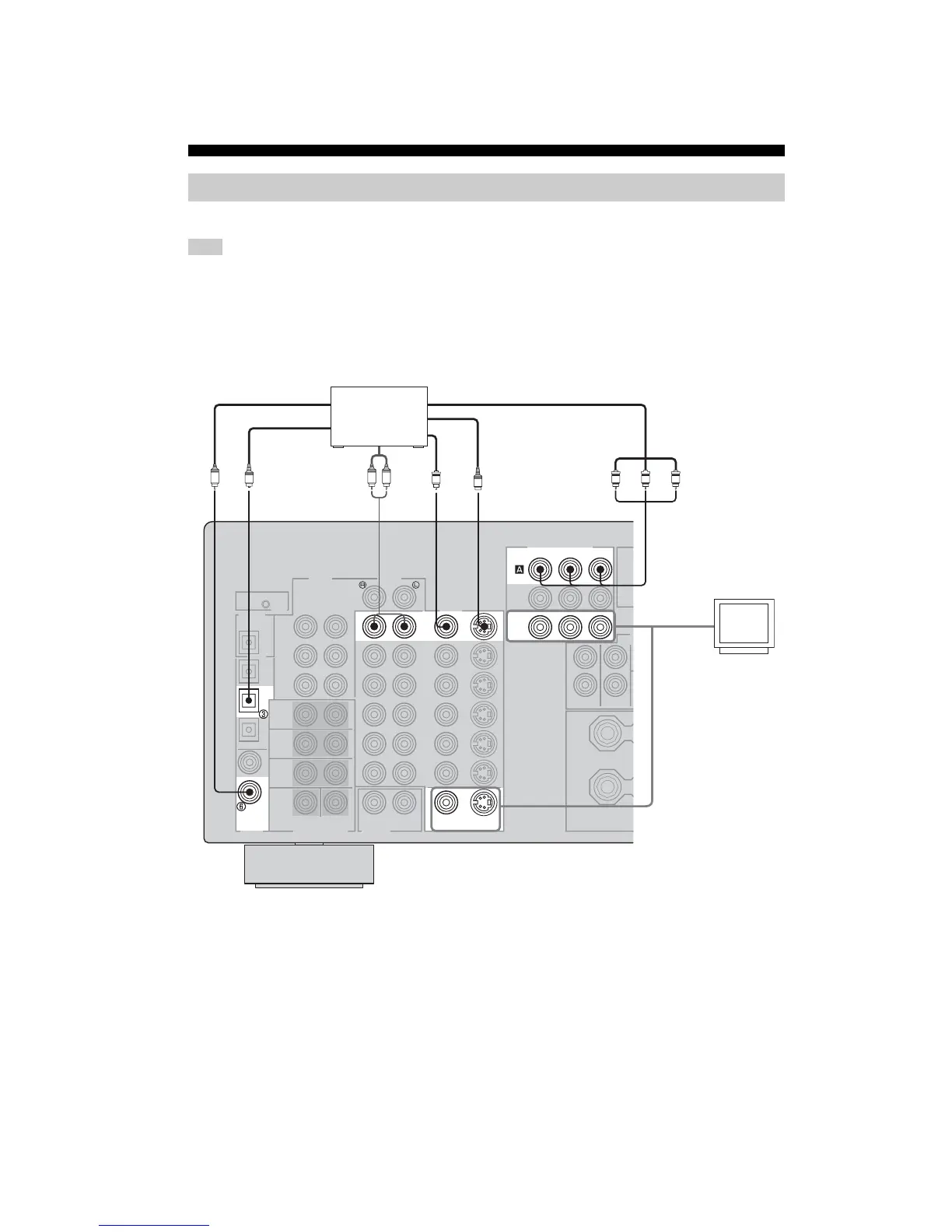

Connecting video components
Note
VIDEO
AUDIO
DIGITAL
INPUT
DVD
DVD
COAXIAL
DVD
MONITOR
OUT
DVD
COMPONENT VIDEO
PR PB Y
VIDEO S VIDEO
MONITOR OUT
S
P
R PB Y
V
LRC
O
DVD player
Video
monitor
Optical out
Video out
Audio out
Video in
Coaxial out
