SYSTEM CONNECTIONS
14

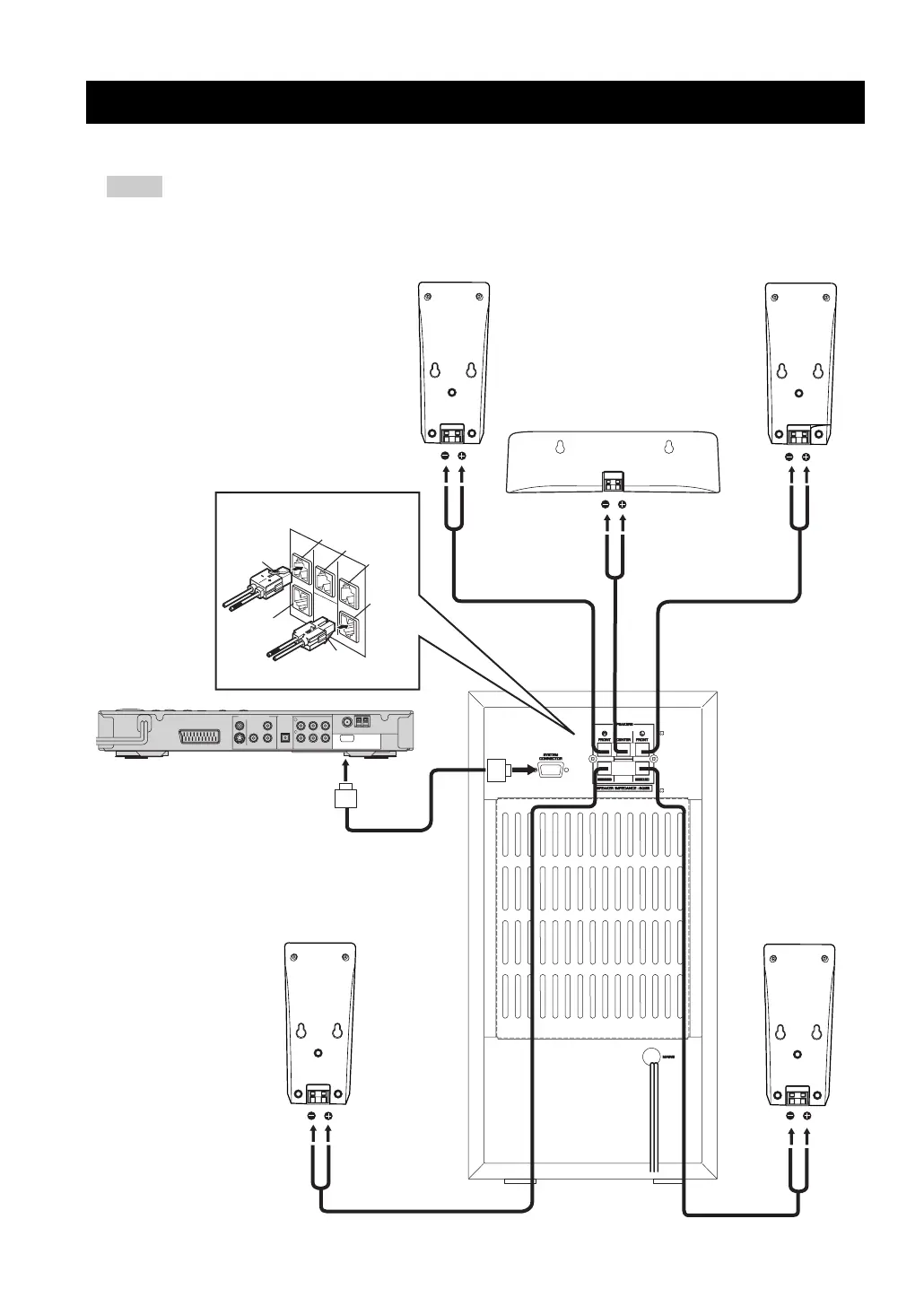

■ Connecting the speakers (DVX-S301)
– Do not connect the power cord of the subwoofer and DVD receiver into an AC outlet until all cable connections are completed.
– Please refer to the pages below for detailed information on how connect each speaker.
SYSTEM CONNECTIONS
Notes
SYSTEM
CONNECTOR
TO SUBWOOFER
L
R
+
–
+
–
+
–
+
–
+
–
Front speaker (R)NX-S301
(page 17)
Surround
speaker (R)
NX-S301
(page 17)
Center speaker
NX-C301
(page 17)
Subwoofer
(NX-SW301)
DVD receiver (DVR-S300)
Front speaker (L) NX-S301
(page 17)
Surround
speaker (L)
NX-S301
(page 17)
Tab
Red
Green
Tab
Gray
White
Blue
