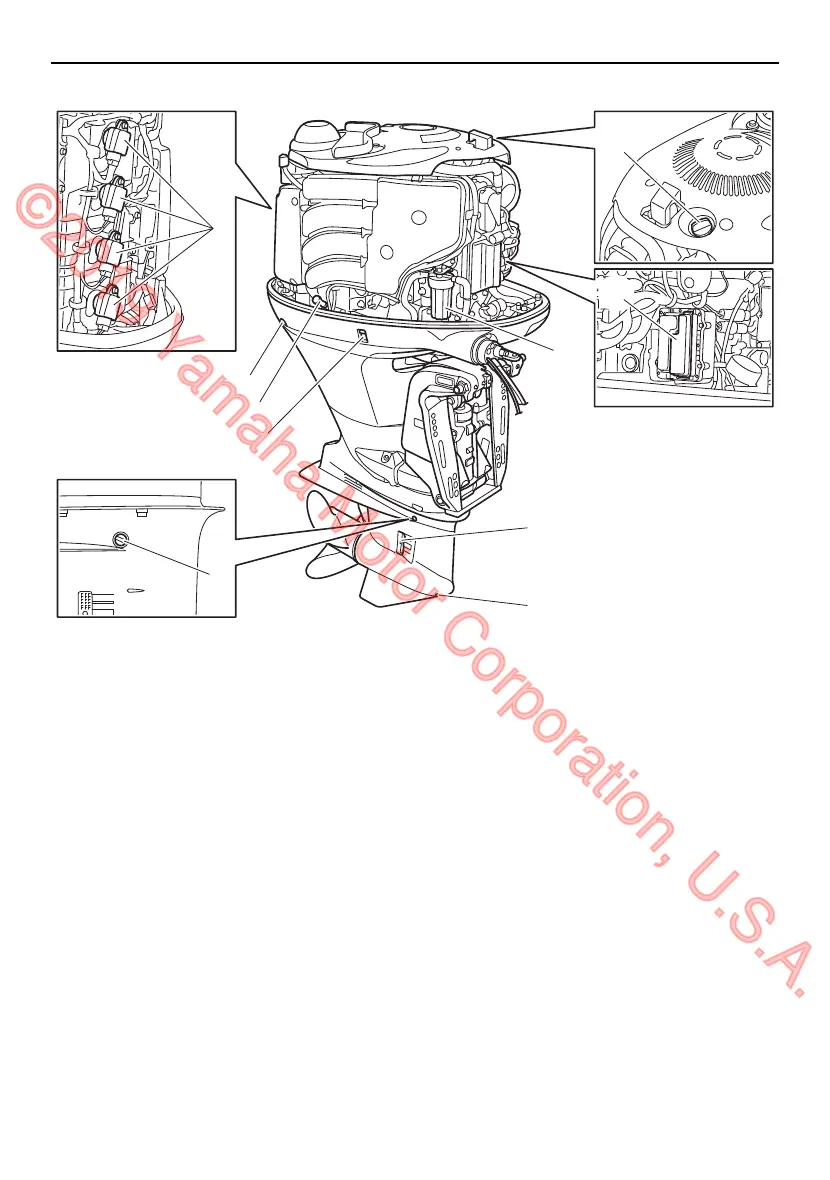

Components
26
8
10
9
2
4
5
3
6
7
1
ZMU07739
1. Ignition coil
2. Oil dipstick
3. Cowling lock lever
4. Power trim and tilt switch
5. Oil level plug
6. Oil filler cap
7. Fuse box
8. Fuel filter
9. Cooling water inlet
10.Gear oil drain screw
