Yamaha F175 - Checking Power Trim and Tilt System

Operation
59
5. Push the cowling lock levers inward to
secure the top cowling.
6. Check the fitting of the top cowling by
pushing it with both hands. NOTICE: If
the top cowling is not installed cor-
rectly, water can enter the top cowling
and damage the engine, or the top
cowling can blow off at high speeds.
[ECM02371]
EMU2915A
Checking power trim and tilt system
WARNING
EWM01931
 Never get under the lower unit while it is
tilted, even when the tilt support lever is
locked. Severe injury could occur if the
outboard motor accidentally falls.
 Body parts can be crushed between the
motor and the clamp bracket when the
motor is trimmed or tilted.
 Be sure no one is near the outboard mo-
tor before performing this check.

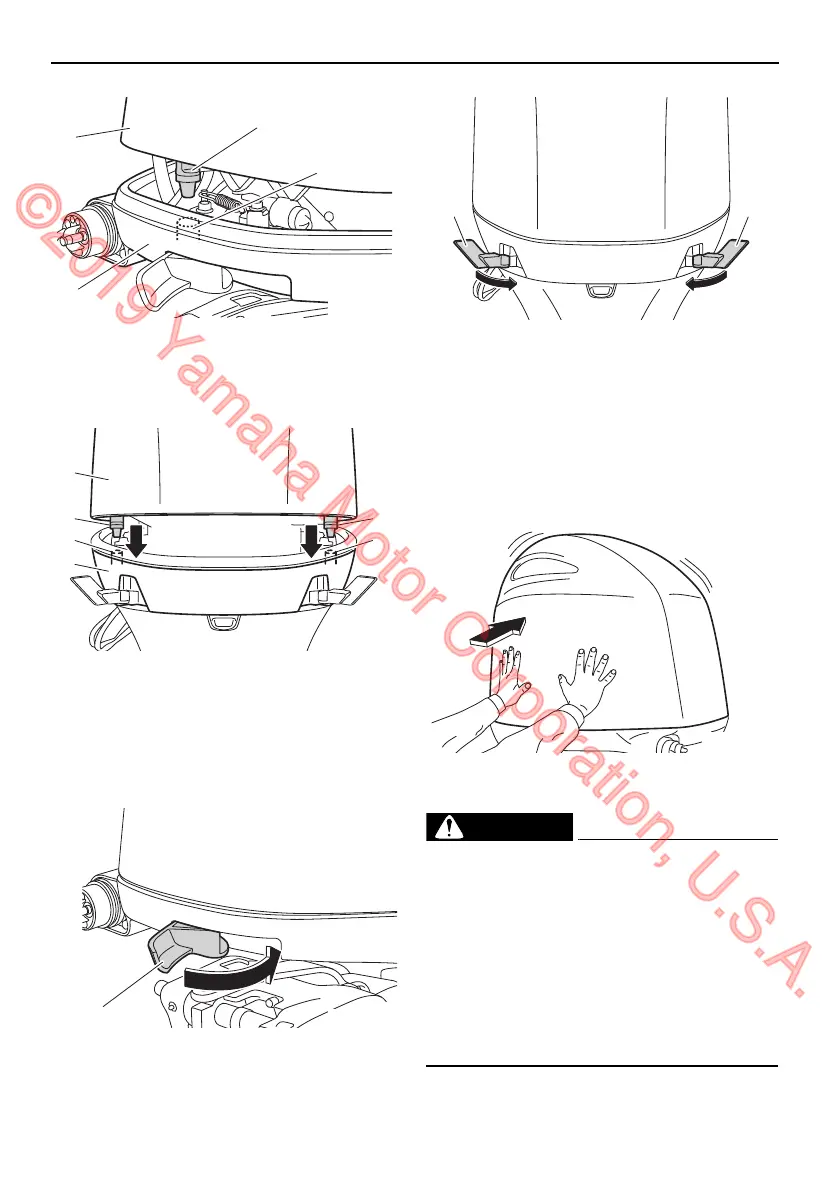

1. Top cowling
2. Protrusion
3. Holder
4. Bottom cowling
1. Top cowling
2. Protrusion
3. Holder
4. Bottom cowling
1. Cowling lock lever
2
3
1
4
ZMU07756
1
2
3
2
3
4
ZMU07757
1
ZMU07758
1. Cowling lock lever
11
ZMU07759
ZMU07760
