Instruments and indicators
38
NOTICE
ECM00023
 Do not continue to run the engine if the
low oil pressure-alert indicator is on and
the engine oil level is lower. Serious en-
gine damage will occur.
 The low oil pressure-alert indicator does
not indicate the engine oil level. Use the
oil dipstick to check the remaining oil
quantity. For further information, see
page 57.
EMU26584
Overheat-alert indicator
If the engine temperature rises too high, the
alert indicator will start to blink. For further in-
formation on reading the indicator, see page
50.
NOTICE
ECM00053
Do not continue to run the engine if the
overheat-alert indicator is on. Serious en-
gine damage will occur.
EMU26603
Digital speedometer
This gauge shows the boat speed and other
information.
All segments of the display will light momen-
tarily after the main switch is turned on and
will return to normal thereafter.
EMU36062
Speedometer
The speedometer displays km/h, mph, or
knots, according to operator preference. Se-
lect the desired units of measurement by set-
ting the selector switch on the back of the
gauge. See the illustration for settings.

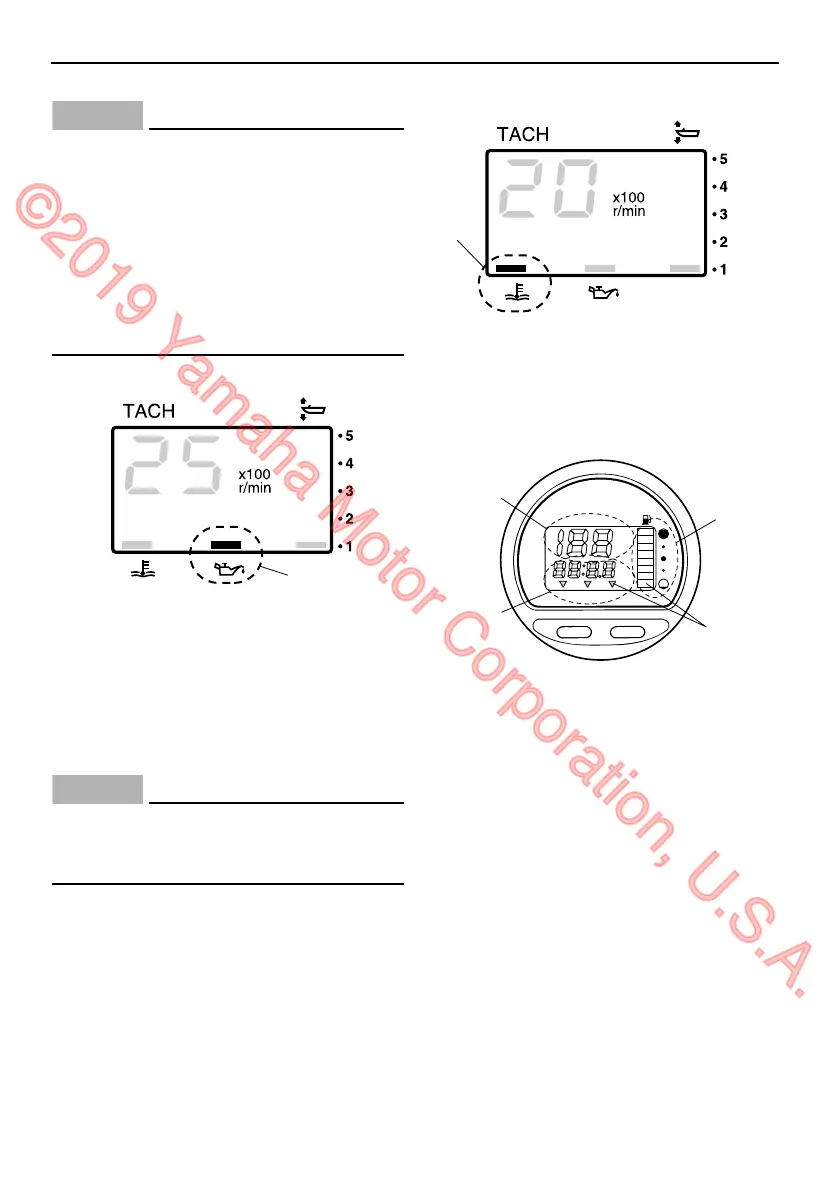

1. Low oil pressure-alert indicator
ZMU01736
1
1. Overheat-alert indicator
1. Speedometer
2. Fuel gauge
3. Trip meter/clock/voltmeter
4. Alert indicator(s)
ZMU01737
1
TRIP TIME BATT
km/h
knot
mph
km
mile
SPEED
YAMAHA
set
mode
1
2
4
3
ZMU07000
