Yamaha F175 - Procedure for Tilting down

Operation
71
EMU42702

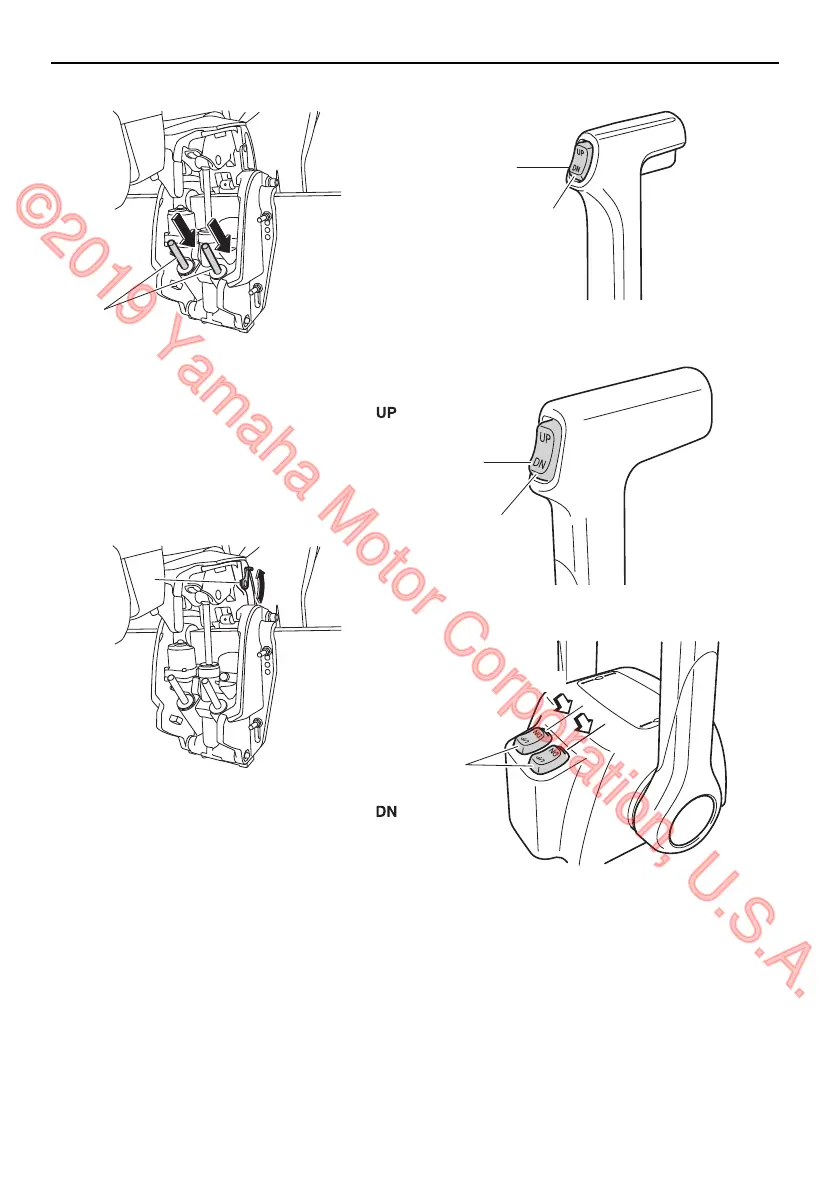

Procedure for tilting down
1. Push the power trim and tilt switch “ ”
(up) until the outboard motor is support-
ed by the tilt rod and the tilt support lever
becomes free.
2. Release the tilt support lever.
3. Push the power trim and tilt switch “ ”
(down) to lower the outboard motor to
the desired position.
1. Trim rod
1. Tilt support lever
1
ZMU07764
1
ZMU07770
1. Power trim and tilt switch
1. Power trim and tilt switch
1. Power trim and tilt switch
ZMU07851
1
DN
ZMU07852
DN
1
ZMU07853
DN
1
