Instruments and indicators
47

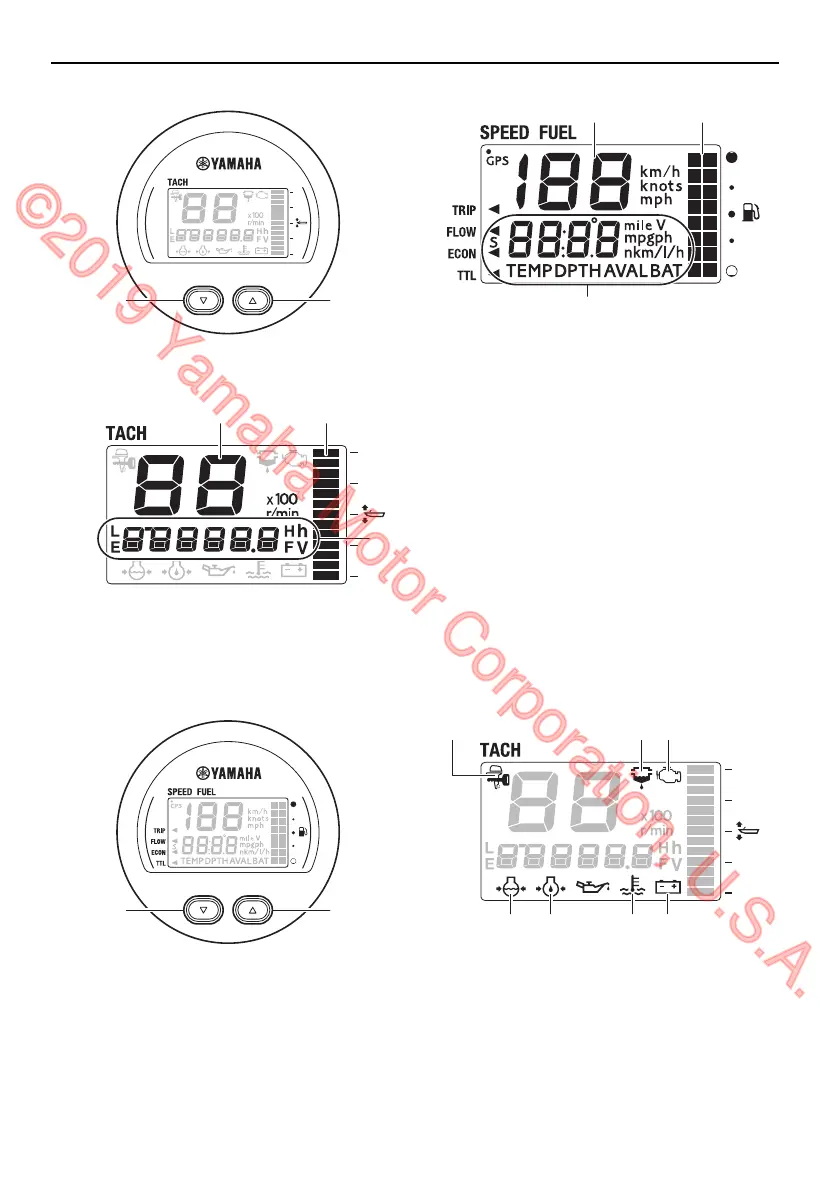

6Y8 Multifunction tachometer
6Y8 Multifunction speed & fuel meter
TIP:
The information displayed on the multifunc-
tion display can be changed. For information
on other settings or changing the displayed
information, see the operation manual includ-
ed with the 6Y8 Multifunction meter.
This manual mainly covers the alert display of
the 6Y8 Multifunction tachometer. See the
following sections for information about the
alert indicators.
Indicators
1. Set button
2. Mode button
1. Tachometer
2. Trim meter
3. Multifunction display
1. Set button
2. Mode button
SET MODE
21
ZMU08407
1 2
3
ZMU08408
SET MODE
21
ZMU08409
1. Speedometer
2. Fuel meter
3. Multifunction display
1. Yamaha Security System indicator (optional)
2. Water separator-alert indicator
3. Engine trouble-alert indicator
4. Battery voltage indicator
5. Overheat-alert indicator
6. Low oil pressure-alert indicator
1
3
2
ZMU08410
1
7 6 5 4
2 3
ZMU08411
