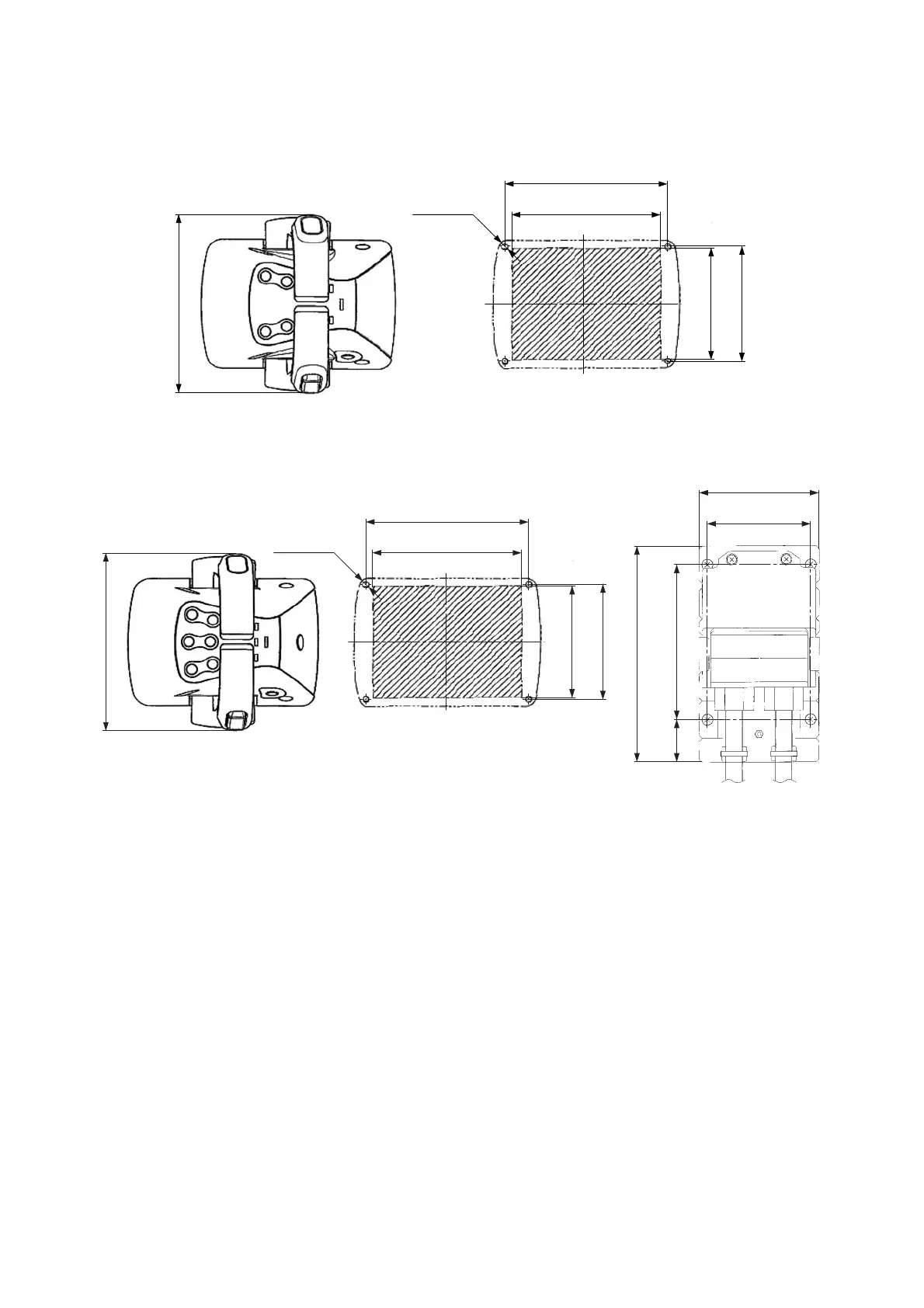

REMOTE CONTROL TYPES AND APPLICATIONS
Twin engine application
Triple engine application
To be continued.
172 (6.77)
Template (twin lever)
132 (5.20)
145 (5.71)
102 (4.02) 105 (4.13)
5.5 (0.22)
Cut out shaded areaCut out shaded area
mm (in.)
172 (6.77)
Template (same as twin engine)
Center RC ECM bracket
* ECM wire harness length:
Approx. 1.5 m (5 ft)
132 (5.20)
145 (5.71)
102 (4.02) 105 (4.13)
5.5 (0.22)
Cut out shaded areCut out shaded areaCut out shaded area
208 (8.19)
149 (5.87)
41
(1.61)
116 (4.57)
100 (3.93)
