Yamaha F200GET User Manual

7-42
(*5)
35
ECM ECM ECM
P
C
S
(*1)
47
18
Fuel tank 2 Fuel tank 1
USB
21
(*4)
20
GPS
To NMEA2000 Network
(*3)
Freshwater
tank
Sewage
tank
22
(*2)
20
(*4)
(*3)
54
(*1)
(*1) For previous digital electronic controlled engine (*2) For previous network system (6Y8) (*3) Engine selection for tachometer (*4) Requires 3 pcs including its related parts (*5) Connect the sensor ground leads to the ground (negative circuit on the battery)
CENTER enginePORT engine STBD engine
36
16
16 16
54
49
42
18
23
24
26
25
4
5
53
48
23
24
26
25
6
19
3
1
13
13
12
12
4
11
5
12
13
13
10
15
13
13
27 28
2nd station helm
Main station helm
(+) (GND)

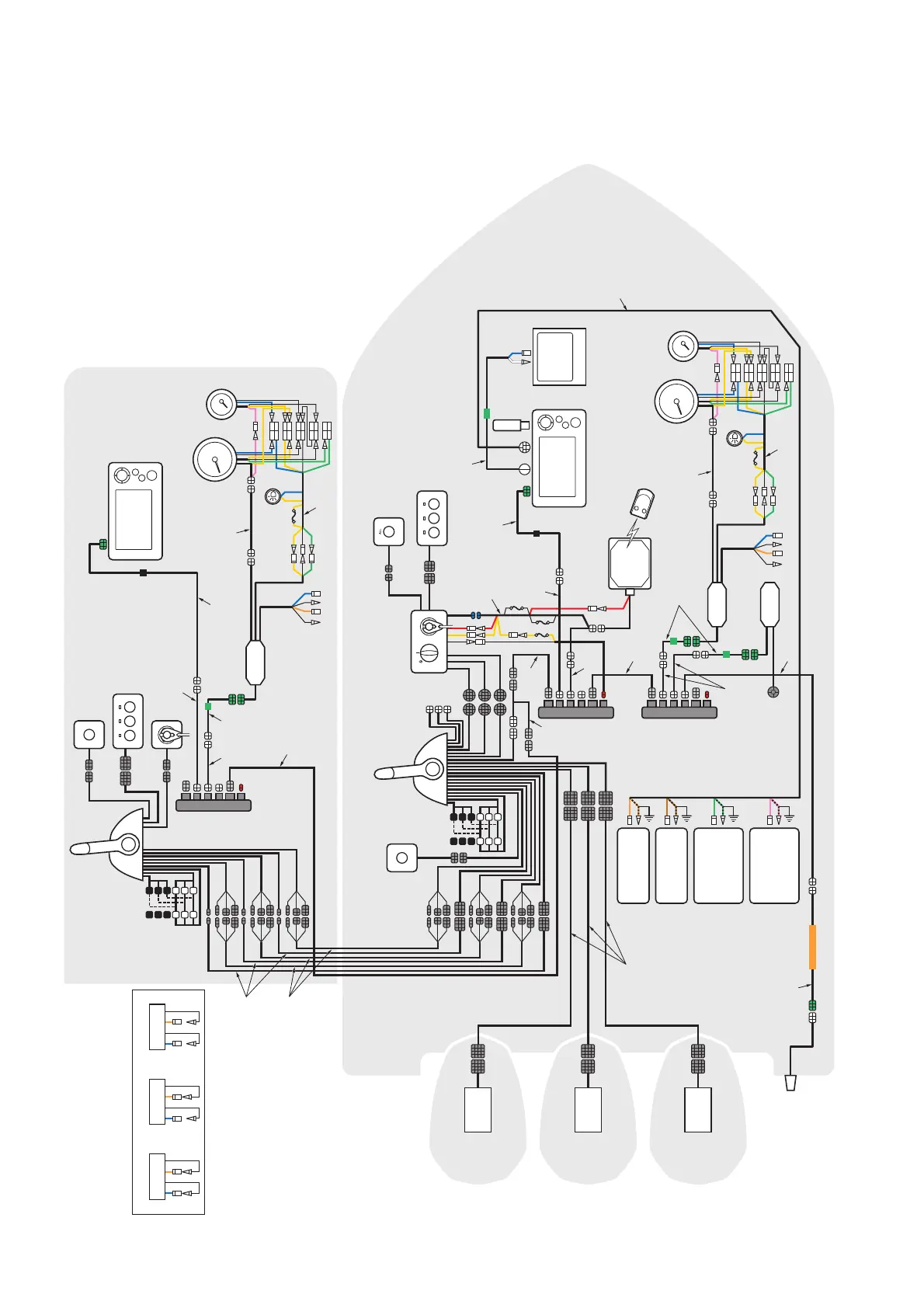

NETWORK WIRING DIAGRAMS
DUAL STATION W/ 6Y9 GAUGE TRIPLE ENGINE APPLICATION

Yamaha F200GET Specifications

General

Horsepower	200 hp
Compression Ratio	10.3:1
Lubrication System	Wet Sump
Starting System	Electric
Gear Ratio	1.75:1
Steering	Remote
Trim & Tilt	Power Trim & Tilt
Full Throttle RPM Range	5000-6000 RPM
Fuel Induction System	Electronic Fuel Injection (EFI)
Exhaust	Through Propeller
Ignition System	TCI
Recommended Fuel	Regular Unleaded
Recommended Oil	Yamalube 4M
Shaft Length	25 inches
Engine Type	4-Stroke, DOHC, 16-Valve In-Line 4
Displacement	2785 cc
