HOUR METER

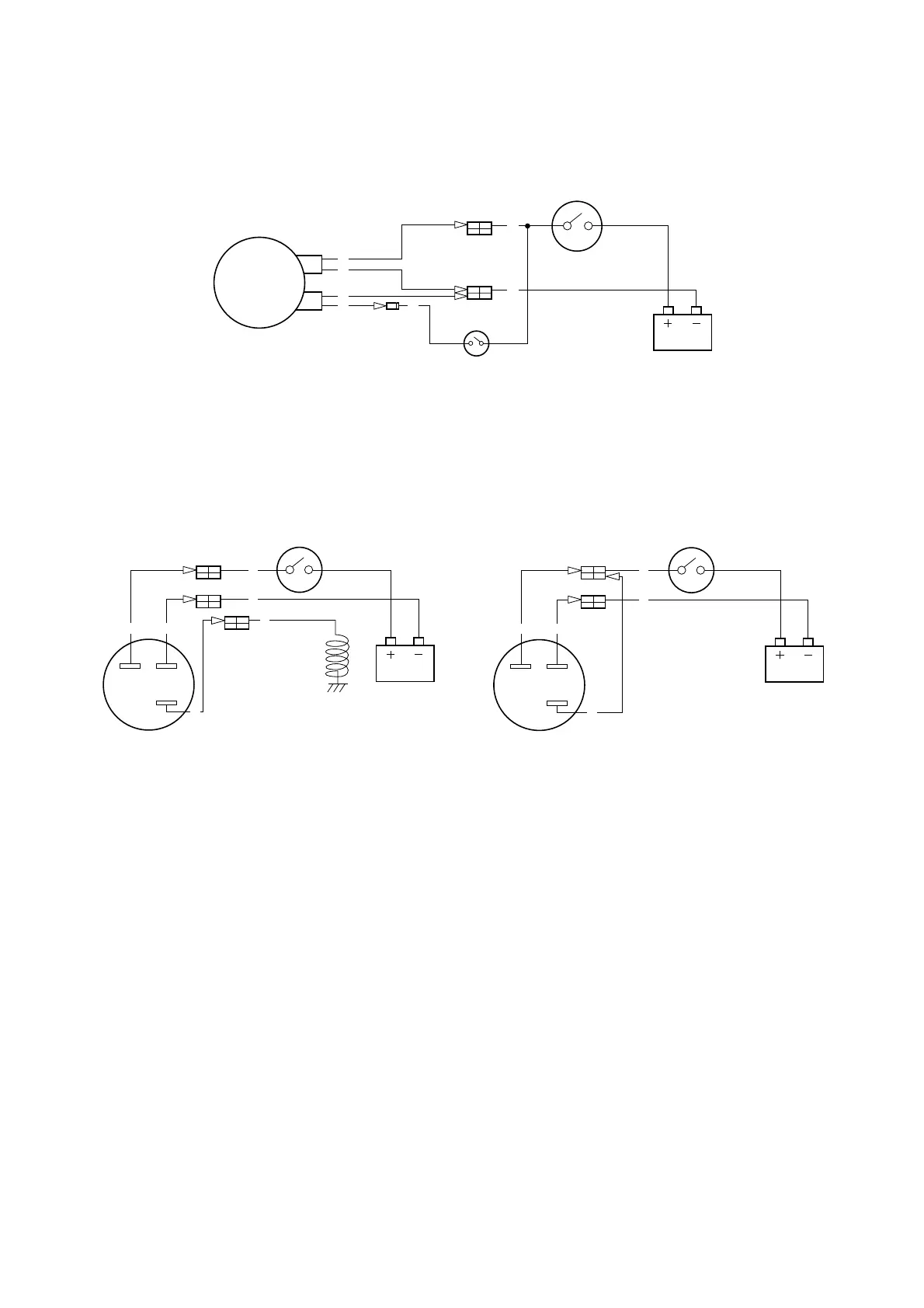

WIRING THE MECHANICAL HOUR METER
The hour meter counts while the ignition switch is “ON”.
WIRING THE DIGITAL HOUR METER
Two counting methods can be selected by connecting wires.
Y
Y
B
B
B
L
Batt.+12V
Battery
GND
IG switch
Lamp switch
Hour meter
L
IG switch
Batt.+12V
GND
Battery
Lighting Coil
(alternator)
Hour meter
Positive Negative
Tach signal
Y
Y B
B
G
G
IG switch
Batt.+12V
GND
Battery
Hour meter
Positive Negative
Power signal
Y
Y B
B
G
COUNTING TIME WHILE ENGINE IS RUNNING COUNTING TIME WHILE IG SWITCH IS “ON”

Yamaha F200GET Specifications

General

Horsepower	200 hp
Compression Ratio	10.3:1
Lubrication System	Wet Sump
Starting System	Electric
Gear Ratio	1.75:1
Steering	Remote
Trim & Tilt	Power Trim & Tilt
Full Throttle RPM Range	5000-6000 RPM
Fuel Induction System	Electronic Fuel Injection (EFI)
Exhaust	Through Propeller
Ignition System	TCI
Recommended Fuel	Regular Unleaded
Recommended Oil	Yamalube 4M
Shaft Length	25 inches
Engine Type	4-Stroke, DOHC, 16-Valve In-Line 4
Displacement	2785 cc
