2-1
E
EMU01206

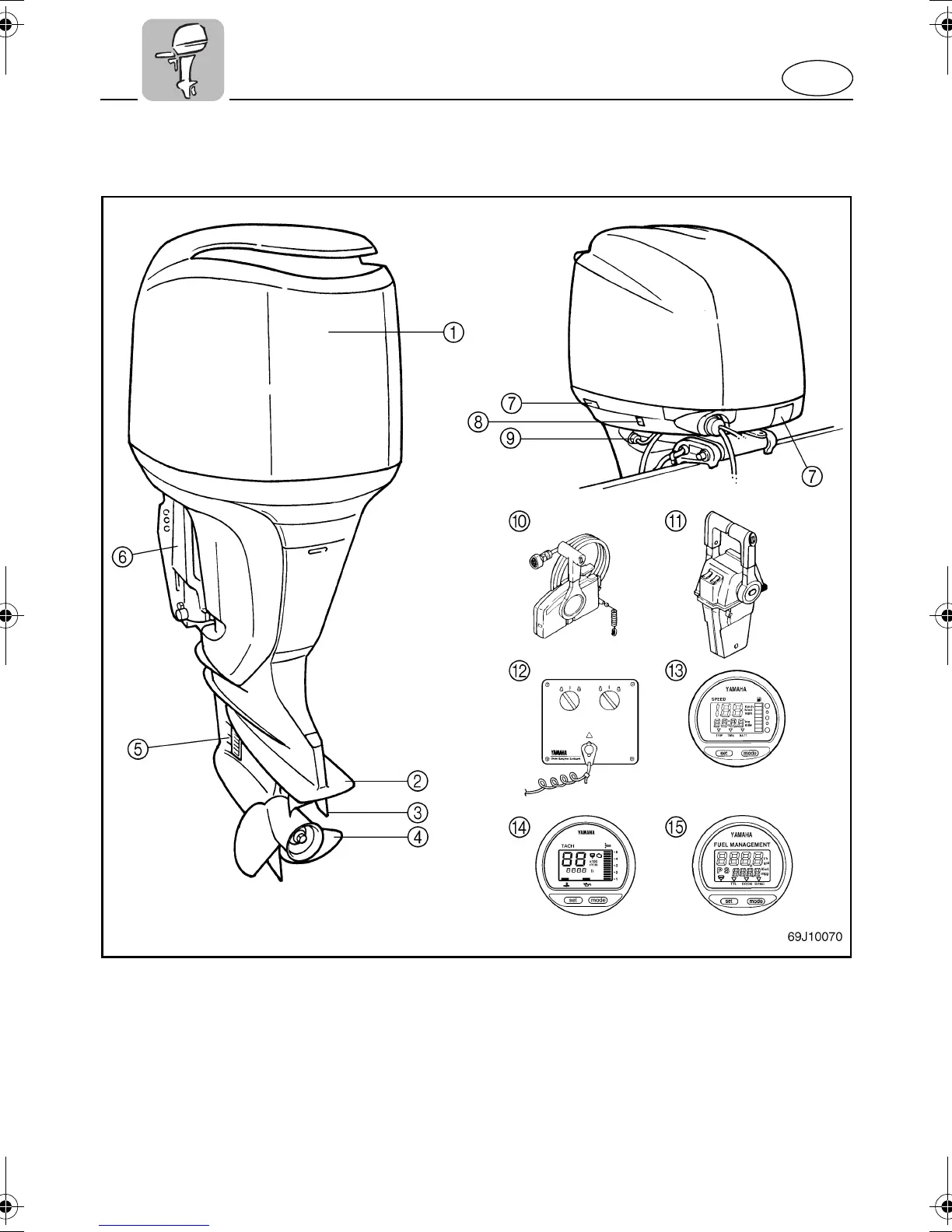

MAIN COMPONENTS
1
Top cowling
2
Anti-cavitation plate
3
Trim tab (Anode)
*
4
Propeller
5
Cooling water inlet
6
Clamp bracket
7
Top cowling lock levers
8
Power trim and tilt switch
9
Flushing device
*
0
Remote control box (Side mount type)
*
A
Remote control box (Binnacle mount type)
*
B
Switch panel (For use with
A
)
*
C
Digital speedometer
*
D
Digital tachometer
*
E
Fuel management meter
* May not be exactly as shown; also may not be in-
cluded as standard equipment on all models.
E_69J10.book Page 1 Monday, May 28, 2001 9:52 AM
