2-16
E
EMU00146¯

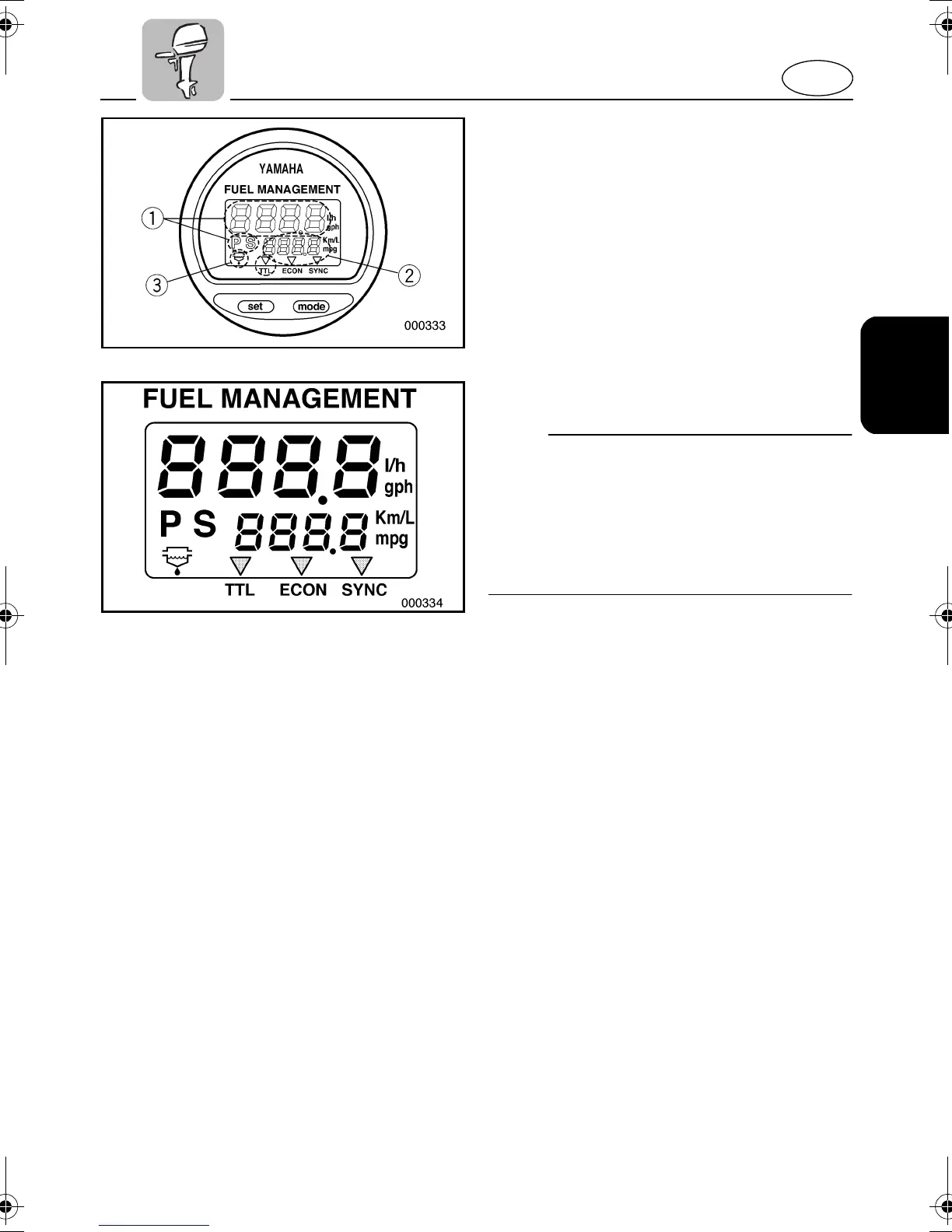

FUEL MANAGEMENT METER
The meter contains the fuel flow meter, fuel
consumption meter, fuel economy meter,
twin engine speed synchronizer, water sep-
arator warning indicator.
1
Fuel flow meter
2
Fuel consumption / Fuel economy meter / Twin
engine speed synchronizer
3
Water separator warning indicator (Operates
only if the sensor has been installed.)
NOTE:
@
After the main switch is first turned on, all
portions of the meter come on as a check.
After a few seconds, the meters will change
to normal operation. Watch the meter when
turning on the main switch to make sure all
segments come on.
@
