Operation
54

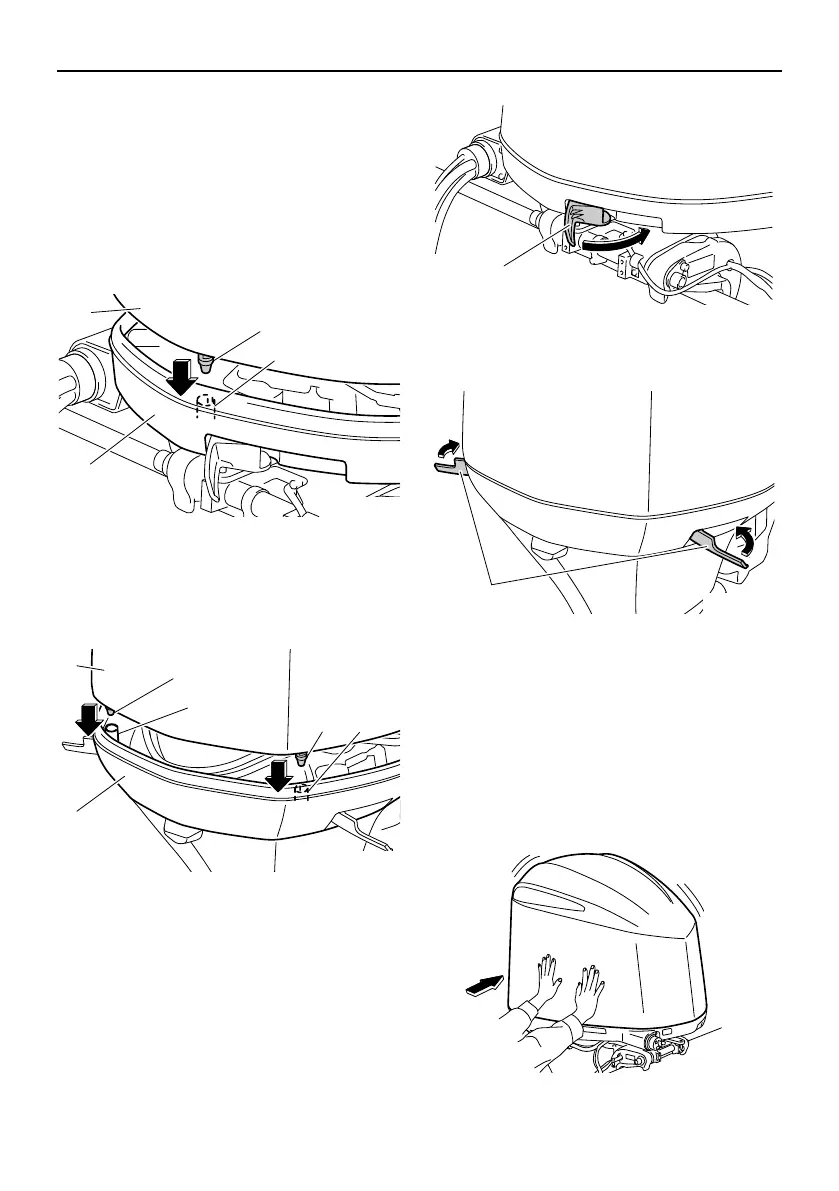

2. Check that the rubber seal is seated all
the way around the bottom cowling.
3. Check that all of the cowling lock levers
are pulled outward.
4. Align the 3 protrusions on the top cowl-
ing with the corresponding holders on
the bottom cowling, and then place the
top cowling on the bottom cowling.
5. Push the cowling lock levers inward to
secure the top cowling.
6. Check the fitting of the top cowling by
pushing it with both hands. NOTICE: If
the top cowling is not installed cor-
rectly, water can enter the top cowl-
ing and damage the engine, or the top
cowling can blow off at high speeds.
[ECM02371]
1. Top cowling
2. Protrusion
3. Holder
4. Bottom cowling
1. Top cowling
2. Protrusion
3. Holder
4. Bottom cowling
2
3
4
1
ZMU07015
2
1
4
3
2 3
ZMU07016
1. Cowling lock lever
1. Cowling lock lever(s)
1
ZMU06920
1
ZMU06921
