Yamaha F30A - Page 103

67C3K11 5-8
1
2
3
4
5
6
7
8
9
No.
Part name Q’ty Remarks
18 Bolt 1 M6 × 25 mm
19 Spiral spring 1
20 E-clip 1
21 Sheave drum 1
22 Drive pawl 1
23 Drive pawl spring 2 1
24 Spring 1
25 Drive pawl spring 1 1
26 Drive plate 1
27 Bolt 1 M6 × 15 mm
S67C5025
E
1
AA
LT
271
LT
271
AA
2
26
27
25
18
17
16
9
8
9
8
15
14
9
8
10
2
12
3
3
13
11
1
4
5
6
7
22
23
24
22 23 24
19
20
21

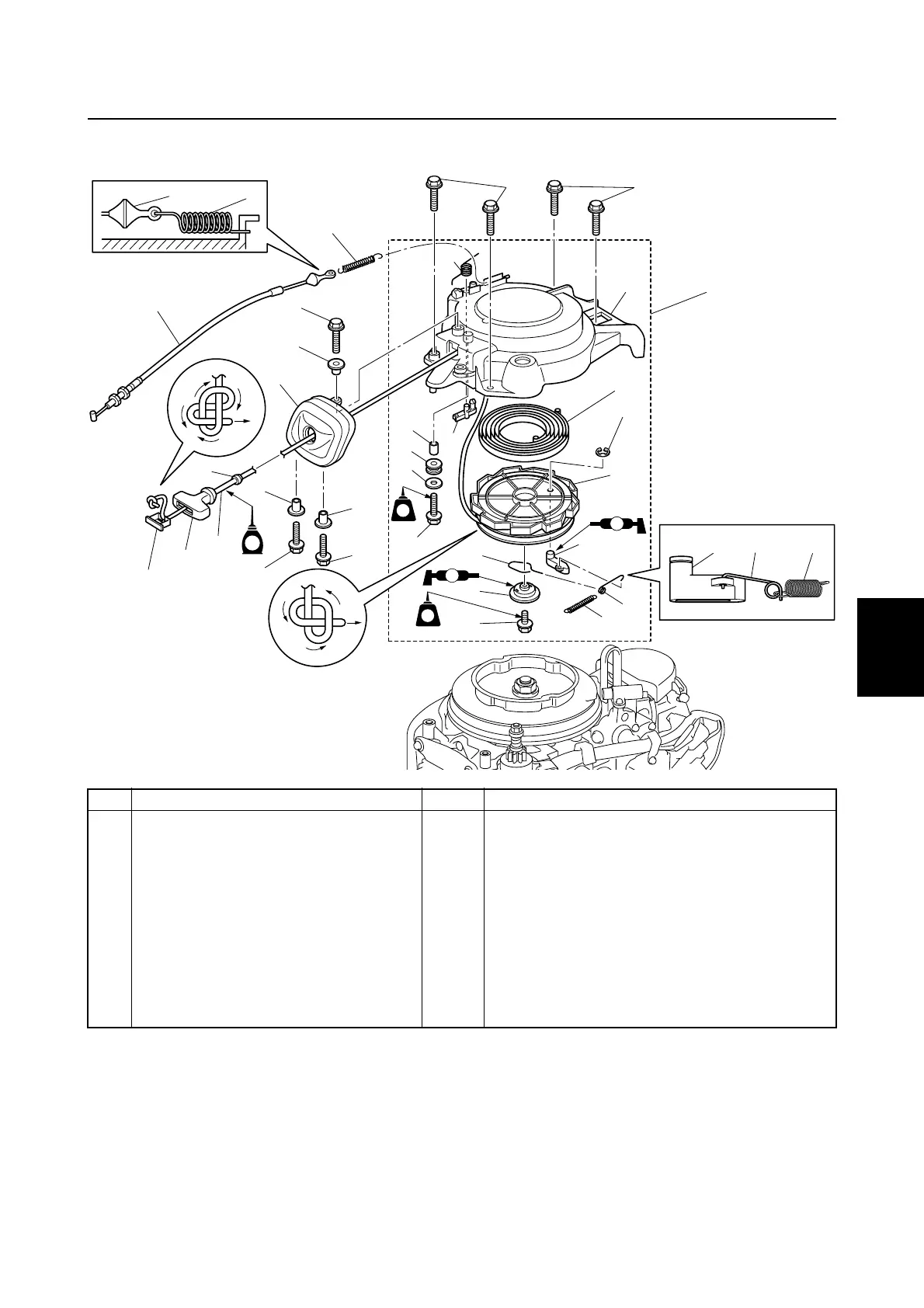

Manual starter (M and W model)
