FUEL
Fuel system
4-1 67C3K11

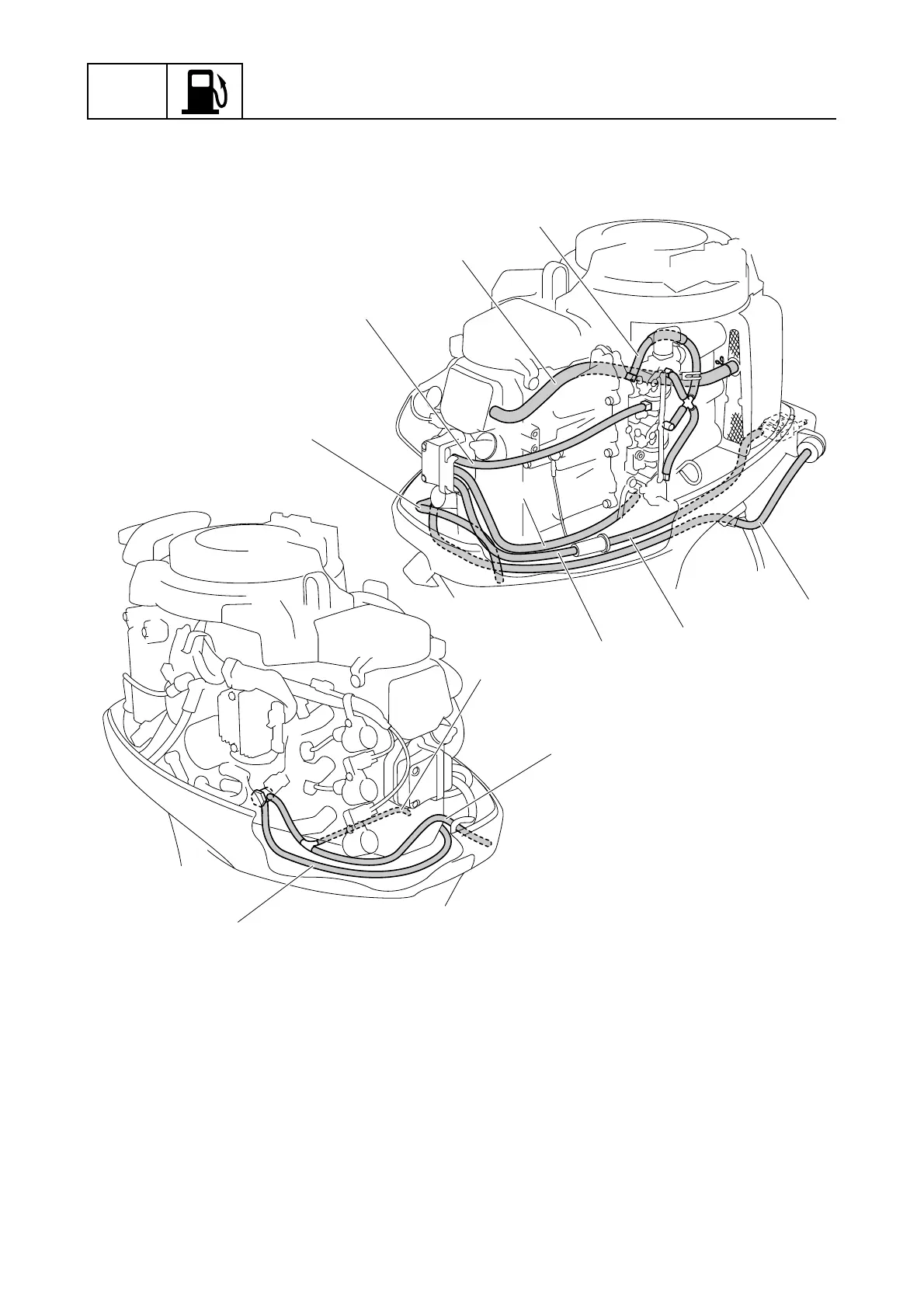

Hose routing
Fuel hose, blowby hose, and cooling water hose
1 Fuel hoses (fuel pump to carburetor assembly)
2 Blowby hose
(cylinder head cover to intake silencer)
3 Breather hoses (carburetor to carburetor joint)
4 Flushing hose
(flushing hose adapter to exhaust cover)
5 Fuel hose (fuel joint to fuel filter assembly)
6 Fuel hose (fuel filter assembly to fuel pump)
7 Cooling water hose
(exhaust cover to cooling water pilot hole)
8 Cooling water hose
(exhaust cover to exhaust guide)
S67C4001
7
8
2
1
7
6
1
5
3
4
4
