Yamaha F30A - Carburetor

67C3K11 4-10
1
2
3
4
5
6
7
8
9

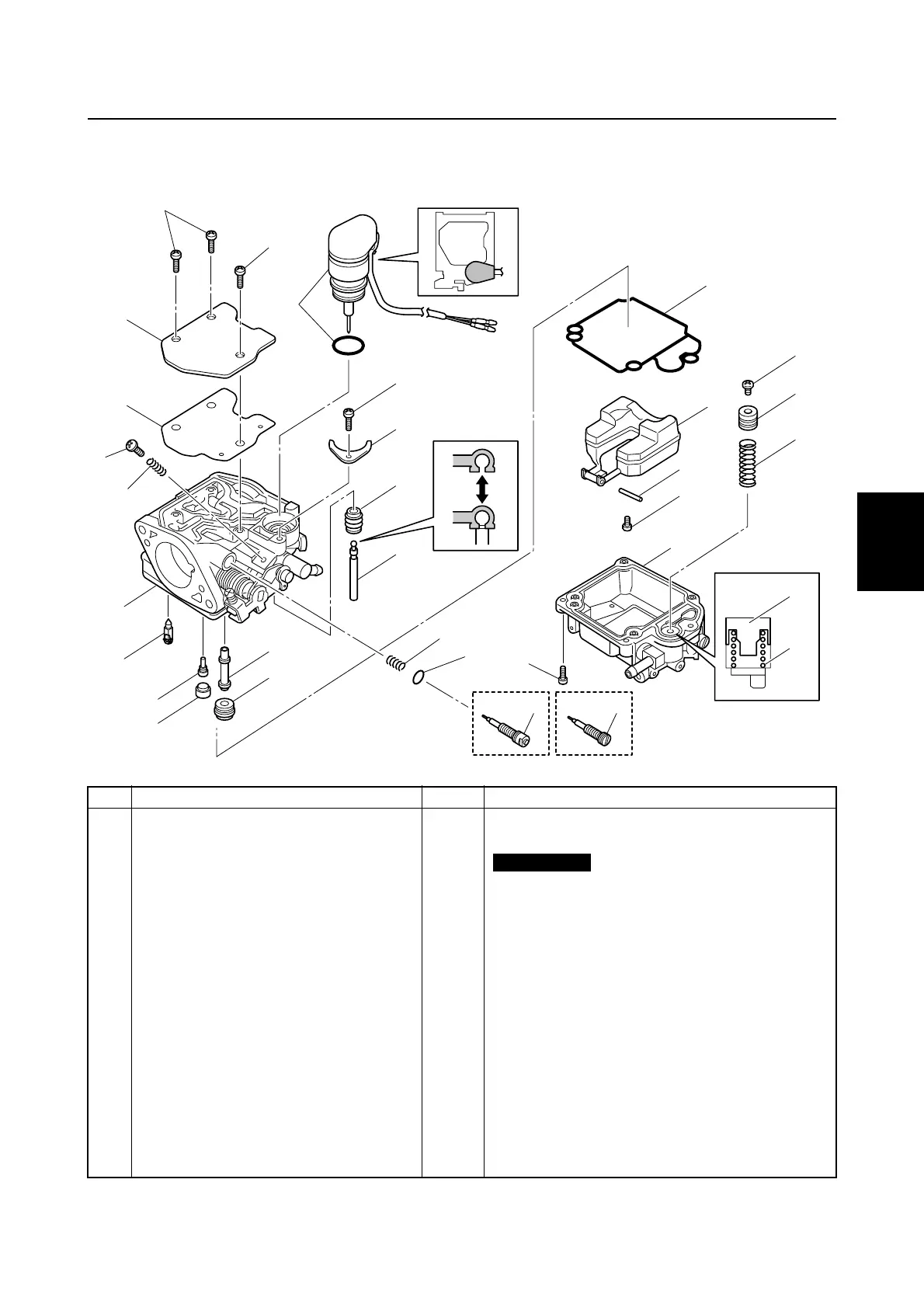

Carburetor
No.
Part name Q’ty Remarks
1Screw 3 ø4 × 9 mm
2 Cover 1
3Gasket 1
Not reusable
4 Throttle stop screw 1
5Spring 1
6 Carburetor body 1
7 Needle valve 1
8 Pilot jet 1
9Plug 1
10 Main nozzle 1
11 Main jet 1
12 Prime Start 1
13 Screw 1 ø4 × 9 mm
14 Retainer 1
15 Boot 1
16 Plunger rod 1
17 Spring 1
S67C4018
3
12
8
7
6
5
4
9
29
23
25
21
22
13
14
15
16
26
27
10
11
27
26
24
28
2
1
1
17
18
19 20
Carburetor unit
