67C3K11 8-12
1
2
3
4
5
6
7
8
9

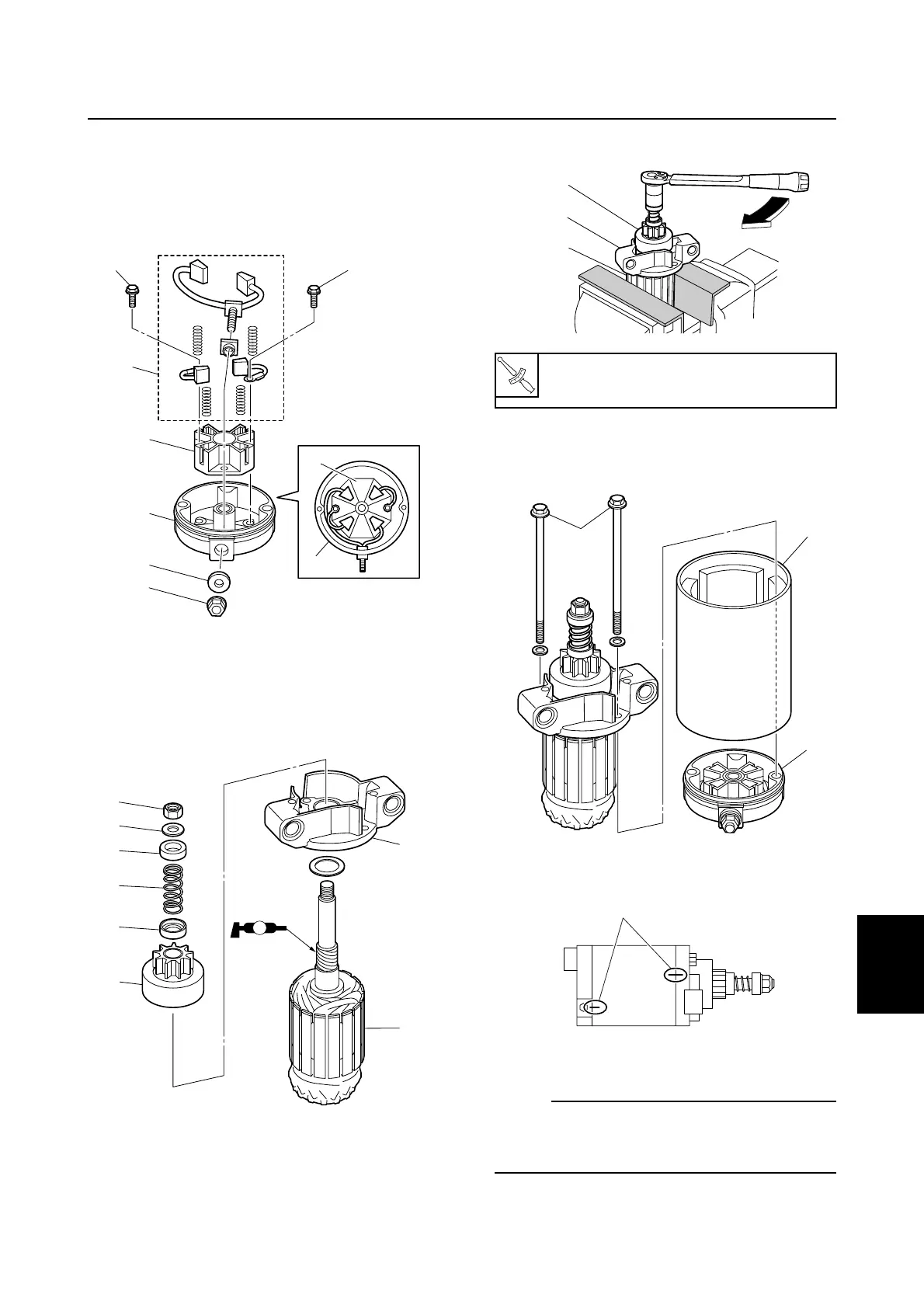

1. Install the brush holder 1 and brush set
2 into the bracket 3, and then tighten
the bolts 4.
2. Install the spacer 5 and nut 6.
3. Install the cover 7, pinion 8, pinion
stoppers 9, spring 0, and washer A to
the armature B, and then tighten the nut
C to the specified torque.
4. Install the stator D and bracket E, and
then tighten the bolts F.
NOTE:
• Align the line marks a as shown.
• Check the starter motor operation again
after assembling it.
S67C8025
1
3
5
3
1
2
44
6
S67C8067
9
9
8
7
B
C
A
0
AA
T
R
.
.
Pinion stopper nut C:
30 N·m (3.0 kgf·m, 22.1 ft·lb)
S67C8068
8
7
B
S67C8026
D
E
F
S67C8027
a
Starter motor (E and W model)
