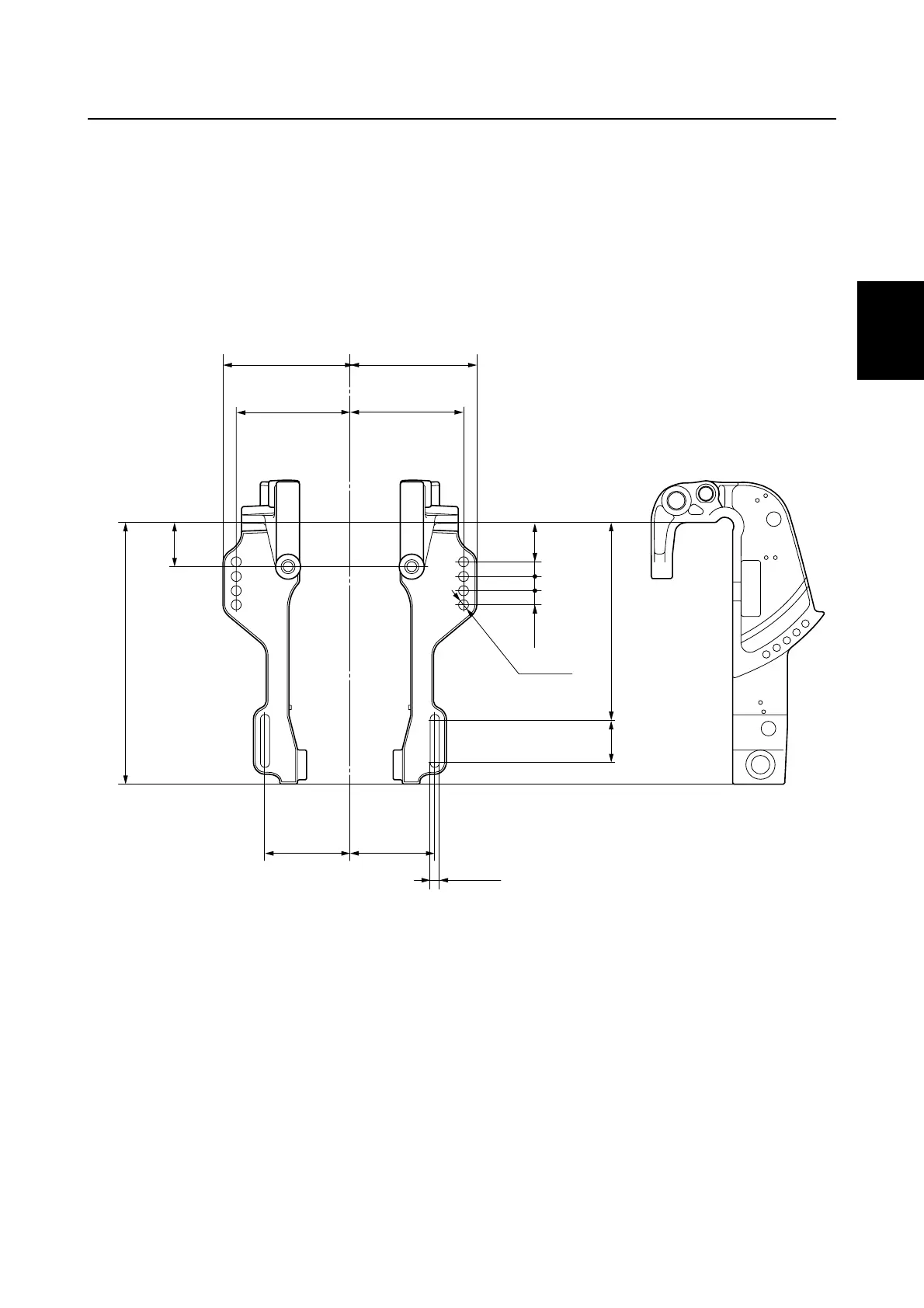

Clamp bracket
S67C2005
mim (in)
180 (7.1) 180 (7.1)
124.5 (4.9) 124.5 (4.9)
338 (13.3)
254 (10.0)
55.5
(2.2)
57
(2.2)
13 (0.5)
18.5
(0.7)
50.8
(2.0)
13 (0.5)
163.5 (6.4) 163.5 (6.4)
Maintenance specification
