FUEL

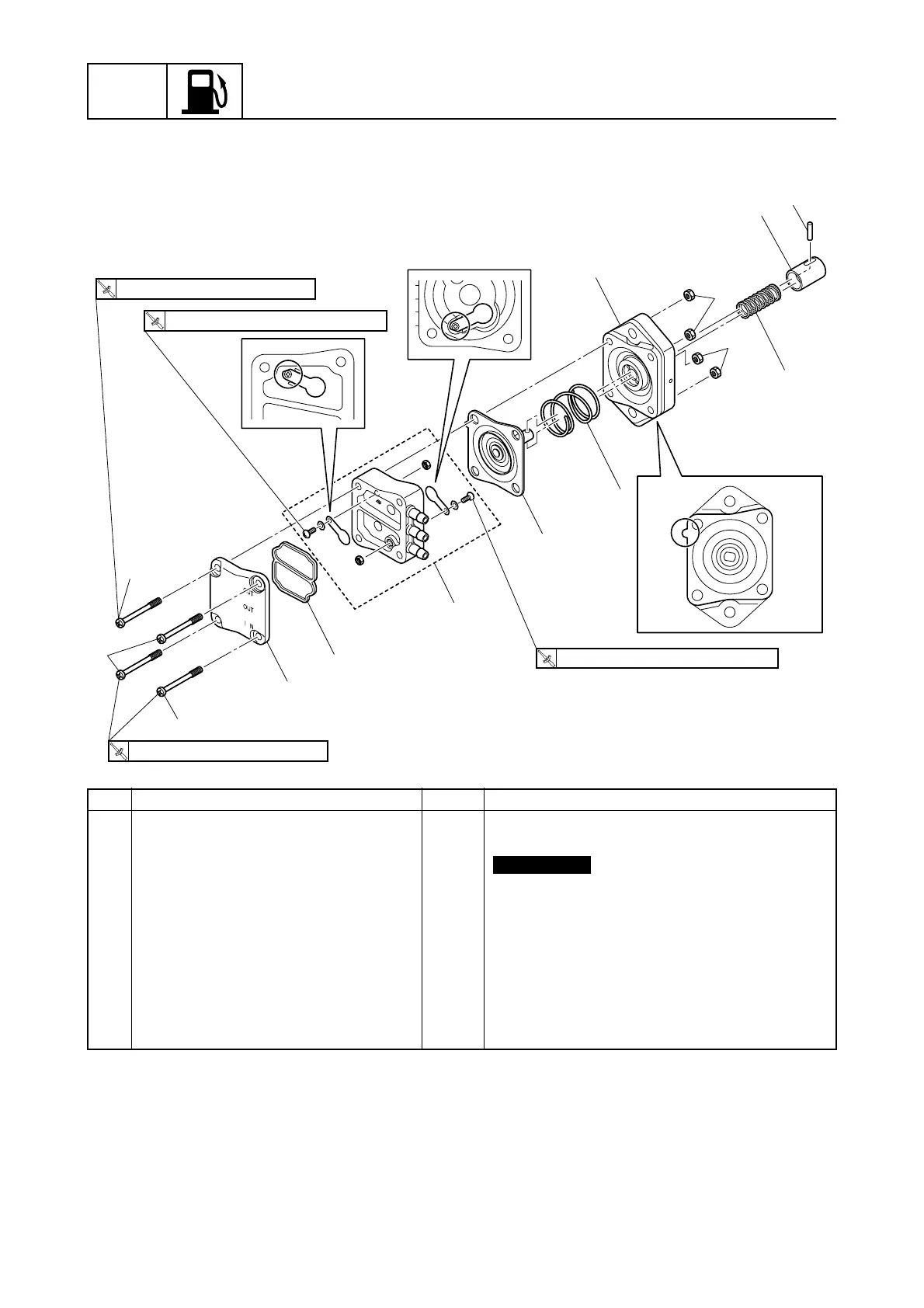

Fuel system
4-3 67C3K11
No.
Part name Q’ty Remarks
1Screw 4 ø5 × 43 mm
2 Cover 1
3 Diaphragm 1
Not reusable
4 Fuel pump body 2 assembly 1
5 Diaphragm 1
6Spring 1
7 Fuel pump body 1 1
8Nut 4
9Spring 1
10 Plunger 1
11 Pin 1
S67C4003
1
1
6
5
4
3
2
1
9
8
8
10
7
11
R
.
.
0.5 N
·
m (0.05 kgf
·
m, 0.37 ft
·
lb)
R
.
.
0.5 N
·
m (0.05 kgf
·
m, 0.37 ft
·
lb)
T
R
.
.
3 N
·
m (0.3 kgf
·
m, 2.2 ft
·
Ib)
T
R
.
.
3 N
·
m (0.3 kgf
·
m, 2.2 ft
·
Ib)
