Yamaha F60C - Clamp Brackets and Swivel Bracket

BRKT
Bracket unit
7-25
6C13G11

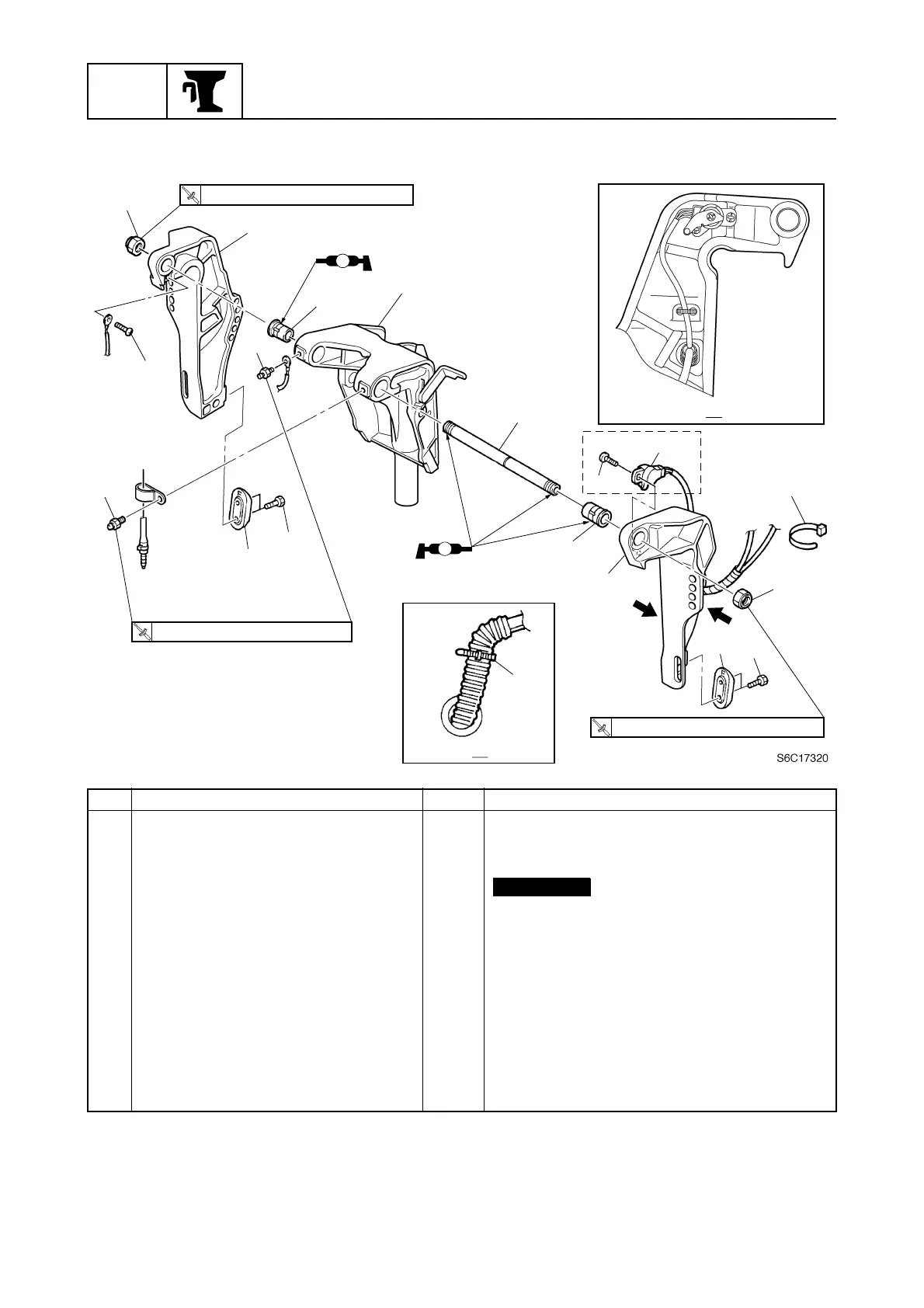

Clamp brackets and swivel bracket
7
No. Part name Q’ty Remarks
1 Swivel bracket assembly 1
2Screw 2 ø6
×
16 mm/Power trim and tilt model
3 Trim sensor 1 Power trim and tilt model
4 Plastic tie 1
Not reusable
Power trim and tilt model
5 Self-locking nut 2
6Bolt 4 M6
×
25 mm
7 Anode 2
8 Clamp bracket 1
9 Bushing 1
10 Through tube 1
11 Grease nipple 2
12 Screw 1 ø6
×
8 mm
13 Clamp bracket 1
S6C17320
A
A
B
B
5
13
9
10
9
8
2
3
4
5
7
6
11
12
11
7
6
1
4
T
R
.
.
3 N
·
m (0.3 kgf
·
m, 2.2 ft
·
Ib)
T
R
.
.
22 N
·
m (2.2 kgf
·
m, 16.2 ft
·
Ib)
T
R
.
.
22 N
·
m (2.2 kgf
·
m, 16.2 ft
·
Ib)
AA
AA
