Yamaha F60C - Power Trim and Tilt Motor

BRKT
Bracket unit
7-31
6C13G11

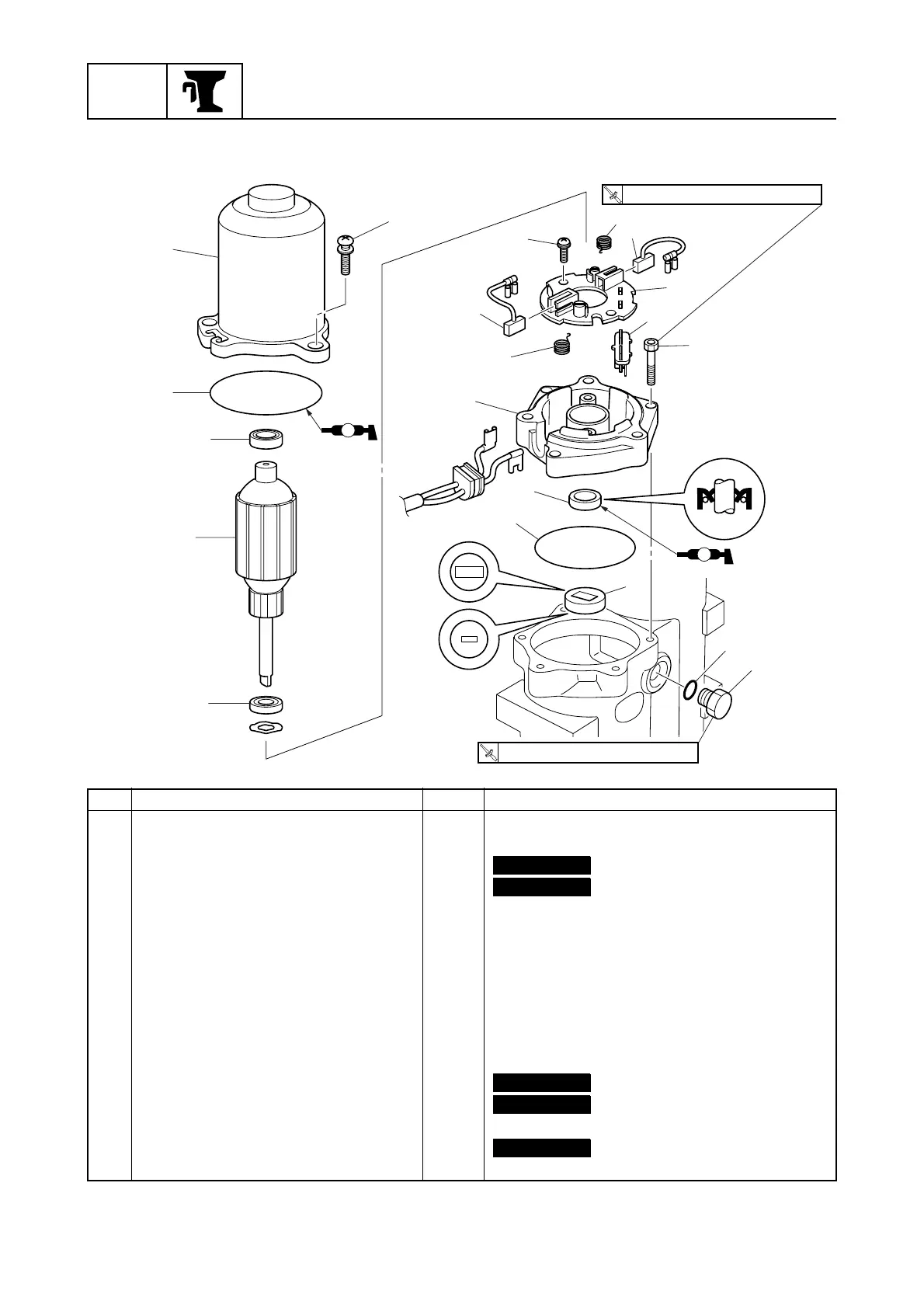

Power trim and tilt motor
7
No. Part name Q’ty Remarks
1Stator 1
2Screw 3 ø5
×
20 mm
3O-ring 1
Not reusable
4 Bearing 2
Not reusable
5 Armature 1
6Screw 2 ø4
×
10 mm
7Spring 2
8Brush 2
9 Circuit breaker 1
10 Brush holder 1
11 Bolt 3 M5
×
20 mm
12 PTT motor base 1
13 Oil seal 1
Not reusable
14 O-ring 1
Not reusable
15 Joint 1
16 O-ring 1
Not reusable
17 Reservoir cap 1
S6C17430
T
R
.
.
7 N
·
m (0.7 kgf
·
m, 5.2 ft
·
Ib)
AA
AA
1
2
3
4
5
4
7
6
8
9
11
7
8
T
R
.
.
4 N
·
m (0.4 kgf
·
m, 3.0 ft
·
Ib)
12
13
14
15
16
17
10
