Components
15
EMU2579J

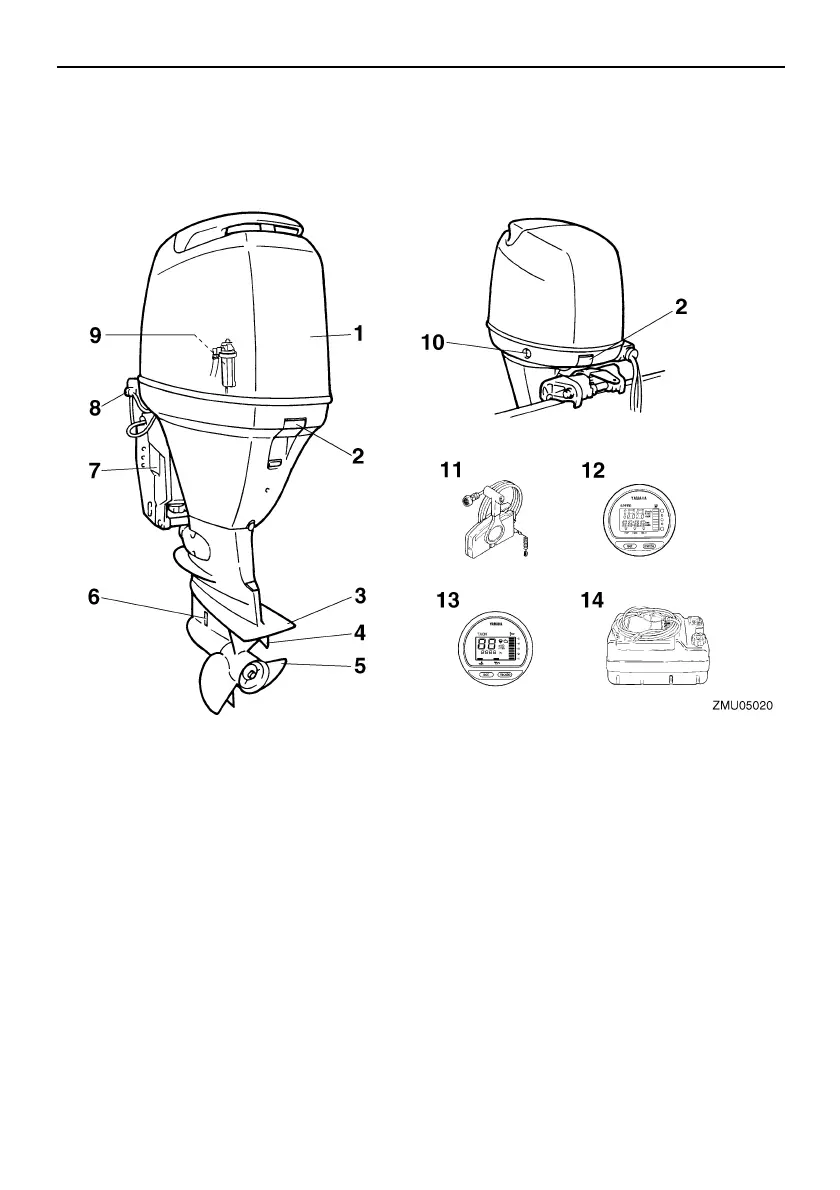

Components diagram
IP:
* May not be exactly as shown; also may not be included as standard equipment on all models.
F75B, F80B, F90B, F100D
1. Top cowling
2. Top cowling lock lever(s)
3. Anti-cavitation plate
4. Trim tab (anode)
5. Propeller*
6. Cooling water inlet
7. Clamp bracket
8. Flushing device
9. Water separator
10.Power trim and tilt switch
11.Remote control box (side mount type)*
12.Digital speedometer*
13.Digital tachometer*
14.Fuel tank*
