Yamaha F75B - Tilt Support Lever for Power Trim and Tilt Model; Top Cowling Lock Lever (Pull up Type)

Components
23
EMU26341

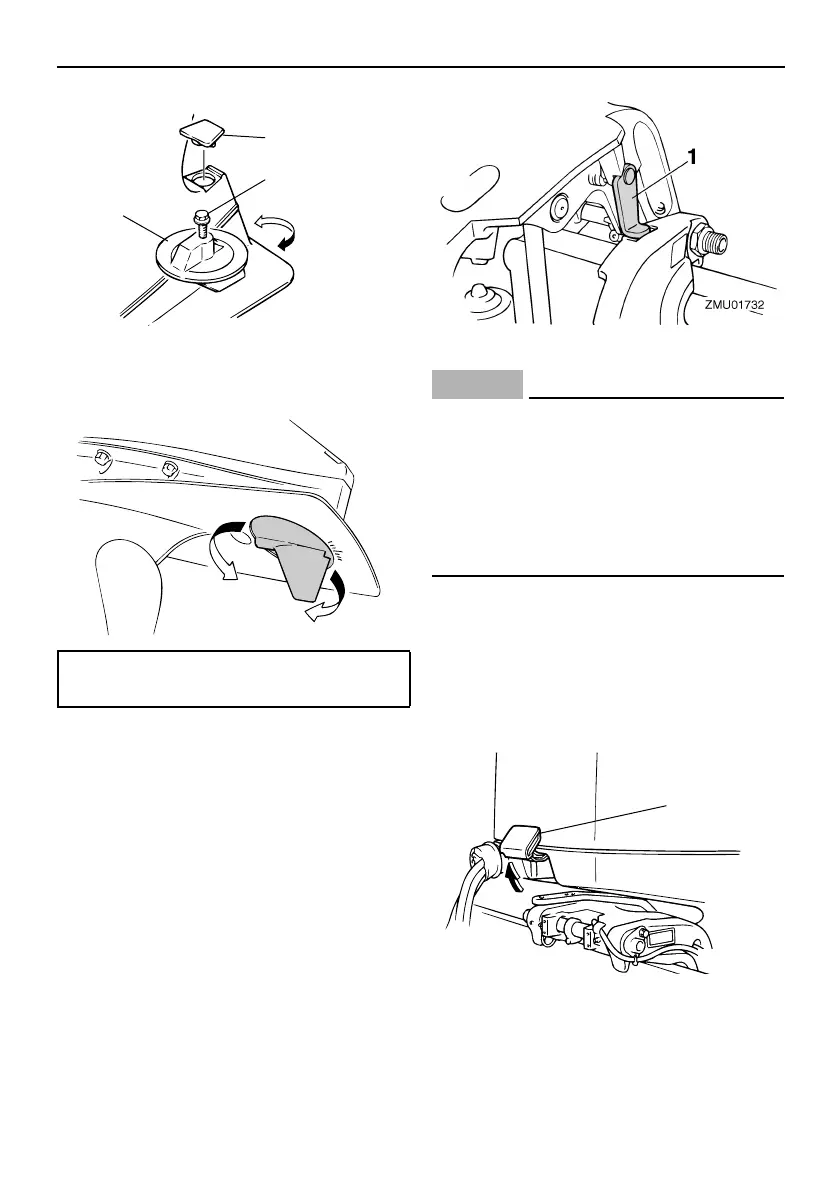

Tilt support lever for power trim and
tilt model
To keep the outboard motor in the tilted up po-
sition, lock the tilt support lever to the clamp
bracket.
NOTICE
ECM00660
Do not use the tilt support lever or knob
when trailering the boat. The outboard mo-
tor could shake loose from the tilt support
and fall. If the motor cannot be trailered in
the normal running position, use an addi-
tional support device to secure it in the tilt
position.
EMU26382
Top cowling lock lever (pull up type)
To remove the engine top cowling, pull up the
lock lever(s) and lift off the cowling. When in-
stalling the cowling, check to be sure it fits
properly in the rubber seal. Then lock the
cowling by moving the lever(s) downward.
1. Trim tab
2. Bolt
3. Cap
Bolt tightening torque:
35.0 Nm (3.57 kgf-m, 25.8 ft-lb)
1
2
3
ZMU02525
A
B
A
B
ZMU01863
1. Tilt support lever
1. Top cowling lock lever(s)
ZMU05347
1
